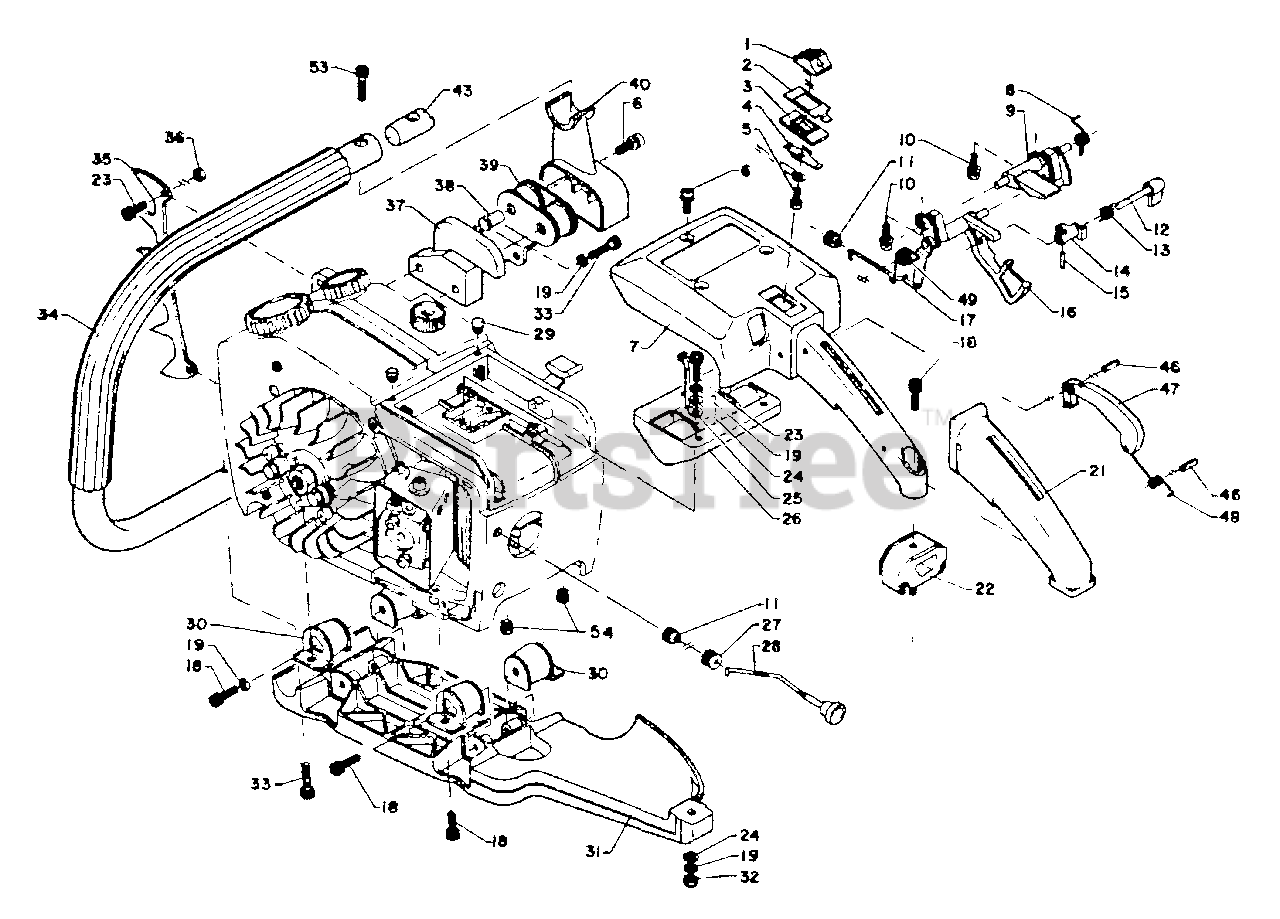

CS-702 VL - Echo Chainsaw Handle For Models CS-702VL and CS-602VL Parts Diagram

Chainsaw

Handle For Models CS-702VL and CS-602VL Parts Diagram

  • Title

1

Echo 16341002830

KNOB, SWITCH
(Superseded to Discontinued)

$

$

Not available

2

Echo 16341302830

PLATE - GROUND

$1.99

$

Usually ships in 2-4 days

0

3

Echo 16341102830

GUIDE, SWITCH

$3.99

$

Usually ships in 2-4 days

0

4

Echo 16341200630

CONTACT, SWITCH

$1.99

$

Usually ships in 2-4 days

0

5

Echo 90024204010

SCREW - 4X10

$0.99

$

In Stock, Qty 20+

0

6

Echo 90024205014

SCREW - 5X14

$0.99

$

In Stock, Qty 20+

0

7

Echo 35111010231

HANDLE - REAR
(Superseded to Discontinued)

$

$

Not available

8

Echo 70701703430

SPRING

$2.49

$

In Stock, only 4 left!

0

9

Echo 70700510230

Push lever
(Superseded to Discontinued)

$

$

Not available

10

Echo 90024204014

SCREW - 4X14

$0.99

$

In Stock, Qty 5

0

11

Echo 17881102830

GROMMET
(Superseded to Discontinued)

$

$

Not available

12

Echo 17800810230

LEVER, THROTTLE

$4.99

$

Usually ships in 2-4 days

0

13

Echo 17801303430

SPRING, LOCKOUT LEVER

$1.99

$

Usually ships in 2-4 days

0

14

Echo 17801211030

LOCKOUT, THROTTLE

$3.49

$

Usually ships in 2-4 days

0

15

Echo 90034016010

PIN - SPRING -- 1.6X10

$0.99

$

Usually ships in 2-4 days

0

16

Echo 17800510231

TRIGGER, THROTTLE
(Superseded to Discontinued)

$

$

Not available

17

Echo 17801110231

ROD, THROTTLE
(Superseded to Discontinued)

$

$

Not available

18

Echo 90016205015

SCREW - 5X15
(Superseded to Discontinued)

$

$

Not available

19

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, Qty 7

0

21

Echo 35111110231

COVER, HANDLE
(Superseded to Discontinued)

$

$

Not available

22

Echo 35110710231

CUSHION
(Superseded to 35110710232)

$

$

Not available

23

Echo 90010505012

SCREW - 5X12

$1.49

$

In Stock, only 2 left!

0

24

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

25

Echo 16201003431

LEAD - GROUND

$3.49

$

Usually ships in 2-4 days

0

26

Echo 35110510230

CUSHION
(Superseded to Discontinued)

$

$

Not available

27

Echo 17881000230

GROMMET

$2.49

$

Usually ships in 2-4 days

0

28

Echo 17851010230

ROD, CHOKE
(Superseded to Discontinued)

$

$

Not available

29

Echo 10025110230

CUSHION
(Superseded to 10025210230)

$0.99

$

Usually ships in 2-4 days

0

30

Echo 10091010231

CUSHION
(Superseded to 10091012730)

$

$

Not available

31

Echo 35161310231

BRACKET, HANDLE - LOWER

$91.99

$

Usually ships in 2-4 days

0

32

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

33

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

34

Echo 35160610231

HANDLE - FRONT
(Superseded to Discontinued)

$

$

Not available

35

Echo 88021002830

SPIKE
(Superseded to Discontinued)

$

$

Not available

36

Echo 43302000830

LOCKNUT - 5
(Superseded to 90056000005)

$1.49

$

In Stock, Qty 20+

0

37

Echo 35163110230

Cushion rubber holder
(Superseded to Discontinued)

$

$

Not available

38

Echo 35163710230

STOPPER

$1.49

$

Usually ships in 2-4 days

0

39

Echo 35160510231

Cushion rubber (L-U)
(Superseded to 35160512730)

$

$

Not available

40

Echo 35161410230

BRACKET, HANDLE - UPPER
(Superseded to Discontinued)

$

$

Not available

43

Echo 35161710230

SPACER

$4.49

$

Usually ships in 2-4 days

0

46

Echo 90034040016

PIN - SPRING -- 4X16
(Superseded to Discontinued)

$

$

Not available

47

Echo 17809011031

LOCKOUT, THROTTLE
(Superseded to Discontinued)

$

$

Not available

48

Echo 17809110531

SPRING, LOCKOUT LEVER

$2.49

$

Usually ships in 2-4 days

0

49

Echo 17804310230

SPRING, TRIGGER
(Superseded to 17804310231)

$

$

Not available

53

Echo 90016205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

54

Echo 10025210230

CUSHION

$0.99

$

Usually ships in 2-4 days

0
