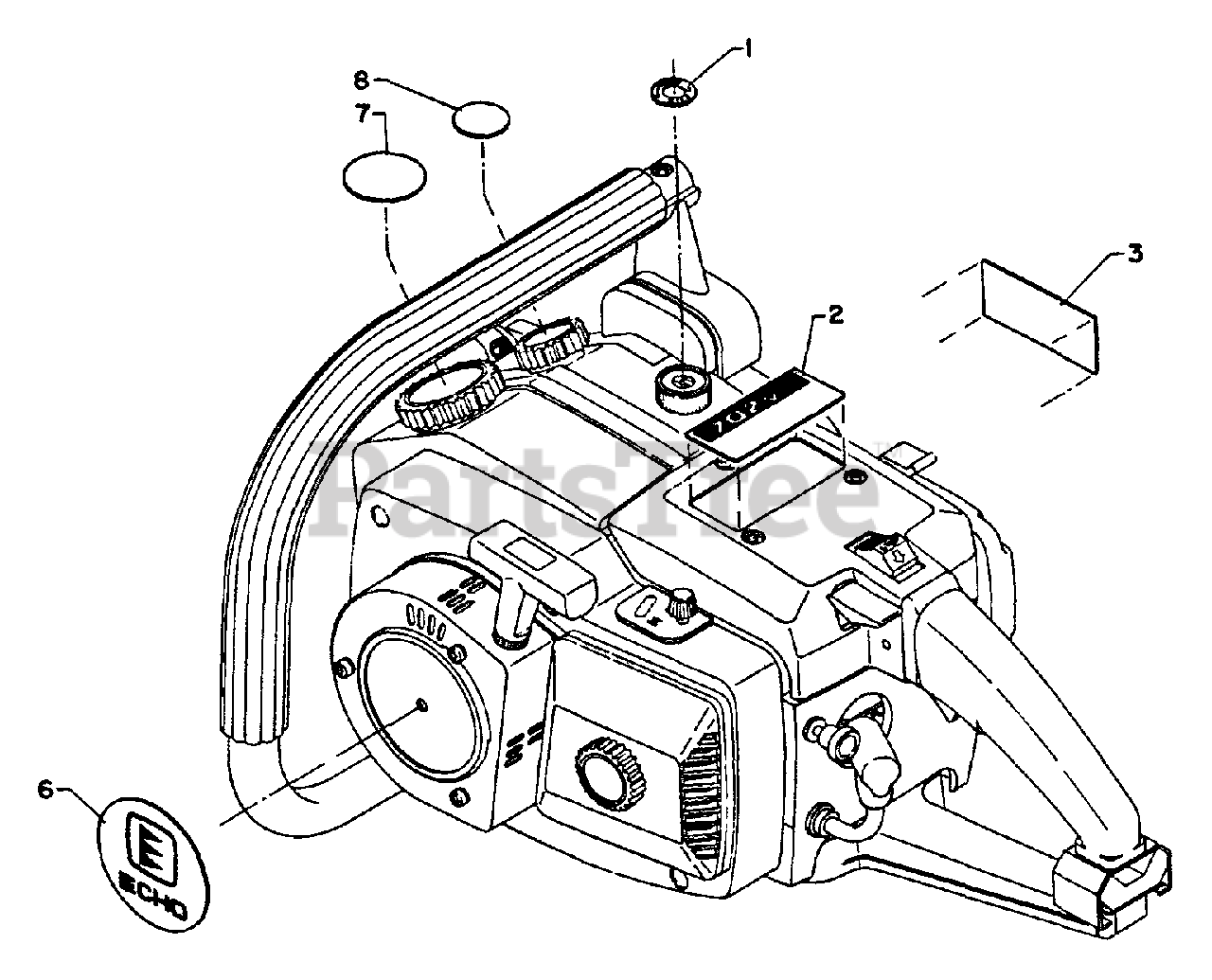

CS-702 VL - Echo Chainsaw Model Plate Parts Diagram

Engine: CS-702VL - air-cooled, 2-cycle, single-cylinder. Displacement: 70.7 cc (50 x 6 mm) = 4.3 cu in. Bore x stroke: 50 mm x 6 mm. Rotation: counter-clockwise (magneto side). Magneto: flywheel type. Ignition plug: NGK BM-6A. Diaphragm: Tillotson. Carburetor: Tillotson HS-166A. Fuel: 20:1 gasoline:oil. Cooling: forced air. Starting: recoil. Lubrication: manual/automatic oiler, chain oil. Clutch: automatic centrifugal. Fuel tank: 0.75 L (1.62 US pt). Oil tank: 0.3 L (0.75 US pt). Bar: 24 k50 / 60 m50. Chain: 3/8" pitch, 0.050" gauge. Weight: 7.5 kg (dry, bar/chain excluded).
