CS-702 VL - Echo Chainsaw Spark Arrester Muffler (Optional) Parts Diagram

Engine: CS-702VL - air-cooled, 2-cycle, single-cylinder. Displacement: 70.7 cc (50 x 6 mm) = 4.3 cu in. Bore x stroke: 50 mm x 6 mm. Rotation: counter-clockwise (magneto side). Magneto: flywheel type. Ignition plug: NGK BM-6A. Diaphragm: Tillotson. Carburetor: Tillotson HS-166A. Fuel: 20:1 gasoline:oil. Cooling: forced air. Starting: recoil. Lubrication: manual/automatic oiler, chain oil. Clutch: automatic centrifugal. Fuel tank: 0.75 L (1.62 US pt). Oil tank: 0.3 L (0.75 US pt). Bar: 24 k50 / 60 m50. Chain: 3/8" pitch, 0.050" gauge. Weight: 7.5 kg (dry, bar/chain excluded).

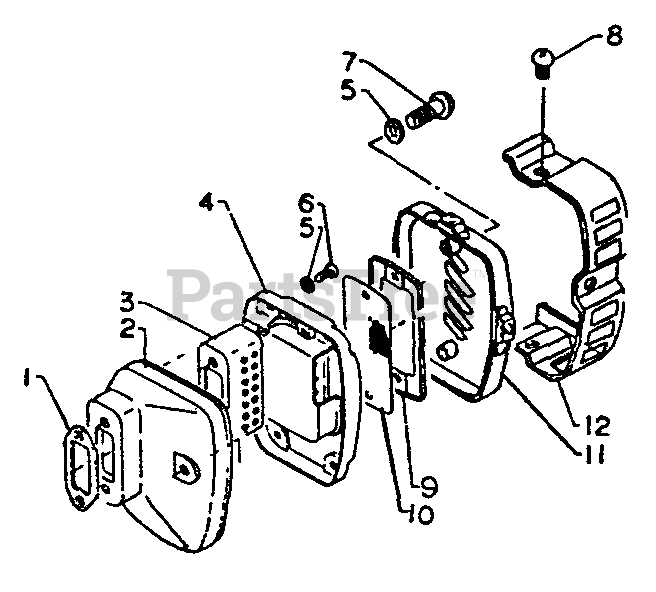

Spark Arrester Muffler (Optional) Parts Diagram

  • Title

1

Echo 14551003730

GASKET, EXHAUST
(Superseded to 14551003731)

$

$

Not available

2

Echo 14560503731

MUFFLER
(Superseded to Discontinued)

$

$

Not available

3

Echo 14561203730

BAFFLE, MUFFLER
(Superseded to Discontinued)

$

$

Not available

4

Echo 14580803730

LID, MUFFLER
(Superseded to Discontinued)

$

$

Not available

5

Echo 90061000005

WASHER, LOCK 5 MM

$0.99

$

Usually ships in 2-4 days

0

6

Echo 14564303730

SCREW 5×8
(Superseded to Discontinued)

$

$

Not available

7

Echo 14564310630

SCREW - 5×16

$0.99

$

Usually ships in 2-4 days

0

8

Echo 90024104006

SCREW 4×6

$0.99

$

Usually ships in 2-4 days

0

9

Echo 14596303431

RETAINER, SCREEN

$

$

Currently unavailable

10

Echo 14586203431

SCREEN, SPARK ARRESTER
(Superseded to Discontinued)

$

$

Not available

11

Echo 14590810230

LID, MUFFLER
(Superseded to 14590810231)

$23.99

$

Usually ships in 2-4 days

0

12

Echo 14587110230

COVER, MUFFLER

$17.99

$

Usually ships in 2-4 days

0

Echo 14580310230

MUFFLER ASSY
(Superseded to 14580310231)

Note: Consisting of Items 1 thru 12 above

$

$

Not available
