CS-7310 PW - Echo Chainsaw (SN: C99813001001 - C99813999999) Engine Parts Diagram

Chainsaw

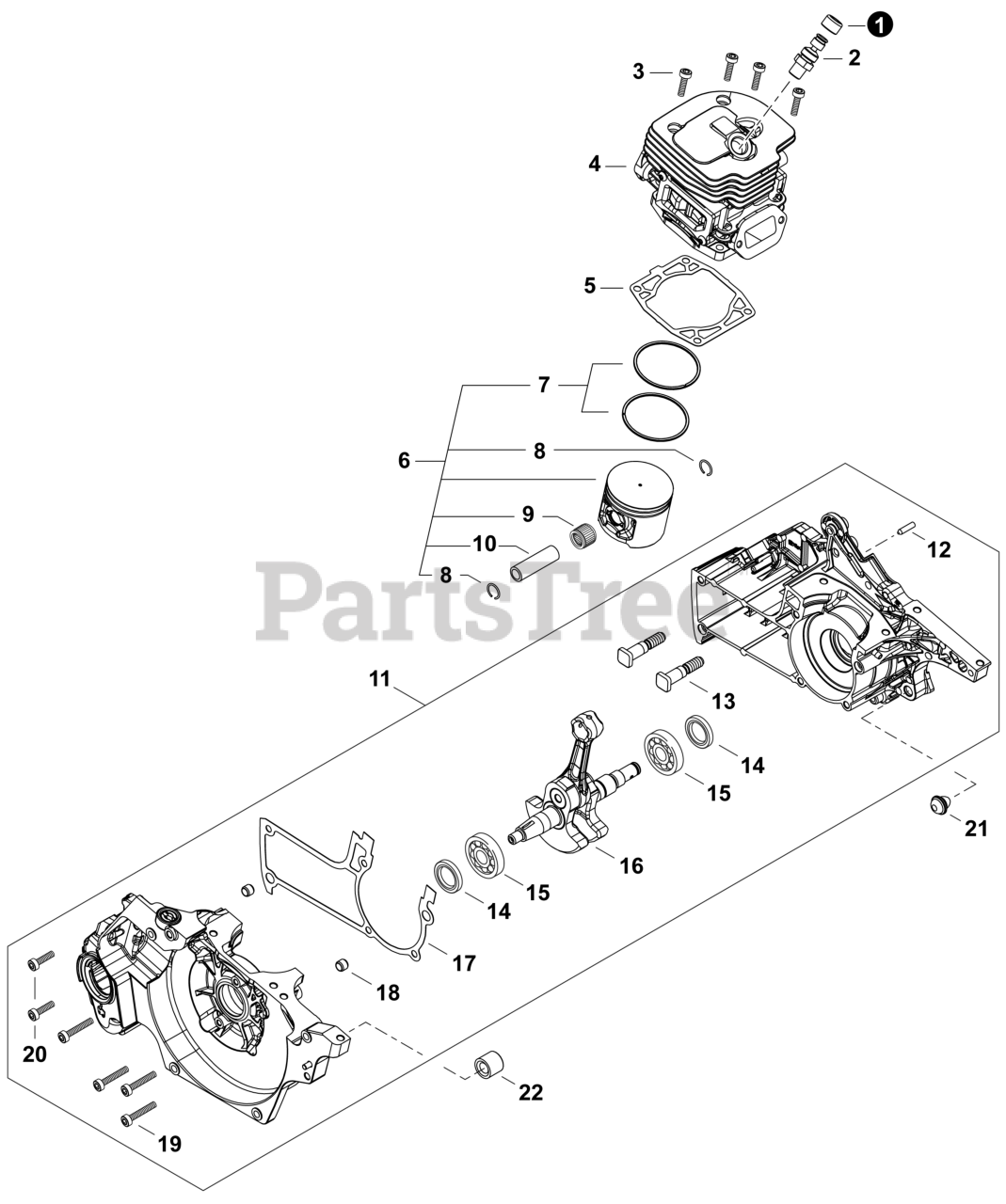

Engine Parts Diagram

  • Title

1

Echo V141000090

COVER, DUST

$6.49

$

In Stock, Qty 6

0

2

Echo A014000130

DECOMPRESSION ASSY

$36.99

$

In Stock, only 2 left!

0

3

Echo V805000220

BOLT, TORX 5x25

$1.99

$

In Stock, Qty 20+

0

4

Echo P100009400

CYLINDER ASSY

$236.99

$

Usually ships in 2-4 days

0

5

Echo V100000900

GASKET, CYLINDER

$3.49

$

In Stock, Qty 9

0

6

Echo P100009410

PISTON KIT

Note: Includes items 7-10

$66.99

$

Usually ships in 2-4 days

0

7

Echo A101000790

RING, PISTON

$16.99

$

In Stock, only 1 left!

0

8

Echo V580000000

RING, SNAP

$0.99

$

Usually ships in 2-4 days

0

9

Echo V557000080

BEARING, NEEDLE 12

$12.99

$

Usually ships in 2-4 days

0

10

Echo V610000040

PIN, PISTON 12

$7.49

$

Usually ships in 2-4 days

0

11

Echo P100010230

CRANKCASE KIT

Note: Includes items 12-20

$306.99

$

Usually ships in 2-4 days

0

12

Echo A356000120

VENT ASSY

$3.49

$

In Stock, only 2 left!

0

13

Echo V225000380

BOLT, STUD 8

$8.49

$

In Stock, only 2 left!

0

14

Echo V508000140

SEAL, OIL 15

$6.49

$

Usually ships in 2-4 days

0

15

Echo 9403646202

BEARING, BALL 6202

$11.99

$

In Stock, only 2 left!

0

16

Echo A011001630

CRANKSHAFT ASSY

$220.99

$

Usually ships in 2-4 days

0

17

Echo V102000350

GASKET, CRANKCASE

$4.49

$

Usually ships in 2-4 days

0

18

Echo 10152216430

COLLAR 6

$3.49

$

Usually ships in 2-4 days

0

19

Echo V805000290

BOLT, TORX 5x35

$1.49

$

In Stock, only 3 left!

0

20

Echo V805000220

BOLT, TORX 5x25

$1.99

$

In Stock, Qty 20+

0

21

Echo V420005590

CUSHION

$0.99

$

Usually ships in 2-4 days

0

22

Echo V420005600

CUSHION

$3.49

$

Usually ships in 2-4 days

0
