CS-750 EVL - Echo Chainsaw Carburetor Parts Diagram

Dimensions: 415x305x305 mm; Weight: 18.7 lb (8.5 lb without bar/chain); Engine: air-cooled 2-stroke, 78.6 cc, Walbro diaphragm carburetor, magneto/DI 0.02 F; Spark plug: NGK BPM7A/Champion CJ-6Y; Starter: recoil; Fuel: 1:32-1:50 two-stroke mix, 0.72 L tank; Chain oil: 0.32 L; Guide bar: 20 in, separate; Chain: asymmetrical low-kick 24� links (7930/7931); Features: hand guards, throttle lock, anti-vibration latch, chain catcher, optional chain brake (CS-750EVLP).

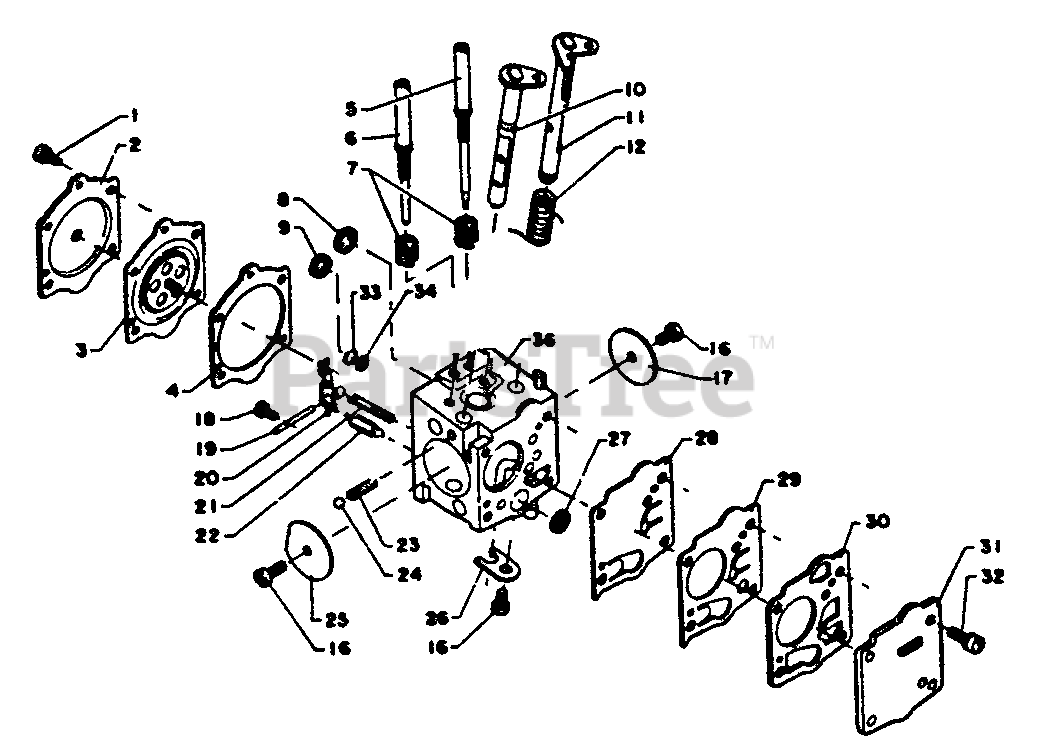

Carburetor Parts Diagram

  • Title

Echo 12300012431

CARBURETOR
(Superseded to Discontinued)

Note: Consists of 1 thru 12 and 16 thru 36

$

$

Not available

1

Echo 12314403930

SCREW

$0.99

$

Usually ships in 2-4 days

0

2

Echo 12314212430

COVER, DIAPHRAGM
(Superseded to Discontinued)

$

$

Not available

3

Echo 12314112430

DIAPHRAGM, METERING
(Superseded to Discontinued)

$

$

Not available

4

Echo 12314010630

GASKET, METERING DIAPHRAGM

$2.49

$

Usually ships in 2-4 days

0

5

Echo 12311812430

NEEDLE, IDLE

$3.99

$

Usually ships in 2-4 days

0

6

Echo 12312012430

NEEDLE, HIGH SPEED

$4.49

$

Usually ships in 2-4 days

0

7

Echo 12311903930

SPRING, NEEDLE

$1.49

$

In Stock, only 4 left!

0

8

Echo 12314510630

PLUG, WELCH

$1.99

$

Usually ships in 2-4 days

0

9

Echo 12314610630

PLUG, WELCH
(Superseded to 12314610631)

$1.99

$

In Stock, only 1 left!

0

10

Echo 12313112430

SHAFT, CHOKE
(Superseded to Discontinued)

$

$

Not available

11

Echo 12311712430

SHAFT, THROTTLE

$5.99

$

Usually ships in 2-4 days

0

12

Echo 12311312430

SPRING

$1.49

$

Usually ships in 2-4 days

0

16

Echo 12311410630

SCREW

$0.99

$

Usually ships in 2-4 days

0

17

Echo 12311610630

VALVE, THROTTLE
(Superseded to Discontinued)

$

$

Not available

18

Echo 12313903930

SCREW, METERING LEVER PIN

$6.99

$

Usually ships in 2-4 days

0

19

Echo 12313810630

PIN, METERING LEVER
(Superseded to Discontinued)

$

$

Not available

20

Echo 12312310630

LEVER, METERING
(Superseded to Discontinued)

$

$

Not available

21

Echo 12312210630

SPRING

$1.99

$

Usually ships in 2-4 days

0

22

Echo 12313703930

VALVE, INLET NEEDLE
(Superseded to Discontinued)

$

$

Not available

23

Echo 12313510631

SPRING, CHOKE
(Superseded to Discontinued)

$

$

Not available

24

Echo 12313610631

BALL, CHOKE
(Superseded to Discontinued)

$

$

Not available

25

Echo 12313210630

VALVE, CHOKE
(Superseded to Discontinued)

$

$

Not available

26

Echo 12312710631

RING, RETAINING
(Superseded to Discontinued)

$

$

Not available

27

Echo 12312610630

STRAINER

$1.99

$

Usually ships in 2-4 days

0

28

Echo 12311210630

DIAPHRAGM, FUEL PUMP

$9.49

$

Usually ships in 2-4 days

0

29

Echo 12311110630

DIAPHRAGM, CHECK VALVE

$9.49

$

Usually ships in 2-4 days

0

30

Echo 12312512430

GASKET, FUEL PUMP
(Superseded to Discontinued)

$

$

Not available

31

Echo 12312412430

COVER, PUMP
(Superseded to Discontinued)

$

$

Not available

32

Echo 12311010630

SCREW
(Superseded to Discontinued)

$

$

Not available

33

Echo 12316910630

RING, RETAINING

$1.49

$

Usually ships in 2-4 days

0

34

Echo 12316810630

SCREEN, CHECK VALVE

$2.49

$

Usually ships in 2-4 days

0

36

BODY, CARBURETOR

Note: NOT AVAILABLE SEPARATELY

$

$

Not available
