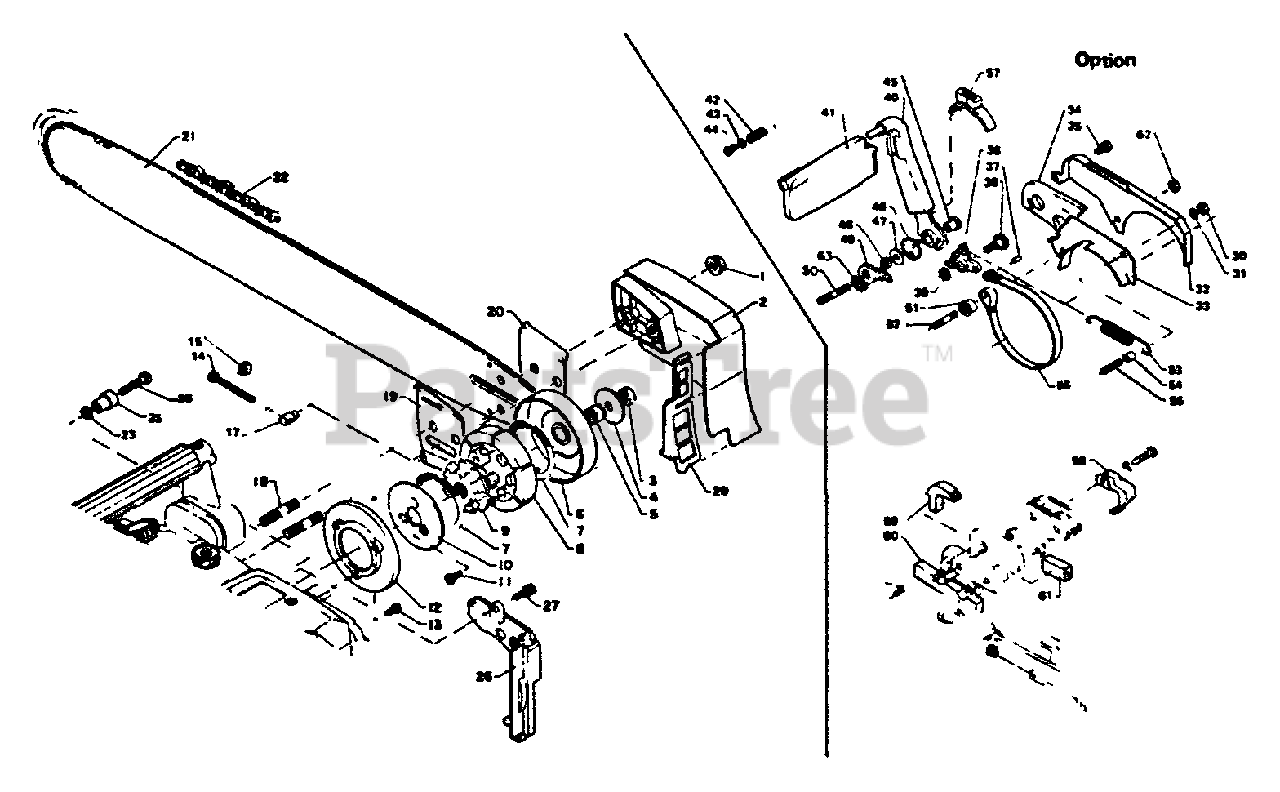

CS-750 EVL - Echo Chainsaw Clutch, Cutting Attch, Chain Brake Parts Diagram

Chainsaw

Clutch, Cutting Attch, Chain Brake Parts Diagram

  • Title

1

Echo 43301912330

NUT - FLANGE
(Superseded to V265000200)

$1.99

$

In Stock, Qty 20+

0

2

Echo 43301012431

GUARD, SPROCKET
(Superseded to Discontinued)

$

$

Not available

3

Echo 10012903430

LOCKNUT
(Superseded to 61032003830)

$4.49

$

In Stock, Qty 12

0

4

Echo 17501503430

WASHER, CLUTCH

$2.49

$

Usually ships in 2-4 days

0

5

Echo 10001212330

BEARING, NEEDLE
(Superseded to 10001212331)

$10.99

$

In Stock, Qty 11

0

6

Echo 17500512130

DRUM, CLUTCH
(Superseded to 17500512131)

$

$

Not available

Echo 17500010231

CLUTCH ASSY
(Superseded to Discontinued)

Note: Consisting Of 7 Thru 11

$

$

Not available

7

Echo 17501810231

SPRING, CLUTCH
(Superseded to Discontinued)

$

$

Not available

8

Echo 17501700430

SHOE, CLUTCH

$11.99

$

In Stock, only 1 left!

0

9

Echo 17501610230

HUB, CLUTCH
(Superseded to Discontinued)

$

$

Not available

10

Echo 17501910231

PLATE, CLUTCH

$9.99

$

Usually ships in 2-4 days

0

11

Echo 90021205012

SCREW - 5X12
(Superseded to 90021805012)

$0.99

$

Usually ships in 2-4 days

0

12

Echo 17531012130

SEAL, DUST

$4.99

$

Usually ships in 2-4 days

0

13

Echo 90024104010

SCREW - 4X10
(Superseded to 90024204010)

$0.99

$

In Stock, Qty 20+

0

14

Echo 43301611031

SCREW, TENSIONER

$4.49

$

In Stock, Qty 20+

0

15

Echo 43302811030

CLIP

$0.99

$

In Stock, Qty 14

0

17

Echo 43301402830

TENSIONER, CHAIN

$4.99

$

In Stock, Qty 20+

0

18

Echo 43301100330

STUD, GUIDE BAR
(Superseded to Discontinued)

Note: S/N 001001 - 017733

$

$

Not available

18

Echo 43301112330

STUD, GUIDE BAR

Note: S/N 0117734 & up

$2.49

$

In Stock, only 4 left!

0

19

Echo 43301312332

PLATE, GUIDE - INNER

$6.49

$

In Stock, only 2 left!

0

20

Echo 43301212332

PLATE, GUIDE - OUTER

$6.49

$

In Stock, only 3 left!

0

21

------------------

GUIDE BAR

$

$

Not available

22

------------------

Chain

$

$

Not available

23

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

25

Echo 43300612830

CATCHER, CHAIN
(Superseded to 43300012830)

$

$

Not available

26

Echo 43313812130

ADAPTOR
(Superseded to Discontinued)

$

$

Not available

27

Echo 90024205014

SCREW - 5X14

$0.99

$

In Stock, Qty 20+

0

28

Echo 90022005025

SCREW - 5X25

$0.99

$

In Stock, Qty 5

0

29

Echo 43302512430

PAD
(Superseded to Discontinued)

$

$

Not available

Echo 43310012131

CHAIN BRAKE ASSY
(Superseded to 43310012132)

Note: Consisting Of 30 Thru 63. Optional Item

$

$

Not available

30

Echo 90050000005

NUT - 5

Note: OPTIONAL

$0.99

$

In Stock, Qty 20+

0

31

Echo 90060500005

LOCKWASHER - 5

Note: OPTIONAL

$0.99

$

In Stock, only 4 left!

0

32

Echo 43331012130

COVER, BRAKE
(Superseded to Discontinued)

Note: OPTIONAL

$

$

Not available

33

Echo 43331112130

COVER, BRAKE - INNER

Note: OPTIONAL

$4.49

$

Usually ships in 2-4 days

0

34

Echo 43331312130

SEAL
(Superseded to Discontinued)

Note: OPTIONAL

$

$

Not available

35

Echo 90022005008

SCREW - 5X8

Note: OPTIONAL

$0.99

$

In Stock, Qty 12

0

36

Echo 43311911030

LEVER, BRAKE
(Superseded to Discontinued)

Note: OPTIONAL

$

$

Not available

37

Echo 90034040008

PIN - SPRING -- 4X8

Note: OPTIONAL

$0.99

$

Usually ships in 2-4 days

0

38

Echo 43312011030

BOLT
(Superseded to Discontinued)

Note: OPTIONAL

$

$

Not available

39

Echo 90060000006

WASHER - 6

Note: OPTIONAL

$0.99

$

In Stock, Qty 20+

0

39

Echo 43320112131

BRAKE LEVER ASSY

Note: Consisting Of 40 Thru 44. Optional Item

$39.99

$

Usually ships in 2-4 days

0

40

Echo 43310512132

HANDLE, BRAKE
(Superseded to Discontinued)

Note: OPTIONAL

$

$

Not available

41

Echo 43314511130

HANDLE, BRAKE - B
(Superseded to 43314512730)

Note: OPTIONAL

$

$

Not available

42

Echo 43314611130

SPRING
(Superseded to Discontinued)

Note: OPTIONAL

$

$

Not available

43

Echo 90060200004

WASHER - 4

Note: OPTIONAL

$0.99

$

Usually ships in 2-4 days

0

44

Echo 90022004010

SCREW - 4X10

Note: OPTIONAL

$0.99

$

Usually ships in 2-4 days

0

45

Echo 43313711030

NUT
(Superseded to Discontinued)

Note: OPTIONAL

$

$

Not available

46

Echo 43311412130

SPRING, RETURN
(Superseded to Discontinued)

Note: OPTIONAL

$

$

Not available

47

Echo 43311512130

WASHER
(Superseded to Discontinued)

Note: OPTIONAL

$

$

Not available

48

Echo 43311611030

SPACER
(Superseded to Discontinued)

Note: OPTIONAL

$

$

Not available

49

Echo 43311711030

CONNECTOR
(Superseded to Discontinued)

Note: OPTIONAL

$

$

Not available

50

Echo 43311312130

STUD
(Superseded to Discontinued)

Note: OPTIONAL

$

$

Not available

51

Echo 43314211030

ADJUSTER, BRAKE BAND

Note: OPTIONAL

$0.99

$

Usually ships in 2-4 days

0

52

Echo 13071214730

STUD
(Superseded to Discontinued)

Note: OPTIONAL

$

$

Not available

53

Echo 43312212130

SPRING
(Superseded to 43312212131)

Note: OPTIONAL

$

$

Not available

54

Echo 43314011030

COLLAR
(Superseded to Discontinued)

Note: OPTIONAL

$

$

Not available

55

Echo 43313912130

STUD
(Superseded to Discontinued)

Note: OPTIONAL

$

$

Not available

56

Echo 43312312130

BAND, BRAKE

Note: OPTIONAL

$7.99

$

Usually ships in 2-4 days

0

57

Echo 43331212130

COVER, BRAKE
(Superseded to Discontinued)

Note: OPTIONAL

$

$

Not available

58

Echo 43313512130

SEAL
(Superseded to Discontinued)

Note: OPTIONAL

$

$

Not available

59

Echo 43331412130

SEAL
(Superseded to Discontinued)

Note: OPTIONAL

$

$

Not available

60

Echo 43331512130

SEAL
(Superseded to Discontinued)

Note: OPTIONAL

$

$

Not available

61

Echo 43331612130

SEAL
(Superseded to Discontinued)

Note: OPTIONAL

$

$

Not available

62

Echo 43302202830

LOCKNUT - 5
(Superseded to 90056200005)

Note: OPTIONAL

$1.49

$

In Stock, only 3 left!

0

63

Echo 43312112730

STOPPER
(Superseded to Discontinued)

Note: OPTIONAL

$

$

Not available
