CS-750 EVL - Echo Chainsaw Handles Parts Diagram

Chainsaw

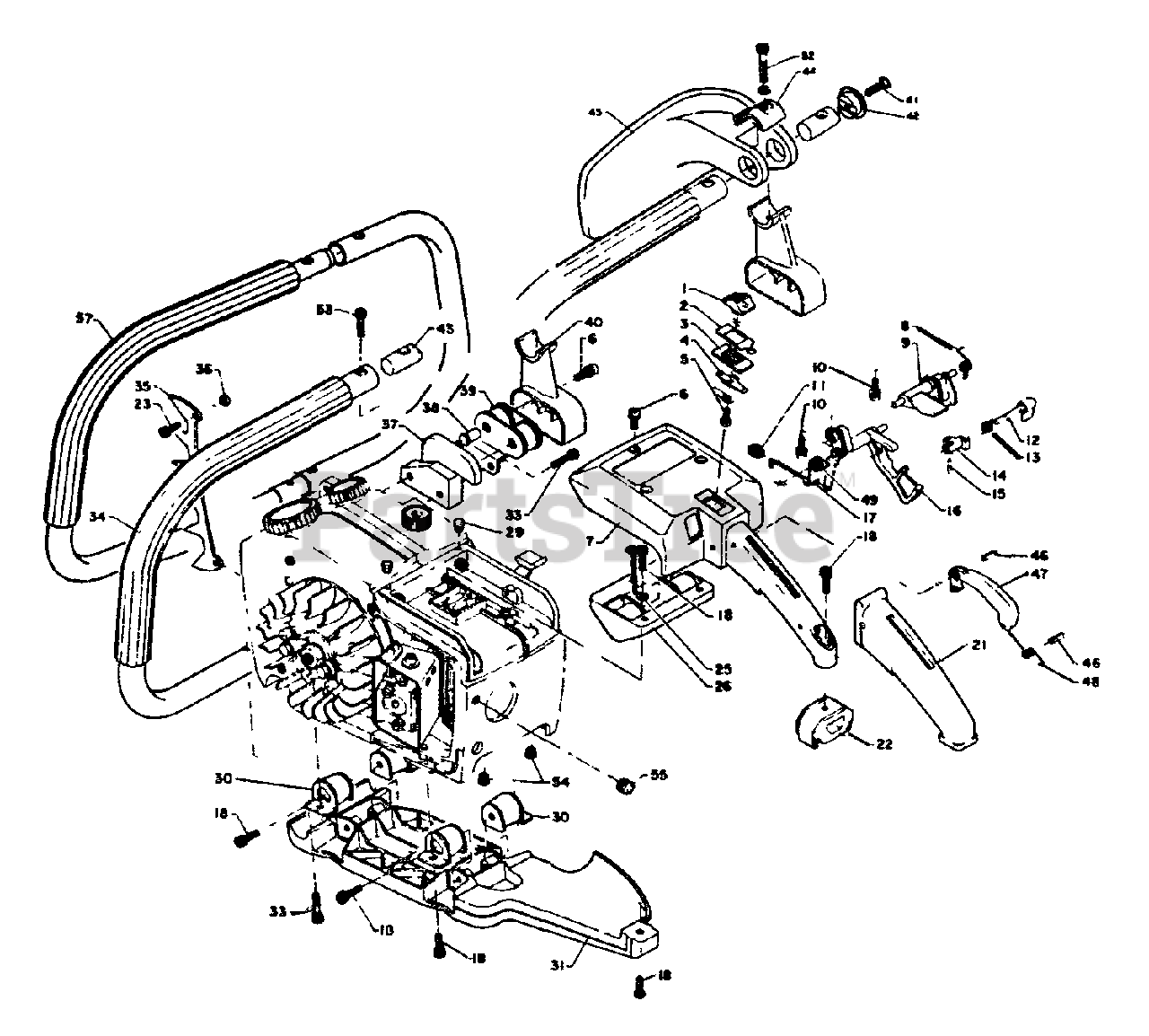

Handles Parts Diagram

  • Title

1

Echo 16341002830

SWITCH, IGNITION
(Superseded to Discontinued)

$

$

Not available

2

Echo 16341302830

PLATE, SWITCH

$1.99

$

Usually ships in 2-4 days

0

3

Echo 16341102830

GUIDE, SWITCH

$3.99

$

Usually ships in 2-4 days

0

4

Echo 16341200630

CONTACT, SWITCH

$1.99

$

Usually ships in 2-4 days

0

5

Echo 90024104010

SCREW - 4×10
(Superseded to 90024204010)

$0.99

$

In Stock, Qty 20+

0

6

Echo 900242-05014

SCREW 5×14

$0.99

$

In Stock, Qty 20+

0

7

Echo 35111010231

HANDLE, REAR
(Superseded to Discontinued)

$

$

Not available

8

Echo 70701703430

SPRING

$2.49

$

In Stock, only 4 left!

0

9

Echo 70700510230

PUSH LEVER
(Superseded to Discontinued)

$

$

Not available

10

Echo 900242-04014

SCREW 4×14

$0.99

$

In Stock, Qty 5

0

11

Echo 17821100330

GROMMET

$2.49

$

Usually ships in 2-4 days

0

12

Echo 17800810230

LEVER, THROTTLE

$4.99

$

Usually ships in 2-4 days

0

13

Echo 17801303430

SPRING, THROTTLE LOCK

$1.99

$

Usually ships in 2-4 days

0

14

Echo 17801211030

LOCKOUT, TRIGGER

$3.49

$

Usually ships in 2-4 days

0

15

Echo 90034016010

PIN, SPRING 16×10

$0.99

$

Usually ships in 2-4 days

0

16

Echo 17800510231

TRIGGER, THROTTLE
(Superseded to Discontinued)

$

$

Not available

17

Echo 17801112430

ROD, THROTTLE
(Superseded to Discontinued)

$

$

Not available

18

Echo 90016205014

BOLT 5×14

$1.49

$

In Stock, Qty 7

0

21

Echo 35111110231

RIGHT HANDLE RUBBER
(Superseded to Discontinued)

$

$

Not available

22

Echo 35110710232

CUSHION
(Superseded to Discontinued)

$

$

Not available

23

Echo 90010505012

BOLT 5×12

$1.49

$

In Stock, only 3 left!

0

25

Echo 16201003431

LEAD - GROUND

$3.49

$

Usually ships in 2-4 days

0

26

Echo 35110510230

CUSHION
(Superseded to Discontinued)

$

$

Not available

29

Echo 10025110230

CUSHION, RUBBER
(Superseded to 10025210230)

$0.99

$

Usually ships in 2-4 days

0

30

Echo 10091010231

CUSHION
(Superseded to 10091012730)

$

$

Not available

31

Echo 35161310231

SUPPORT, HANDLE

$91.99

$

Usually ships in 2-4 days

0

33

Echo 90016205020

BOLT 5×20

$1.49

$

In Stock, Qty 20+

0

34

Echo 35160610231

HANDLE, FRONT
(Superseded to Discontinued)

$

$

Not available

35

Echo 88021002830

BUMPER, SPIKED
(Superseded to Discontinued)

$

$

Not available

36

Echo 433020-00830

LOCKNUT - 5
(Superseded to 90056000005)

$1.49

$

In Stock, Qty 14

0

37

Echo 35163112130

SUPPORT

$16.99

$

In Stock, only 1 left!

0

38

Echo 35163710230

STOPPER

$1.49

$

Usually ships in 2-4 days

0

39

Echo 35160510231

CUSHION RUBBER (L-U)
(Superseded to 35160512730)

$

$

Not available

40

Echo 35161411930

BRACKET, HANDLE - UPPER
(Superseded to 35161411931)

$17.99

$

Usually ships in 2-4 days

0

41

Echo 90021445016

SCREW - 5×16

$

$

Currently unavailable

42

Echo 35183310230

RETAINER, GUARD
(Superseded to Discontinued)

$

$

Not available

43

Echo 35161710230

SPACER, HANDLE

$4.49

$

Usually ships in 2-4 days

0

44

Echo 35183410230

STOPPER

$2.99

$

Usually ships in 2-4 days

0

45

Echo 35182610230

GUARD
(Superseded to Discontinued)

$

$

Not available

46

Echo 90034040016

PIN, SPRING 4×16
(Superseded to Discontinued)

$

$

Not available

47

Echo 17809011031

LOCKOUT, THROTTLE
(Superseded to Discontinued)

$

$

Not available

48

Echo 17809110531

SPRING, LOCKOUT RETURN

$2.49

$

In Stock, only 1 left!

0

49

Echo 17804310231

SPRING, THROTTLE
(Superseded to Discontinued)

$

$

Not available

52

Echo 90016205035

BOLT M5×35

$1.99

$

In Stock, Qty 16

0

54

Echo 10025210230

CUSHION

$0.99

$

Usually ships in 2-4 days

0

55

Echo 10157812430

PLUG
(Superseded to Discontinued)

$

$

Not available

53

Echo 90016205025

BOLT 5×25

Note: OPTIONAL

$0.99

$

In Stock, Qty 20+

0

Echo 35140010331

HANDLE

Note: Includes ITEMS 56-57 OPTIONAL

$200.99

$

Usually ships in 2-4 days

0

56

Echo 35140710331

LOOP HANDLE, R
(Superseded to Discontinued)

Note: OPTIONAL

$

$

Not available

57

Echo 35140510330

LOOP HANDLE, L
(Superseded to Discontinued)

Note: OPTIONAL

$

$

Not available
