CS-800 P - Echo Chainsaw (SN: C68715001001 - C68715999999) Chain Brake Parts Diagram

Chainsaw

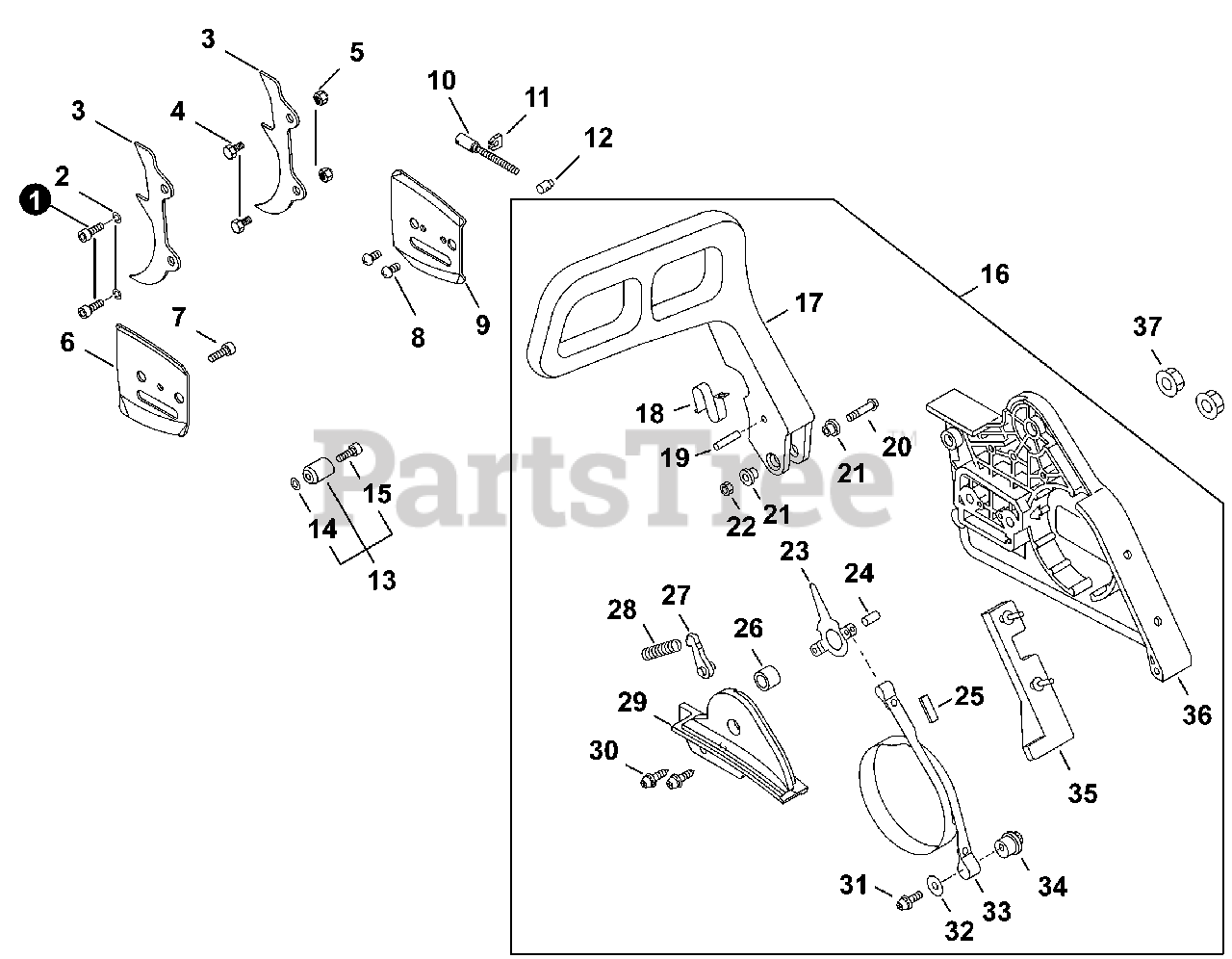

Chain Brake Parts Diagram

  • Title

1

Echo 90010506020

BOLT 6×20

$1.49

$

In Stock, Qty 18

0

2

Echo 90060500006

WASHER, SPRING 6

$0.99

$

In Stock, Qty 17

0

3

Echo 88021030830

SPIKE, BUMPER

$9.49

$

In Stock, only 2 left!

0

4

Echo 88021131730

BOLT

$1.49

$

In Stock, Qty 12

0

5

Echo 90056000006

NUT, LOCK 6

$1.49

$

In Stock, Qty 20+

0

6

Echo 43301330830

PLATE, GUIDE - INNER

$5.49

$

In Stock, only 4 left!

0

7

Echo 90024104008

SCREW 4×8

$0.99

$

In Stock, Qty 11

0

8

Echo 90024103006

SCREW 3×6

$0.99

$

In Stock, Qty 11

0

9

Echo 43301230830

PLATE, GUIDE - OUTER

$5.49

$

In Stock, Qty 5

0

10

Echo 43301611031

SCREW, ADJUSTER

$4.49

$

In Stock, Qty 20+

0

11

Echo 43302811030

CLIP

$0.99

$

In Stock, Qty 14

0

12

Echo 43301402830

TENSIONER, CHAIN

$4.99

$

In Stock, Qty 20+

0

13

Echo P021042201

CHAIN CATCHER KIT
(Superseded to P021042202)

Note: Includes Items 14-15

$3.99

$

In Stock, only 1 left!

0

14

Echo 90060000005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

15

Echo 90016205020

BOLT 5×20

$1.49

$

In Stock, Qty 20+

0

16

Echo P021007312

BRAKE ASSY, CHAIN

Note: Includes Items 17-36

$145.99

$

Usually ships in 2-4 days

0

17

Echo 43310560830

LEVER, BRAKE

$72.99

$

In Stock, only 1 left!

0

18

Echo 43311438331

SPRING, FLAT

$6.99

$

Usually ships in 2-4 days

0

19

Echo 90033035260

PIN 3.5×26

$0.99

$

In Stock, Qty 7

0

20

Echo 9133505035

SCREW

$0.99

$

Usually ships in 2-4 days

0

21

Echo 43316739130

COLLAR 5.3×10×13×L5

$2.99

$

In Stock, Qty 20+

0

22

Echo 90056250005

NUT, LOCK M5

$0.99

$

In Stock, Qty 20+

0

23

Echo 43320835431

LEVER, BRAKE

$19.99

$

Usually ships in 2-4 days

0

24

Echo 90033040088

PIN, SPRING 4×8.8

$1.49

$

In Stock, only 3 left!

0

25

Echo 43331232630

SEAL, BRAKE

$1.49

$

In Stock, Qty 7

0

26

Echo 43311538330

WASHER 5.2×12×14

$1.49

$

Usually ships in 2-4 days

0

27

Echo 43320935430

STOPPER, BRAKE

$4.99

$

Usually ships in 2-4 days

0

28

Echo 43312238130

SPRING, BRAKE

$6.99

$

Usually ships in 2-4 days

0

29

Echo 43331060830

COVER, BRAKE

$7.99

$

Usually ships in 2-4 days

0

30

Echo 90023804010

SCREW 4×10

$0.99

$

In Stock, Qty 20+

0

31

Echo 90023805025

SCREW 5×25

$0.99

$

In Stock, Qty 20+

0

32

Echo 35124906960

WASHER

$0.99

$

In Stock, Qty 15

0

33

Echo 43312360830

BAND, BRAKE

$31.99

$

In Stock, only 1 left!

0

34

Echo 43314260830

ADJUSTER, BRAKE

$8.49

$

In Stock, only 1 left!

0

35

Echo 43302560830

CUSHION

$11.99

$

Usually ships in 2-4 days

0

36

Echo 43301060830

GUARD, SPROCKET

$58.99

$

Usually ships in 2-4 days

0

37

Echo V265000200

NUT 8

$1.99

$

In Stock, Qty 20+

0
