CS-800 P - Echo Chainsaw (SN: C68715001001 - C68715999999) Recoil Starter Parts Diagram

Chainsaw

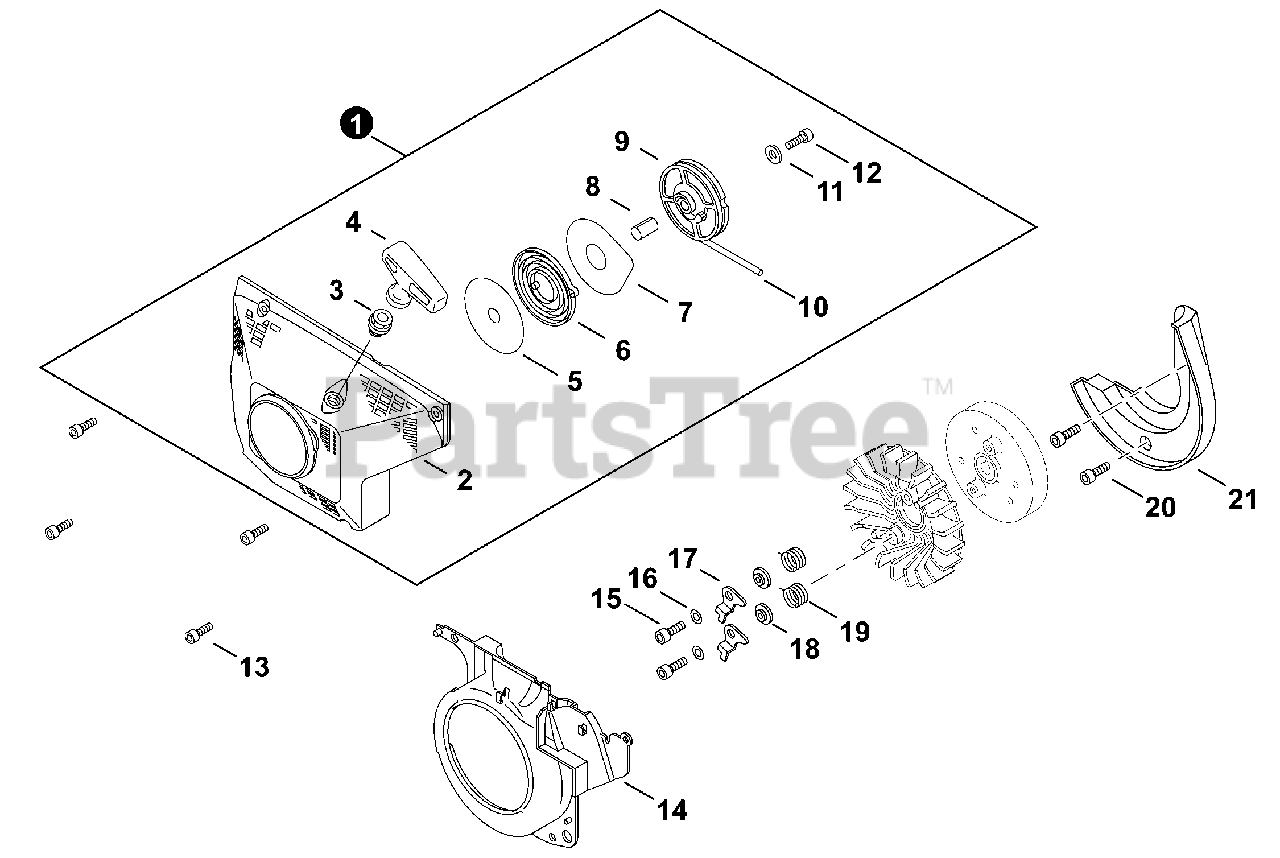

Recoil Starter Parts Diagram

  • Title

1

Echo P021042240

STARTER ASSY
(Superseded to P021042241)

Note: Includes Items 2-12

$134.99

$

Usually ships in 2-4 days

0

2

Echo 10150730831

CASE, RECOIL STARTER

$69.99

$

Usually ships in 2-4 days

0

3

Echo 17722707060

GUIDE, ROPE

$17.99

$

Usually ships in 2-4 days

0

4

Echo 17722830830

GRIP, STARTER
(Superseded to 17722830832)

$5.99

$

Usually ships in 2-4 days

0

5

Echo 17722102830

PLATE, STARTER

$5.99

$

In Stock, Qty 12

0

6

Echo 17722002834

SPRING, RECOIL

$21.99

$

In Stock, Qty 17

0

7

Echo 17724230830

PLATE, STARTER

$4.49

$

Usually ships in 2-4 days

0

8

Echo 17721612330

BUSHING

$1.99

$

In Stock, Qty 20+

0

9

Echo 17720614330

REEL, ROPE

$29.99

$

In Stock, only 2 left!

0

10

Echo 17722607060

ROPE, STARTER 4.0×950

$10.99

$

In Stock, Qty 13

0

11

Echo 17721402830

WASHER 5.2×16×1.0

$0.99

$

In Stock, Qty 10

0

12

Echo 90016205014

BOLT 5×14

$1.49

$

In Stock, Qty 20+

0

13

Echo 90016205020

BOLT 5×20

$1.49

$

In Stock, Qty 20+

0

14

Echo 10153530830

COVER, FAN

$11.99

$

Usually ships in 2-4 days

0

15

Echo V203000140

BOLT 5×30

$1.49

$

Usually ships in 2-4 days

0

16

Echo 90060300005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

17

Echo 17721830830

PAWL, STARTER

$4.99

$

In Stock, only 3 left!

0

18

Echo 17724712331

SPACER, PAWL

$2.99

$

In Stock, Qty 9

0

19

Echo 17723430830

SPRING, RETURN

$1.49

$

In Stock, Qty 5

0

20

Echo 90016205020

BOLT 5×20

$1.49

$

In Stock, Qty 20+

0

21

Echo 10153430830

PLATE, GUIDE

$9.49

$

Usually ships in 2-4 days

0
