CS-8000 - Echo Chainsaw (Original Version) Chain Brake Parts Diagram

CS-8000: 423 x 240 x 320 mm (16.7"x9.5"x12.6"). Dry weight 7.1 kg (10.8 lb). Air-cooled 2-stroke 80.7 cc single-cylinder. Walbro DT-A diaphragm carb, HDA magneto, CDI ignition, Champion CJ-6Y spark plug. Recoil starter, centrifugal clutch. Fuel: <89 octane, 32:1/50:1 two-cycle oil. Fuel tank 0.82 L, oil tank 0.40 L. Features: hand guards, lock-outs, throttle, anti-vibration latch, high-speed idle, kick guard, chain catcher, chain brake. Guide bars 20",24",27",32",36" with corresponding guards/tips.

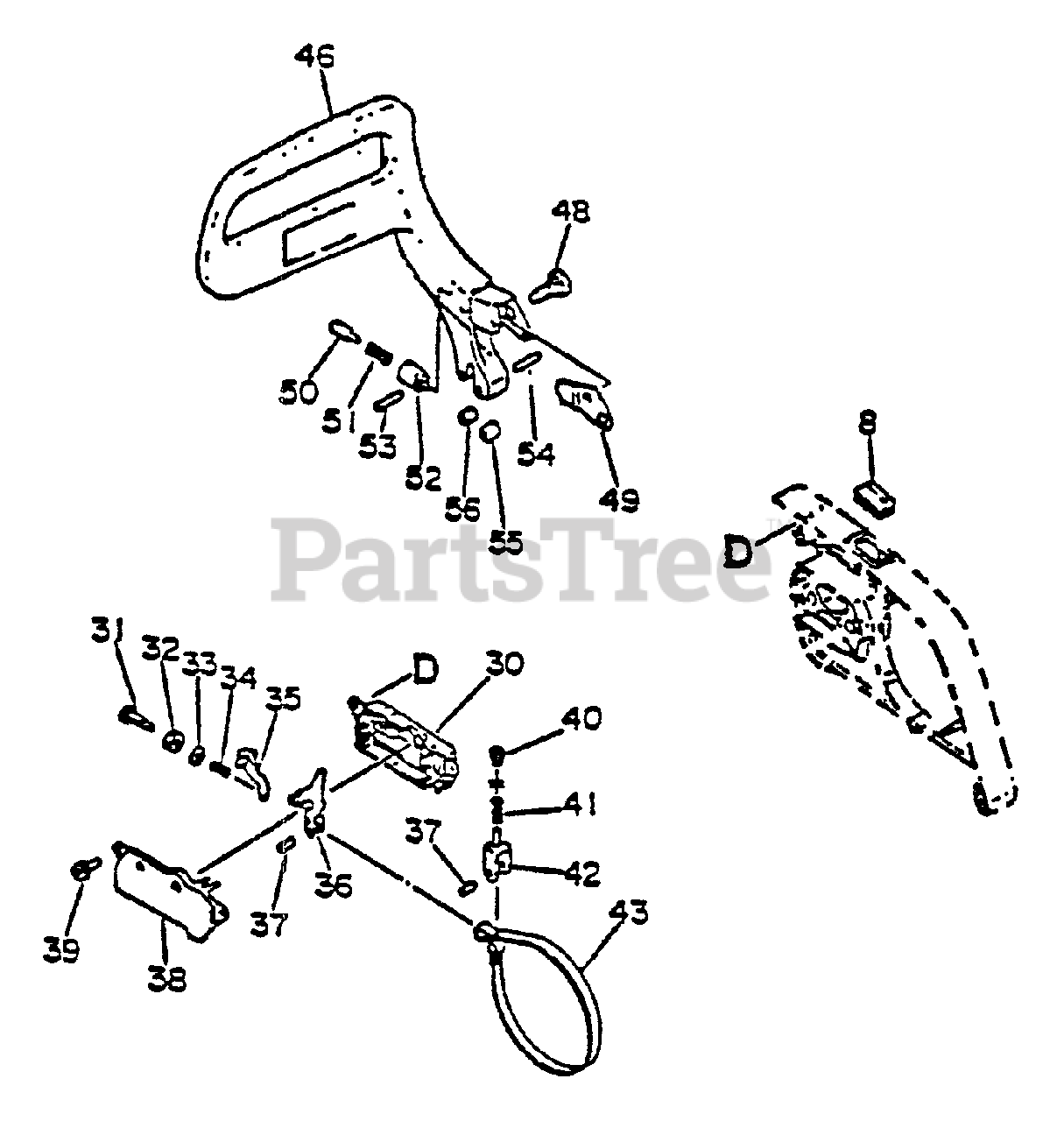

Chain Brake Parts Diagram

  • Title

Echo 43320030830

CHAIN BRAKE ASSY
(Superseded to 43320038830)

$161.99

$

Usually ships in 2-4 days

0

8

Echo 43331219930

SEAL

$3.49

$

In Stock, only 1 left!

0

8

Echo 43320230830

CHAIN BRAKE ASSY

$74.99

$

Usually ships in 2-4 days

0

30

Echo 43330619930

COVER, BRAKE

$12.99

$

Usually ships in 2-4 days

0

31

Echo 43313319930

BOLT

$0.99

$

Usually ships in 2-4 days

0

32

Echo 90050200005

NUT - 5

$0.99

$

In Stock, Qty 8

0

33

Echo 43316219930

WASHER

$0.99

$

In Stock, only 3 left!

0

34

Echo 43312219930

SPRING, BRAKE

$2.49

$

Usually ships in 2-4 days

0

35

Echo 43320919930

STOPPER, BRAKE

$5.99

$

Usually ships in 2-4 days

0

36

Echo 43320819930

LEVER, BRAKE

$19.99

$

Usually ships in 2-4 days

0

37

Echo 90034040010

PIN - SPRING -- 4X10
(Superseded to Discontinued)

$

$

Not available

38

Echo 43331019931

COVER, BRAKE

$6.99

$

Usually ships in 2-4 days

0

39

Echo 90028104010

SCREW - 4X10
(Superseded to 90016204010)

$1.49

$

In Stock, Qty 20+

0

40

Echo 43316919931

NUT

$6.49

$

Usually ships in 2-4 days

0

41

Echo 43316119930

SPRING

$0.99

$

In Stock, only 1 left!

0

42

Echo 43314219931

ADJUSTER, BRAKE BAND

$3.99

$

Usually ships in 2-4 days

0

43

Echo 43312330830

BAND, BRAKE

$18.99

$

Usually ships in 2-4 days

0

46

Echo 43320130830

BRAKE LEVER ASSY
(Superseded to Discontinued)

$

$

Not available

50

Echo 43316419930

BOLT

$3.49

$

Usually ships in 2-4 days

0

51

Echo 43316519930

SPRING

$1.49

$

In Stock, only 4 left!

0

52

Echo 43316619930

SPACER

$5.99

$

Usually ships in 2-4 days

0

53

Echo 90033020200

PIN

$0.99

$

In Stock, Qty 9

0

54

Echo 90033030180

PIN

$0.99

$

In Stock, Qty 6

0

55

Echo 43316719930

SPACER
(Superseded to 43316719931)

$3.49

$

Usually ships in 2-4 days

0

56

Echo 43316819930

SPACER
(Superseded to Discontinued)

$

$

Not available

48

Echo 35134419830

SCREW

$4.49

$

Usually ships in 2-4 days

0

49

Echo 43316319930

STOPPER

$3.99

$

Usually ships in 2-4 days

0

Echo 20D0PS3870

GUIDE BAR - 20" (50cm)

Note: GAUGE: .050"

$

$

Not available

Echo 240388010

GUIDE BAR - 24" (60cm)

Note: Bar & Chain Option Not Illustrated

$

$

Currently unavailable

Echo 27D0PS3893

GUIDE BAR - 27" (68cm)

Note: GAUGE: .050"

$193.99

$

Usually ships in 2-4 days

0

Echo 32D0PS3805

GUIDE BAR - 32" (81cm)

Note: GAUGE: .050"

$

$

Not available

Echo 36D0PS3816

GUIDE BAR - 36" (91cm)

Note: GAUGE: .050"

$151.99

$

Usually ships in 2-4 days

0

Echo 72V70CQ

SAW CHAIN - 20" (50cm)

Note: GAUGE: .050" / PITCH: .375"

$

$

Currently unavailable

Echo 72V81CQ

SAW CHAIN - 24" (60cm)

Note: GAUGE: .050" / PITCH: .375"

$49.99

$

In Stock, only 2 left!

0

Echo 72V93CQ

SAW CHAIN - 27" (68cm)

Note: GAUGE: .050" / PITCH: .375"

$

$

Currently unavailable

Echo 72LP105G

SAW CHAIN - 32" (81cm)

Note: GAUGE: .050" / PITCH: .375"

$

$

Currently unavailable

Echo 72LP116G

SAW CHAIN - 36" (91cm)

Note: GAUGE: .050" / PITCH: .375"

$

$

Currently unavailable
