CS-8000 - Echo Chainsaw (Original Version) Handles, Fuel System Parts Diagram

CS-8000: 423 x 240 x 320 mm (16.7"x9.5"x12.6"). Dry weight 7.1 kg (10.8 lb). Air-cooled 2-stroke 80.7 cc single-cylinder. Walbro DT-A diaphragm carb, HDA magneto, CDI ignition, Champion CJ-6Y spark plug. Recoil starter, centrifugal clutch. Fuel: <89 octane, 32:1/50:1 two-cycle oil. Fuel tank 0.82 L, oil tank 0.40 L. Features: hand guards, lock-outs, throttle, anti-vibration latch, high-speed idle, kick guard, chain catcher, chain brake. Guide bars 20",24",27",32",36" with corresponding guards/tips.

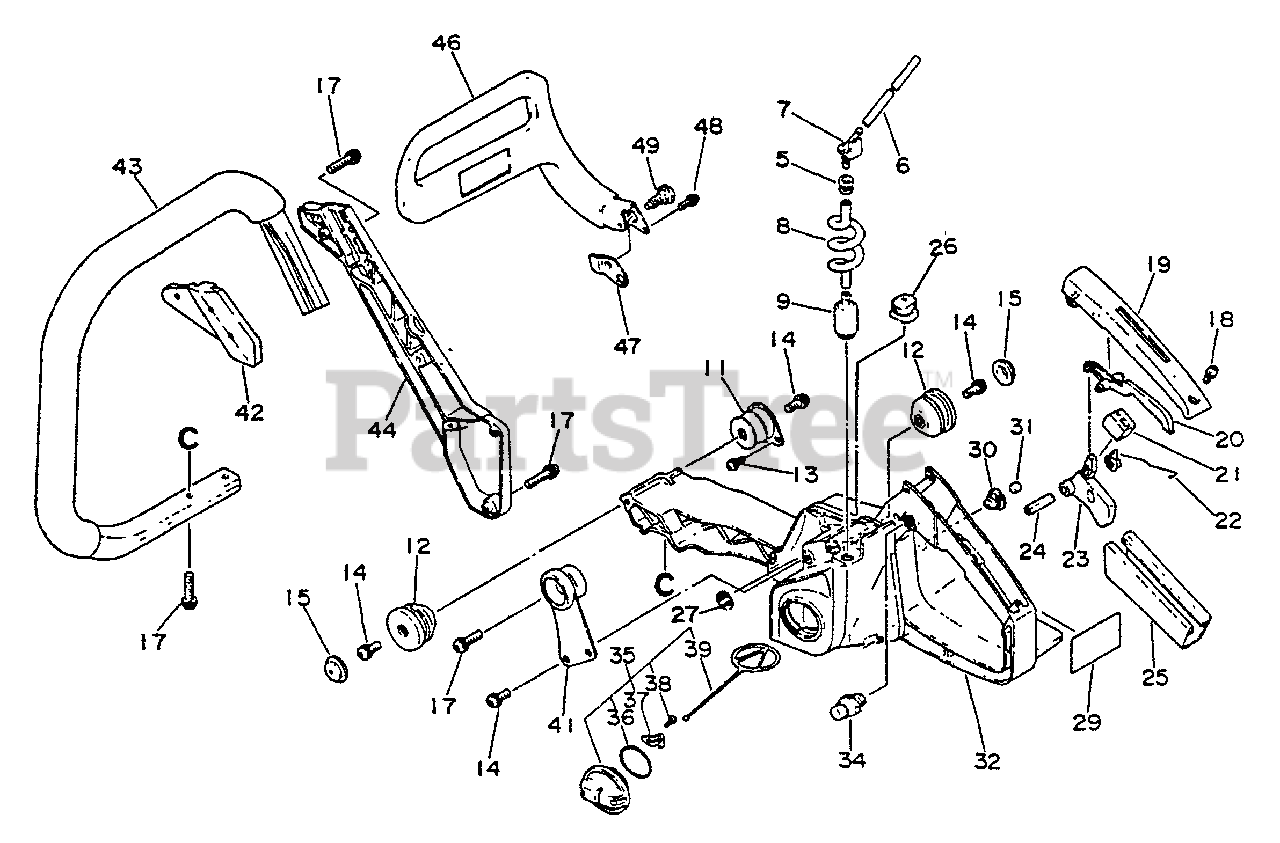

Handles, Fuel System Parts Diagram

  • Title

5

Echo 13211501460

GROMMET
(Superseded to 13211501461)

$1.99

$

In Stock, Qty 20+

0

6

Echo 13201202960

PIPE - 3X6X120 -- BLACK
(Superseded to 13201202961)

Note: RePower BULK OPTION: 90015

$4.49

$

Usually ships in 2-4 days

0

7

Echo 13201119830

CONNECTOR, PIPE
(Superseded to 13201119831)

$5.49

$

In Stock, Qty 9

0

8

Echo 13201030830

PIPE - BLACK
(Superseded to 13201030831)

$6.99

$

In Stock, Qty 12

0

9

Echo 13120500230

FILTER, FUEL
(Superseded to 13120530830)

$9.99

$

In Stock, Qty 20+

0

11

Echo 10092230830

CUSHION

$13.99

$

In Stock, only 3 left!

0

12

Echo 10091030830

CUSHION

$11.99

$

In Stock, only 3 left!

0

13

Echo 90028104010

SCREW - 4X10
(Superseded to 90016204010)

$1.49

$

In Stock, Qty 20+

0

14

Echo 90028105014

SCREW - 5X14
(Superseded to 90016205014)

$1.49

$

In Stock, Qty 7

0

15

Echo 10091819830

CAP, CUSHION

$2.49

$

In Stock, Qty 20+

0

17

Echo 90028105020

SCREW - 5X20
(Superseded to 90023805020)

$0.99

$

In Stock, Qty 20+

0

18

Echo 90028104014

SCREW - 4X14
(Superseded to 90023804014)

$0.99

$

In Stock, Qty 9

0

19

Echo 35115530130

GRIP, HANDLE - REAR
(Superseded to 35115530131)

$8.99

$

In Stock, only 2 left!

0

20

Echo 17809030130

LOCKOUT, THROTTLE

$4.99

$

Usually ships in 2-4 days

0

21

Echo 17807319831

CUSHION
(Superseded to Discontinued)

$

$

Not available

22

Echo 17804319830

SPRING, TRIGGER

$2.99

$

In Stock, Qty 6

0

23

Echo 17801019830

TRIGGER, THROTTLE

$5.49

$

In Stock, only 2 left!

0

24

Echo 90034050025

PIN - SPRING -- 5X25
(Superseded to Discontinued)

$

$

Not available

25

Echo 35111119830

GRIP, HANDLE
(Superseded to 35111119831)

$7.49

$

In Stock, only 1 left!

0

29

Echo 89015530130

LABEL - CAUTION
(Superseded to X524000680)

$4.49

$

Usually ships in 2-4 days

0

30

Echo 13131406320

VENT

$6.49

$

In Stock, Qty 20+

0

31

Echo 13131505020

FILTER

$0.99

$

In Stock, Qty 8

0

32

Echo 35110330830

HANDLE - REAR
(Superseded to 35110330831)

$203.99

$

Usually ships in 2-4 days

0

26

Echo 10025119830

CUSHION

$5.99

$

Usually ships in 2-4 days

0

27

Echo 10025230830

CUSHION

$0.99

$

In Stock, Qty 10

0

34

Echo 17830212330

LATCH, THROTTLE
(Superseded to 17830237930)

$9.99

$

In Stock, only 3 left!

0

35

Echo 13100419830

CAP ASSY
(Superseded to 13100437630)

$4.49

$

In Stock, Qty 18

0

36

Echo 90072000029

O-RING - 29

$3.99

$

In Stock, Qty 12

0

37

Echo 13105019830

RETAINER
(Superseded to Discontinued)

$

$

Not available

38

Echo 90025803008

SCREW - 3X8
(Superseded to Discontinued)

$

$

Not available

39

Echo A365000050

CONNECTOR, CAP

$2.49

$

In Stock, Qty 20+

0

41

Echo 10091730830

CUSHION

$26.99

$

In Stock, only 2 left!

0

42

Echo 35161430830

BRACKET, HANDLE - INNER
(Superseded to 35161430831)

$

$

Not available

43

Echo 35160630830

HANDLE - FRONT
(Superseded to 35160630831)

$88.99

$

Usually ships in 2-4 days

0

44

Echo 35161330830

BRACKET, HANDLE - OUTER
(Superseded to 35161330831)

$

$

Not available

46

Echo 35180519830

GUARD

$53.99

$

Usually ships in 2-4 days

0

47

Echo 35134319830

SPACER

$3.99

$

Usually ships in 2-4 days

0

48

Echo 90028104010

SCREW - 4X10
(Superseded to 90016204010)

$1.49

$

In Stock, Qty 20+

0

49

Echo 35134419830

SCREW

$4.49

$

Usually ships in 2-4 days

0
