CS-8000 - Echo Chainsaw (SN: 03001001 - 03999999) Fuel System Parts Diagram

CS-8000: 423 x 240 x 320 mm (16.7"x9.5"x12.6"). Dry weight 7.1 kg (10.8 lb). Air-cooled 2-stroke 80.7 cc single-cylinder. Walbro DT-A diaphragm carb, HDA magneto, CDI ignition, Champion CJ-6Y spark plug. Recoil starter, centrifugal clutch. Fuel: <89 octane, 32:1/50:1 two-cycle oil. Fuel tank 0.82 L, oil tank 0.40 L. Features: hand guards, lock-outs, throttle, anti-vibration latch, high-speed idle, kick guard, chain catcher, chain brake. Guide bars 20",24",27",32",36" with corresponding guards/tips.

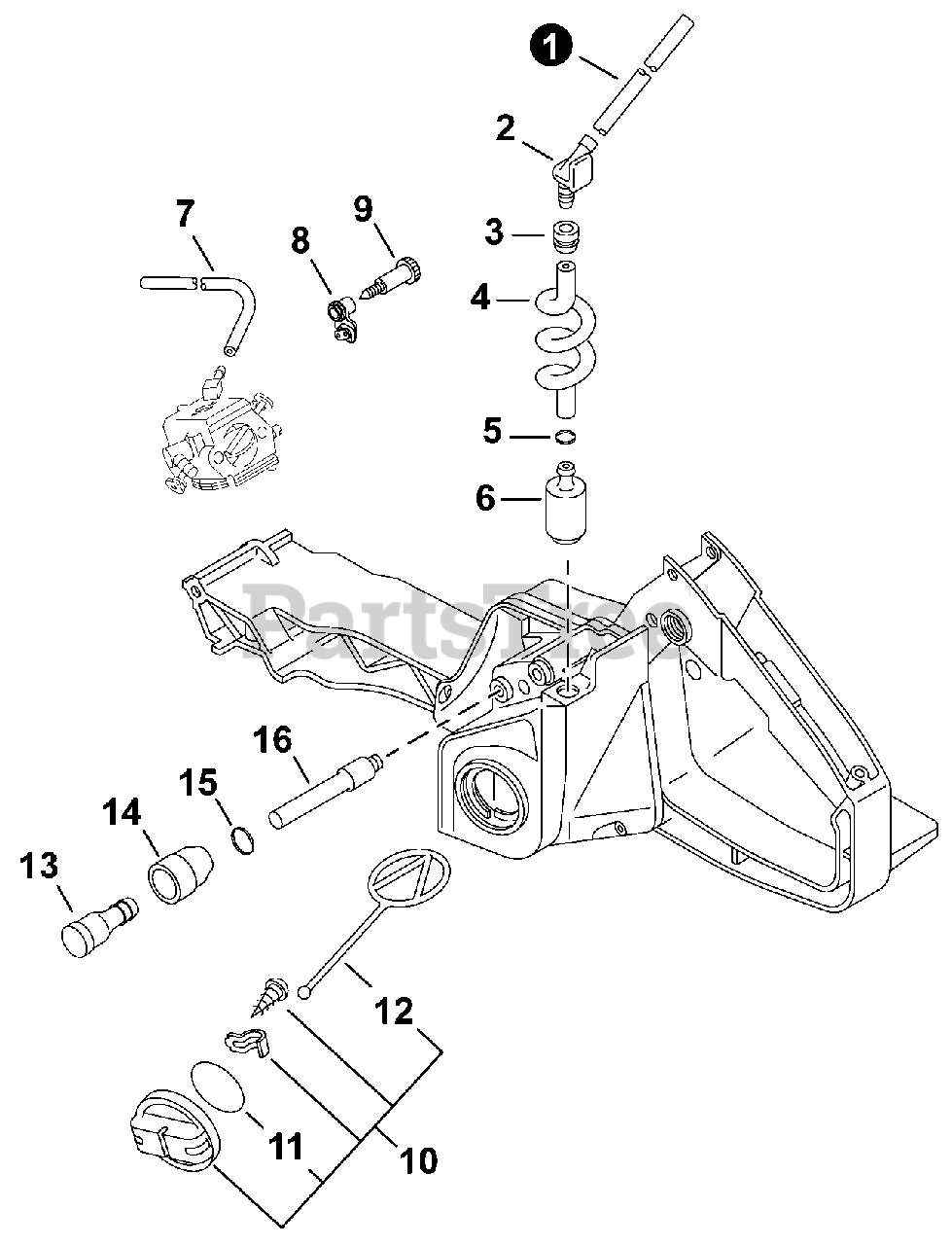

Fuel System Parts Diagram

  • Title

1

Echo V471003760

PIPE, FUEL 3x6x120 BLACK
(Superseded to V471003761)

$5.99

$

In Stock, only 1 left!

0

2

Echo 13201133031

CONNECTOR, PIPE

$5.49

$

In Stock, Qty 9

0

3

Echo 13211501461

GROMMET
(Superseded to 13211501462)

$1.99

$

In Stock, Qty 20+

0

4

Echo 13201030830

PIPE, FUEL
(Superseded to 13201030831)

$6.99

$

In Stock, Qty 12

0

5

Echo V490001230

CLIP 6.5 MM

$0.99

$

In Stock, Qty 20+

0

6

Echo A369000460

FILTER, FUEL

$9.99

$

In Stock, Qty 20+

0

7

Echo 13011030830

PIPE, IMPULSE 3x6(8)x160
(Superseded to 13011030831)

$3.49

$

In Stock, Qty 11

0

8

Echo 12901038830

GROMMET, NEEDLE

$6.99

$

Usually ships in 2-4 days

0

9

Echo 12901307061

SCREW, IDLE ADJUST - GRAY

$7.49

$

Usually ships in 2-4 days

0

9

Echo 12901330831

SCREW, IDLE ADJUST - ORANGE

$7.49

$

Usually ships in 2-4 days

0

10

Echo 13100437632

CAP ASSY, FUEL
(Superseded to P021037420)

Note: Includes Items 11-12

$4.49

$

In Stock, Qty 18

0

11

Echo V581000600

O-RING 29

$2.99

$

In Stock, Qty 10

0

12

Echo A365000050

CONNECTOR, CAP L= 60 MM

$2.49

$

In Stock, Qty 20+

0

13

Echo 13130056431

VENT ASSY

$8.99

$

In Stock, Qty 20+

0

14

Echo 13132840630

HOLDER, VENT

$7.49

$

In Stock, Qty 20+

0

15

Echo 13011100530

CLIP 5.5

$0.99

$

In Stock, Qty 20+

0

16

Echo 43721031730

PIPE 3x5x90
(Superseded to 43721031731)

$11.99

$

In Stock, Qty 5

0
