CS-8000 - Echo Chainsaw (SN: 03001001 - 03999999) Throttle Control Parts Diagram

CS-8000: 423 x 240 x 320 mm (16.7"x9.5"x12.6"). Dry weight 7.1 kg (10.8 lb). Air-cooled 2-stroke 80.7 cc single-cylinder. Walbro DT-A diaphragm carb, HDA magneto, CDI ignition, Champion CJ-6Y spark plug. Recoil starter, centrifugal clutch. Fuel: <89 octane, 32:1/50:1 two-cycle oil. Fuel tank 0.82 L, oil tank 0.40 L. Features: hand guards, lock-outs, throttle, anti-vibration latch, high-speed idle, kick guard, chain catcher, chain brake. Guide bars 20",24",27",32",36" with corresponding guards/tips.

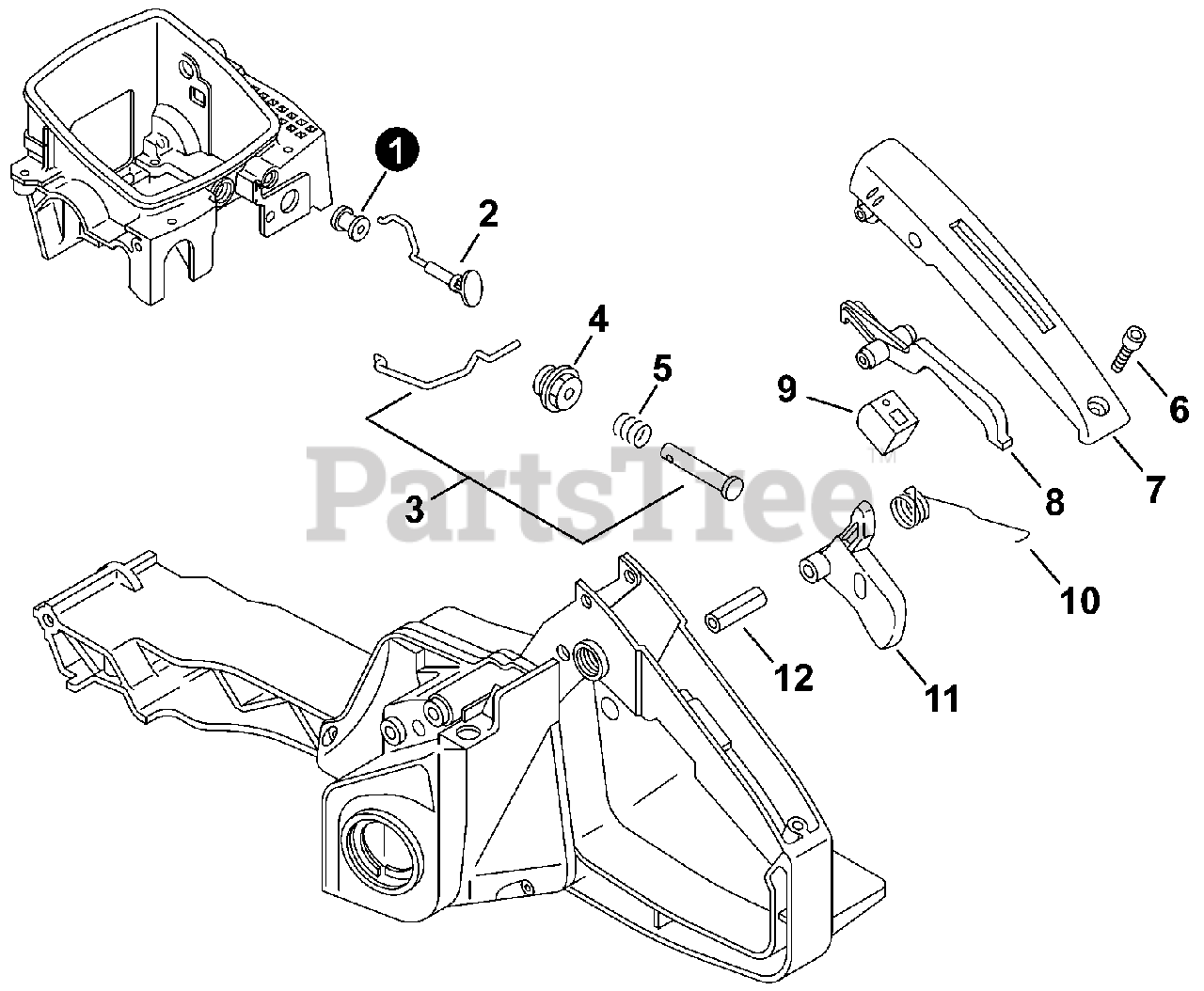

Throttle Control Parts Diagram

  • Title

1

Echo 17881011231

GROMMET, CHOKE

$1.99

$

Usually ships in 2-4 days

0

2

Echo 17851038730

ROD, CHOKE - GRAY

$9.49

$

Usually ships in 2-4 days

0

2

Echo 17851030830

ROD, CHOKE - ORANGE

$7.49

$

Usually ships in 2-4 days

0

3

Echo 17830730830

ROD, THROTTLE

$8.99

$

In Stock, only 1 left!

0

4

Echo 17811419830

GROMMET, THROTTLE ROD

$2.49

$

In Stock, only 4 left!

0

5

Echo 17807819830

SPRING

$2.49

$

In Stock, only 3 left!

0

6

Echo 90016204014

BOLT 4x14

$1.49

$

In Stock, Qty 18

0

7

Echo 35115530131

COVER, HANDLE

$8.99

$

In Stock, only 2 left!

0

8

Echo 17809037930

LEVER, THROTTLE LOCKOUT

$5.99

$

In Stock, Qty 5

0

9

Echo 17807332430

CUSHION,?THROTTLE

$3.49

$

In Stock, only 1 left!

0

10

Echo 17804319830

SPRING, THROTTLE RETURN

$2.99

$

In Stock, Qty 6

0

11

Echo 17801038130

TRIGGER, THROTTLE - ORANGE

$6.99

$

In Stock, Qty 5

0

11

Echo 17801019830

TRIGGER, THROTTLE - BLACK

$5.49

$

In Stock, only 2 left!

0

12

Echo 90034250025

PIN, SPRING ?5x25 MM

$1.99

$

In Stock, Qty 8

0
