CS-8000 - Echo Chainsaw (SN: C48003001001 - C48003999999) Chain Brake Parts Diagram

Chainsaw

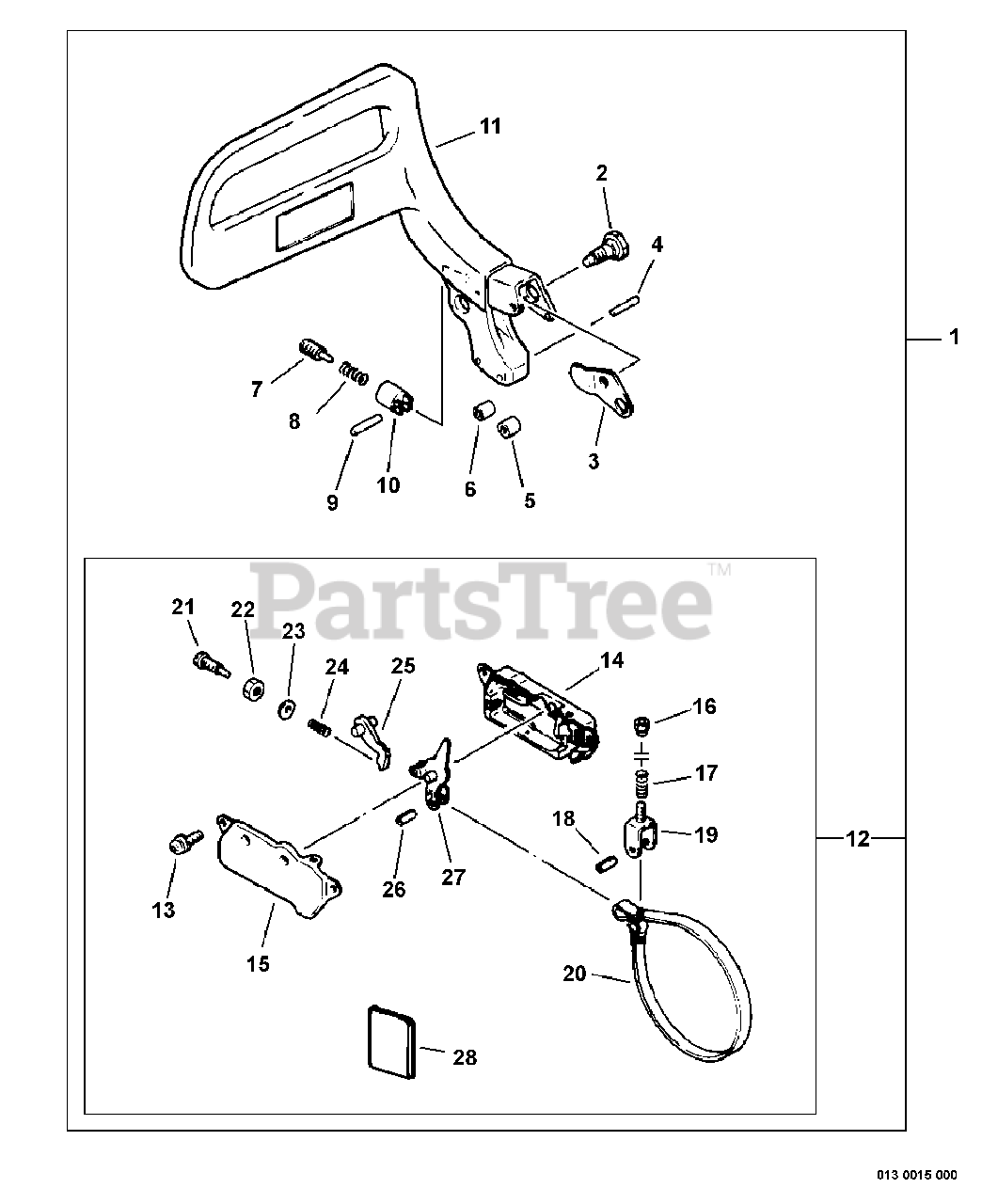

Chain Brake Parts Diagram

  • Title

1

Echo 43320038830

CHAIN BRAKE ASSY

Note: Includes ITEMS 2-28

$134.99

$

Usually ships in 2-4 days

0

1

Echo P021036420

CHAIN BRAKE ASSY - ORANGE

Note: Includes ITEMS 2-28

$134.99

$

Usually ships in 2-4 days

0

2

Echo 35134419830

SCREW

$3.99

$

Usually ships in 2-4 days

0

3

Echo 43316319930

STOPPER

$3.49

$

Usually ships in 2-4 days

0

4

Echo 90033030180

PIN

$0.99

$

In Stock, Qty 9

0

5

Echo 43316719931

SPACER

$2.99

$

Usually ships in 2-4 days

0

6

Echo 43316819930

SPACER
(Superseded to Discontinued)

$

$

Not available

7

Echo 43316419930

BOLT

$2.99

$

Usually ships in 2-4 days

0

8

Echo 43316519930

SPRING

$1.49

$

In Stock, Qty 5

0

9

Echo 90033020200

PIN

$0.99

$

In Stock, Qty 9

0

10

Echo 43316619930

SPACER

$4.99

$

In Stock, only 1 left!

0

11

Echo 43310538830

LEVER, BRAKE

Note: Use With GRAY MODELS

$46.99

$

Usually ships in 2-4 days

0

11

Echo 43310538730

LEVER, BRAKE - BLACK

Note: Use With ORANGE MODELS

$46.99

$

Usually ships in 2-4 days

0

12

Echo 43320230830

CHAIN BRAKE ASSY

$62.99

$

Usually ships in 2-4 days

0

13

Echo 90016204010

SCREW - 4X10

$1.49

$

In Stock, Qty 20+

0

14

Echo 43330619930

COVER, BRAKE

$10.99

$

Usually ships in 2-4 days

0

15

Echo 43331019931

COVER, BRAKE

$5.99

$

Usually ships in 2-4 days

0

16

Echo 43316919931

NUT

$5.49

$

Usually ships in 2-4 days

0

17

Echo 43316119930

SPRING

$0.99

$

In Stock, only 2 left!

0

18

Echo 90034540010

PIN - SPRING

$2.49

$

In Stock, only 1 left!

0

19

Echo 43314219931

ADJUSTER, BRAKE BAND

$3.49

$

Usually ships in 2-4 days

0

20

Echo 43312330830

BAND, BRAKE

$15.99

$

Usually ships in 2-4 days

0

21

Echo 43313319930

BOLT

$0.99

$

Usually ships in 2-4 days

0

22

Echo 90050200005

NUT - 5

$0.99

$

In Stock, Qty 14

0

23

Echo 43316219930

WASHER

$0.99

$

In Stock, only 3 left!

0

24

Echo 43312219930

SPRING, BRAKE

$1.99

$

Usually ships in 2-4 days

0

25

Echo 43320919930

STOPPER, BRAKE

$4.99

$

Usually ships in 2-4 days

0

26

Echo 90034540010

PIN - SPRING

$2.49

$

In Stock, only 1 left!

0

27

Echo 43320819930

LEVER, BRAKE

$16.99

$

Usually ships in 2-4 days

0

28

Echo 43331319930

SEAL

$1.49

$

Usually ships in 2-4 days

0
