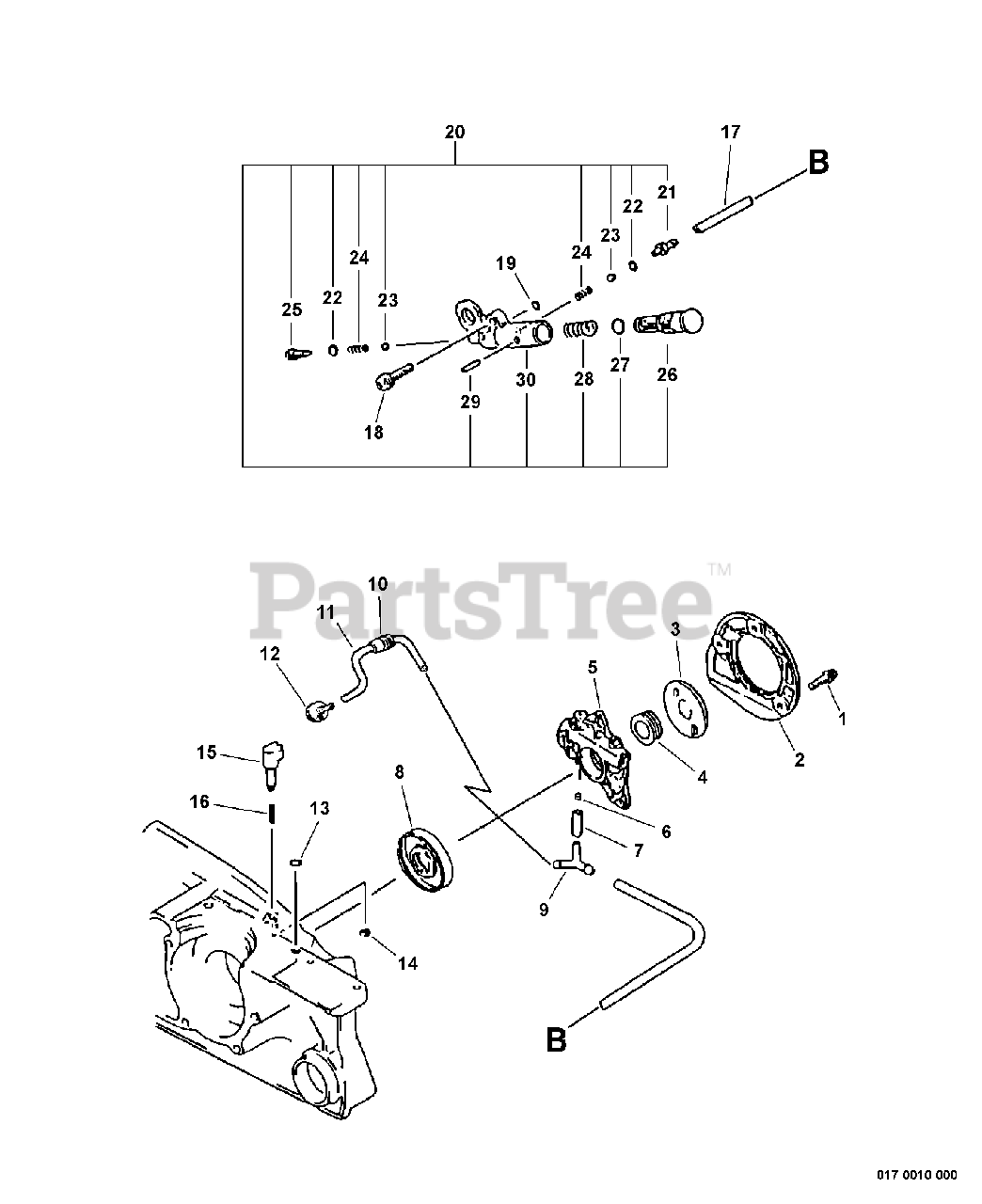

CS-8000 - Echo Chainsaw (SN: C48003001001 - C48003999999) Oiler, Oil System Parts Diagram

Chainsaw

Oiler, Oil System Parts Diagram

  • Title

1

Echo 90016204014

SCREW - 4X14

$1.49

$

In Stock, Qty 17

0

2

Echo 43760537630

COVER, OIL PUMP

Note: Use With GRAY MODELS

$5.49

$

Usually ships in 2-4 days

0

2

Echo 43760532430

COVER, OIL PUMP

Note: Use With ORANGE MODELS

$4.99

$

Usually ships in 2-4 days

0

3

Echo 43706630831

WASHER

$17.99

$

Usually ships in 2-4 days

0

4

Echo 43706333231

GEAR - WORM

$28.99

$

Usually ships in 2-4 days

0

5

Echo 43700237530

AUTO-OILER ASSY

$92.99

$

Usually ships in 2-4 days

0

6

Echo V490001230

CLIP - 6.5

$0.99

$

In Stock, Qty 20+

0

7

Echo 43721132430

PIPE - 3X6X20 -- BLACK

$2.49

$

In Stock, only 1 left!

0

8

Echo 10021330830

SEAL, OIL

$5.99

$

In Stock, only 3 left!

0

9

Echo 43721232430

CONNECTOR, PIPE

$3.99

$

Usually ships in 2-4 days

0

10

Echo 13211512330

GROMMET

$1.49

$

In Stock, Qty 20+

0

11

Echo 43721038330

PIPE - OIL
(Superseded to 43721038331)

$5.49

$

In Stock, Qty 18

0

12

Echo 43620514730

FILTER, OIL

$8.99

$

In Stock, only 4 left!

0

13

Echo 90072000003

O-RING - 3

$1.49

$

In Stock, Qty 13

0

14

Echo 90070000003

RING, RETAINING - 3

$0.99

$

In Stock, Qty 6

0

15

Echo 43703938730

DIAL, AUTO-OILER

Note: Use With GRAY MODELS

$2.99

$

In Stock, only 1 left!

0

15

Echo 43703930830

DIAL, AUTO-OILER

Note: Use With ORANGE MODELS

$2.49

$

Usually ships in 2-4 days

0

16

Echo 43701519830

SPRING

$1.49

$

In Stock, only 2 left!

0

17

Echo 43721030830

PIPE - 3X6X210 -- BLACK
(Superseded to 43721030831)

Note: RePower BULK OPTION: 90015

$5.99

$

In Stock, Qty 7

0

18

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

19

Echo 90072000003

O-RING - 3

$1.49

$

In Stock, Qty 13

0

20

Echo 43710038832

OIL PUMP ASSY

Note: Includes ITEMS 21-30

$21.99

$

Usually ships in 2-4 days

0

20

Echo 43710019832

OILER ASSY - ORANGE

Note: Includes ITEMS 21-30

$22.99

$

In Stock, only 1 left!

0

21

Echo 43711819830

NIPPLE

$3.49

$

Usually ships in 2-4 days

0

22

Echo 43712203430

O-RING

$1.49

$

In Stock, Qty 6

0

23

Echo 43701200330

VALVE, BALL

$0.99

$

In Stock, Qty 8

0

24

Echo V450000290

SPRING

$0.99

$

In Stock, Qty 9

0

25

Echo 43712110130

ADAPTER, OIL PUMP

$4.99

$

Usually ships in 2-4 days

0

26

Echo 43711238731

PISTON, OIL PUMP

Note: Use With GRAY MODELS

$4.49

$

Usually ships in 2-4 days

0

26

Echo 43711219831

PISTON, OIL PUMP

Note: Use With ORANGE MODELS

$4.49

$

Usually ships in 2-4 days

0

27

Echo 90072000007

O-RING - 7

$0.99

$

Usually ships in 2-4 days

0

28

Echo 43711119830

SPRING

$1.49

$

In Stock, only 4 left!

0

29

Echo 90034520016

PIN - SPRING -- 2X16

$1.99

$

Usually ships in 2-4 days

0

30

Echo 43711019831

BODY, OIL PUMP

$7.99

$

Usually ships in 2-4 days

0
