CS-8000 - Echo Chainsaw (Type 1E) (Original Version) Handles, Throttle Control, Fuel System Parts Diagram

CS-8000: 423 x 240 x 320 mm (16.7"x9.5"x12.6"). Dry weight 7.1 kg (10.8 lb). Air-cooled 2-stroke 80.7 cc single-cylinder. Walbro DT-A diaphragm carb, HDA magneto, CDI ignition, Champion CJ-6Y spark plug. Recoil starter, centrifugal clutch. Fuel: <89 octane, 32:1/50:1 two-cycle oil. Fuel tank 0.82 L, oil tank 0.40 L. Features: hand guards, lock-outs, throttle, anti-vibration latch, high-speed idle, kick guard, chain catcher, chain brake. Guide bars 20",24",27",32",36" with corresponding guards/tips.

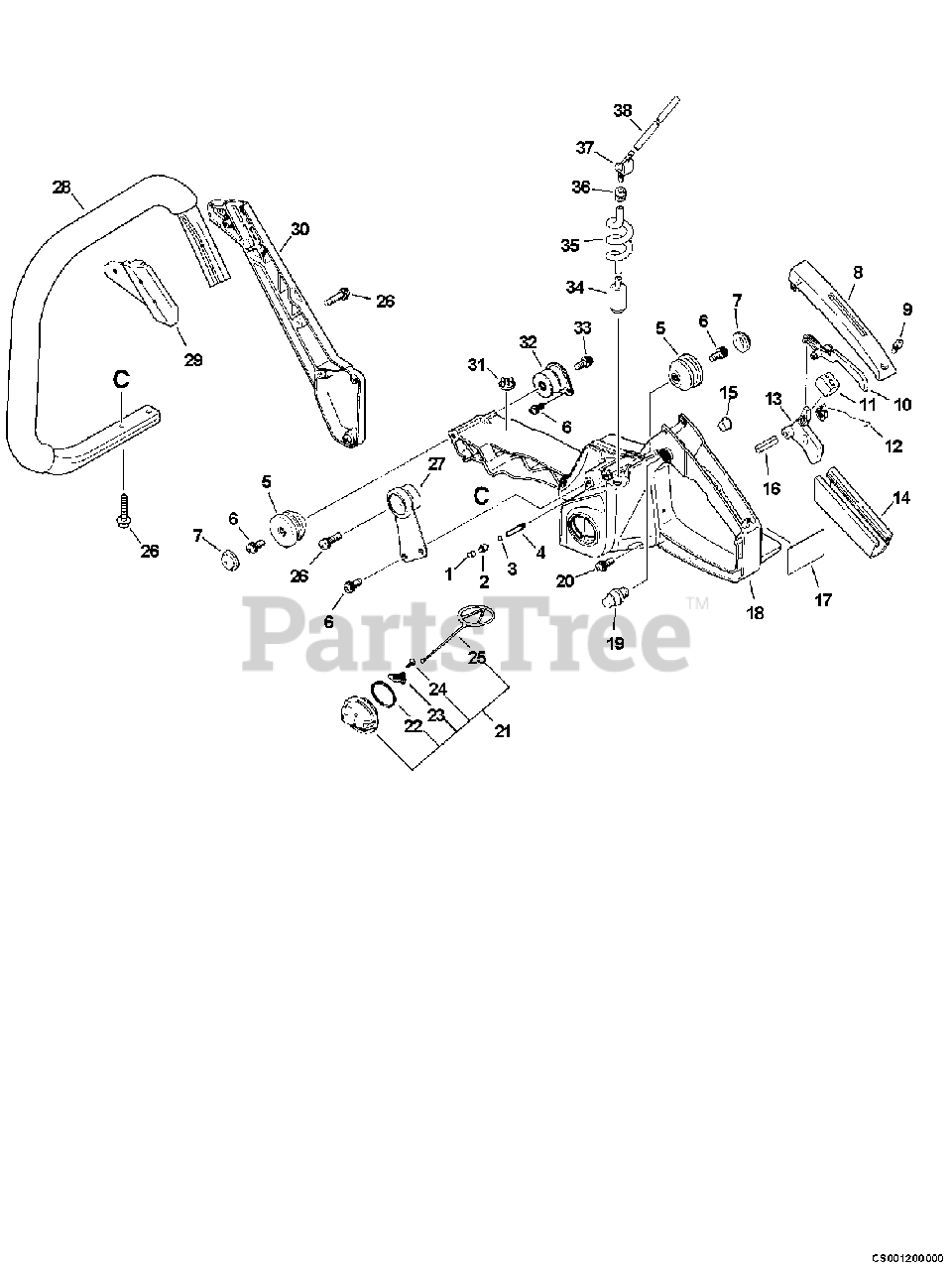

Handles, Throttle Control, Fuel System Parts Diagram

  • Title

1

Echo A356000031

VENT, FUEL TANK

$9.49

$

In Stock, Qty 20+

0

2

Echo 13132840630

COVER, VENT

$7.49

$

In Stock, Qty 20+

0

3

Echo 13011100530

CLIP - 5.5

$0.99

$

In Stock, Qty 20+

0

4

Echo 43721031730

PIPE - 3X5X55 -- BLACK
(Superseded to 43721031731)

Note: RePower BULK OPTION: 90014

$11.99

$

In Stock, Qty 5

0

5

Echo 10091030830

CUSHION

$11.99

$

In Stock, only 3 left!

0

6

Echo 90016205014

SCREW - 5X14

$1.49

$

In Stock, Qty 7

0

7

Echo 10091819830

CAP, CUSHION

$2.49

$

In Stock, Qty 20+

0

8

Echo 35115530131

COVER, HANDLE

$8.99

$

In Stock, only 2 left!

0

9

Echo 90016204014

SCREW - 4X14

$1.49

$

In Stock, Qty 18

0

10

Echo 17809037930

LEVER, TRIGGER LOCKOUT

$5.99

$

In Stock, Qty 6

0

11

Echo 17807332430

CUSHION

$3.49

$

In Stock, only 1 left!

0

12

Echo 17804319830

SPRING, TRIGGER

$2.99

$

In Stock, Qty 6

0

13

Echo 17801038130

TRIGGER, THROTTLE

$6.99

$

In Stock, Qty 5

0

14

Echo 35111119830

GRIP, HANDLE
(Superseded to 35111119831)

$7.49

$

In Stock, only 1 left!

0

15

Echo 13132932330

PLUG

$2.99

$

In Stock, Qty 10

0

16

Echo 90034250025

PIN - SPRING -- 5X25

$1.99

$

In Stock, Qty 8

0

17

Echo 89015530130

LABEL - CAUTION
(Superseded to X524000680)

$4.49

$

Usually ships in 2-4 days

0

18

Echo 35110338732

HANDLE - REAR
(Superseded to 35110338733)

$234.99

$

Usually ships in 2-4 days

0

19

Echo 17830237930

LATCH, THROTTLE

$9.99

$

In Stock, only 3 left!

0

20

Echo 90022004014

SCREW - 4X14

$0.99

$

Usually ships in 2-4 days

0

21

Echo 13100437631

CAP ASSY
(Superseded to 13100437632)

Note: INCLUDES ITEMS 22-25

$4.49

$

In Stock, Qty 18

0

22

Echo 90072000029

O-RING - 29

$3.99

$

In Stock, Qty 12

0

23

Echo 13105019830

RETAINER
(Superseded to Discontinued)

$

$

Not available

24

Echo 90024603008

SCREW - 3X8

$

$

Not available

25

Echo A365000050

CONNECTOR, CAP

$2.49

$

In Stock, Qty 20+

0

26

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

27

Echo 10091730830

CUSHION

$26.99

$

In Stock, only 2 left!

0

28

Echo 35160630830

HANDLE - FRONT
(Superseded to 35160630831)

$88.99

$

Usually ships in 2-4 days

0

29

Echo 35161438731

BRACKET, HANDLE

$19.99

$

Usually ships in 2-4 days

0

30

Echo 35161338731

BRACKET, HANDLE

$52.99

$

Usually ships in 2-4 days

0

31

Echo 10025230830

CUSHION

$0.99

$

In Stock, Qty 10

0

32

Echo 10092230830

CUSHION

$13.99

$

In Stock, only 3 left!

0

33

Echo 90016204010

SCREW - 4X10

$1.49

$

In Stock, Qty 20+

0

34

Echo 13120519831

FILTER, FUEL
(Superseded to 13120519832)

$9.99

$

In Stock, Qty 20+

0

35

Echo 13201030830

PIPE - BLACK
(Superseded to 13201030831)

$6.99

$

In Stock, Qty 12

0

36

Echo 13211501461

GROMMET
(Superseded to 13211501462)

$1.99

$

In Stock, Qty 20+

0

37

Echo 13201119830

CONNECTOR, PIPE
(Superseded to 13201119831)

$5.49

$

In Stock, Qty 9

0

38

Echo 13201202960

PIPE - 3X6X120 -- BLACK
(Superseded to 13201202961)

Note: RePower BULK OPTION: 90015

$4.49

$

Usually ships in 2-4 days

0
