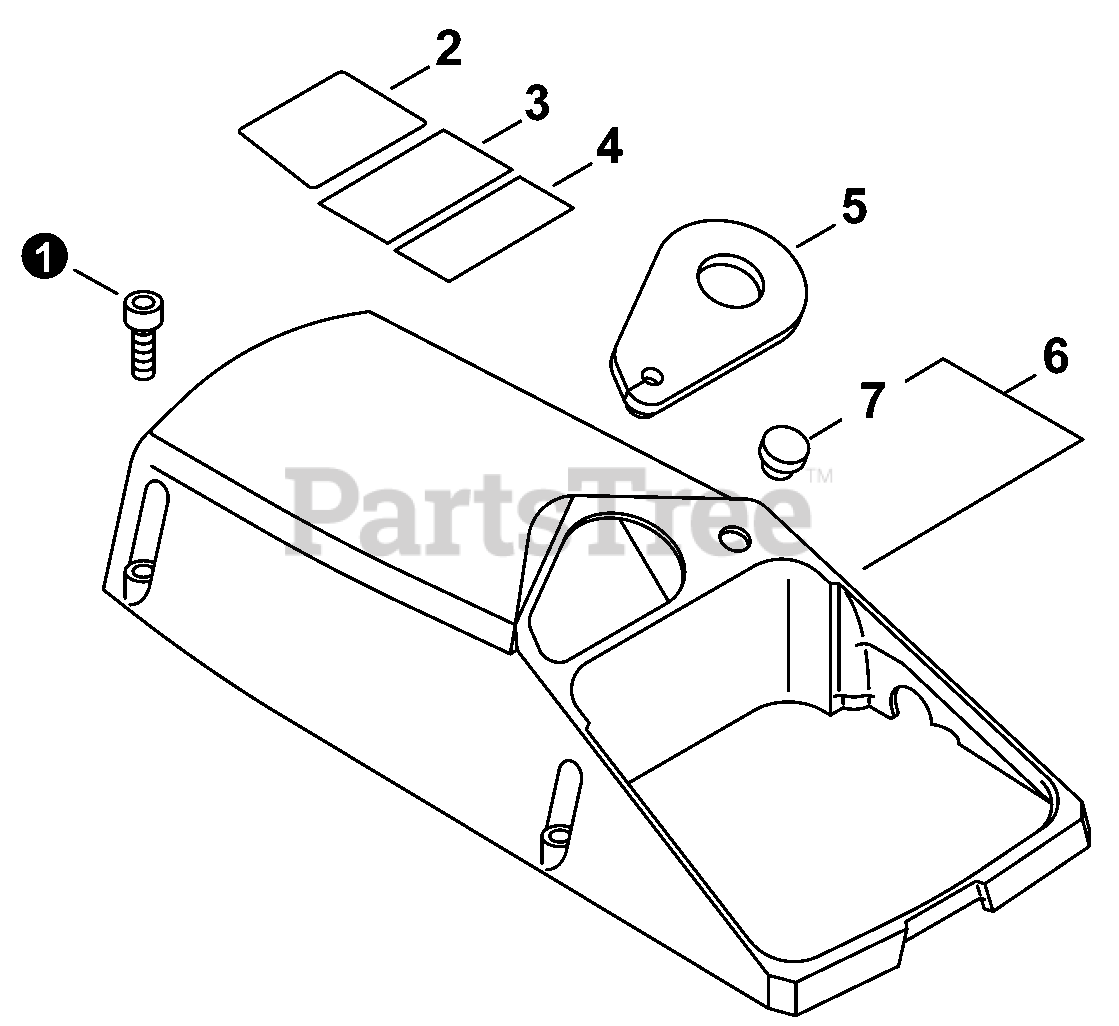

CS-8000 - Echo Chainsaw (Type 1E) (SN: 001001 - 999999) Engine Cover Parts Diagram

CS-8000: 423 x 240 x 320 mm (16.7"x9.5"x12.6"). Dry weight 7.1 kg (10.8 lb). Air-cooled 2-stroke 80.7 cc single-cylinder. Walbro DT-A diaphragm carb, HDA magneto, CDI ignition, Champion CJ-6Y spark plug. Recoil starter, centrifugal clutch. Fuel: <89 octane, 32:1/50:1 two-cycle oil. Fuel tank 0.82 L, oil tank 0.40 L. Features: hand guards, lock-outs, throttle, anti-vibration latch, high-speed idle, kick guard, chain catcher, chain brake. Guide bars 20",24",27",32",36" with corresponding guards/tips.
