CS-8000 - Echo Chainsaw (Type 1E) (SN: 001001 - 999999) Oil Pump Parts Diagram

CS-8000: 423 x 240 x 320 mm (16.7"x9.5"x12.6"). Dry weight 7.1 kg (10.8 lb). Air-cooled 2-stroke 80.7 cc single-cylinder. Walbro DT-A diaphragm carb, HDA magneto, CDI ignition, Champion CJ-6Y spark plug. Recoil starter, centrifugal clutch. Fuel: <89 octane, 32:1/50:1 two-cycle oil. Fuel tank 0.82 L, oil tank 0.40 L. Features: hand guards, lock-outs, throttle, anti-vibration latch, high-speed idle, kick guard, chain catcher, chain brake. Guide bars 20",24",27",32",36" with corresponding guards/tips.

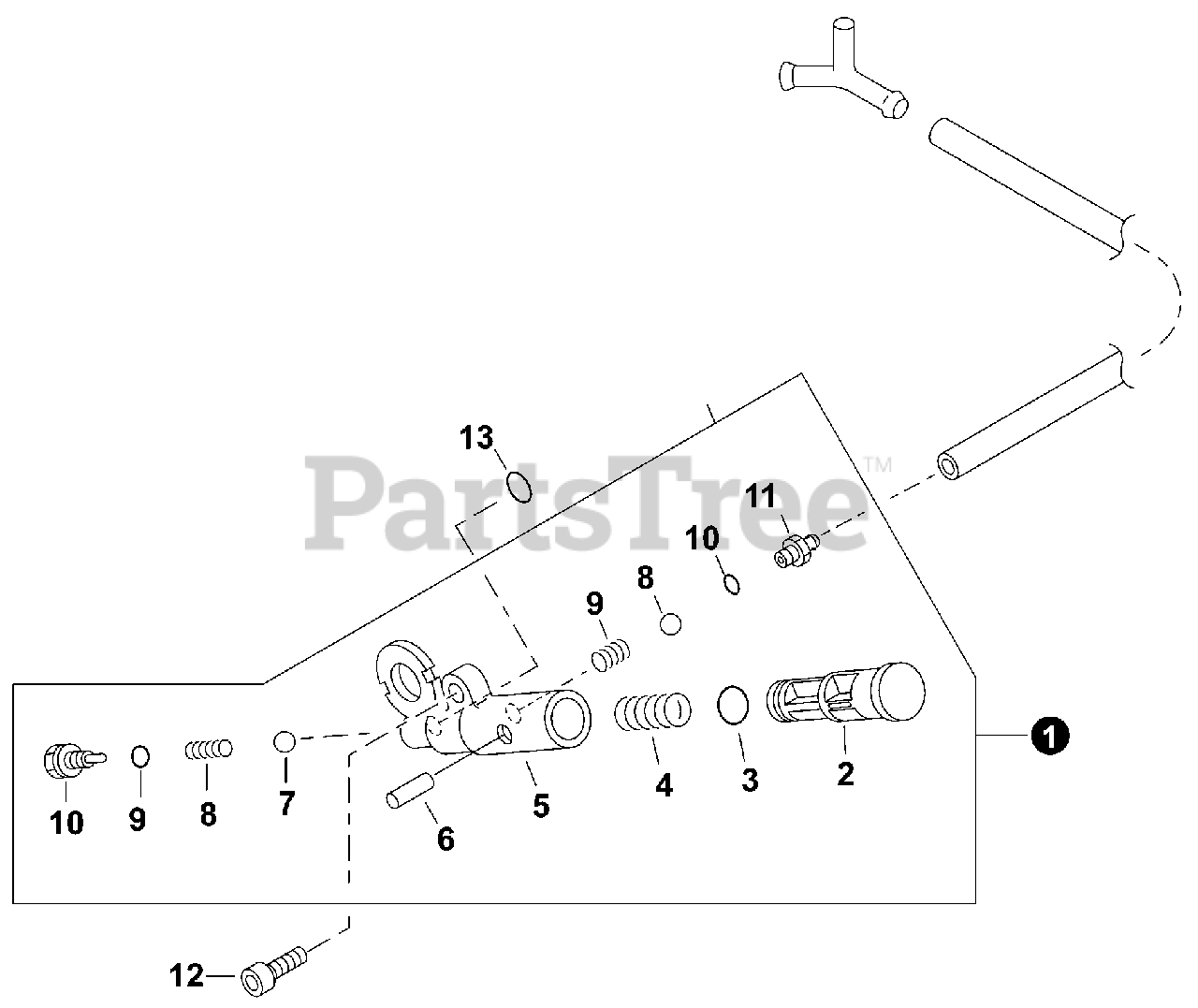

Oil Pump Parts Diagram

  • Title

1

Echo 43710038832

OIL PUMP ASSY - ORANGE

Note: Includes Items 2-11

$26.99

$

In Stock, only 2 left!

0

1

Echo 43710019832

OIL PUMP ASSY - BLACK

Note: Includes Items 2-11

$27.99

$

Usually ships in 2-4 days

0

2

Echo 43711238731

PISTON, OIL PUMP - ORANGE

$5.49

$

In Stock, only 1 left!

0

2

Echo 43711219831

PISTON, OIL PUMP - BLACK

$5.49

$

In Stock, only 1 left!

0

3

Echo 90072000007

O-RING 7 MM

$0.99

$

In Stock, only 1 left!

0

4

Echo 43711119830

SPRING

$1.99

$

In Stock, only 4 left!

0

5

Echo 43711019831

BODY, OIL PUMP

$9.49

$

Usually ships in 2-4 days

0

6

Echo 90034520016

PIN, SPRING 2x16

$2.49

$

Usually ships in 2-4 days

0

7

Echo 43701200330

VALVE, BALL

$0.99

$

In Stock, only 4 left!

0

8

Echo V450000290

SPRING, COMPRESSION

$1.49

$

In Stock, Qty 5

0

9

Echo 43712203430

O-RING

$1.49

$

In Stock, Qty 5

0

10

Echo 43712110130

ADAPTOR, OIL PUMP

$5.99

$

Usually ships in 2-4 days

0

11

Echo 43711819830

CONNECTOR, PIPE

$3.99

$

Usually ships in 2-4 days

0

12

Echo 90016205020

BOLT 5x20

$1.49

$

In Stock, Qty 20+

0

13

Echo 90072000003

O-RING 3

$1.49

$

In Stock, only 2 left!

0
