CS-8002 - Echo Chainsaw (Original Version) Clutch, Sprocket Parts Diagram

Chainsaw

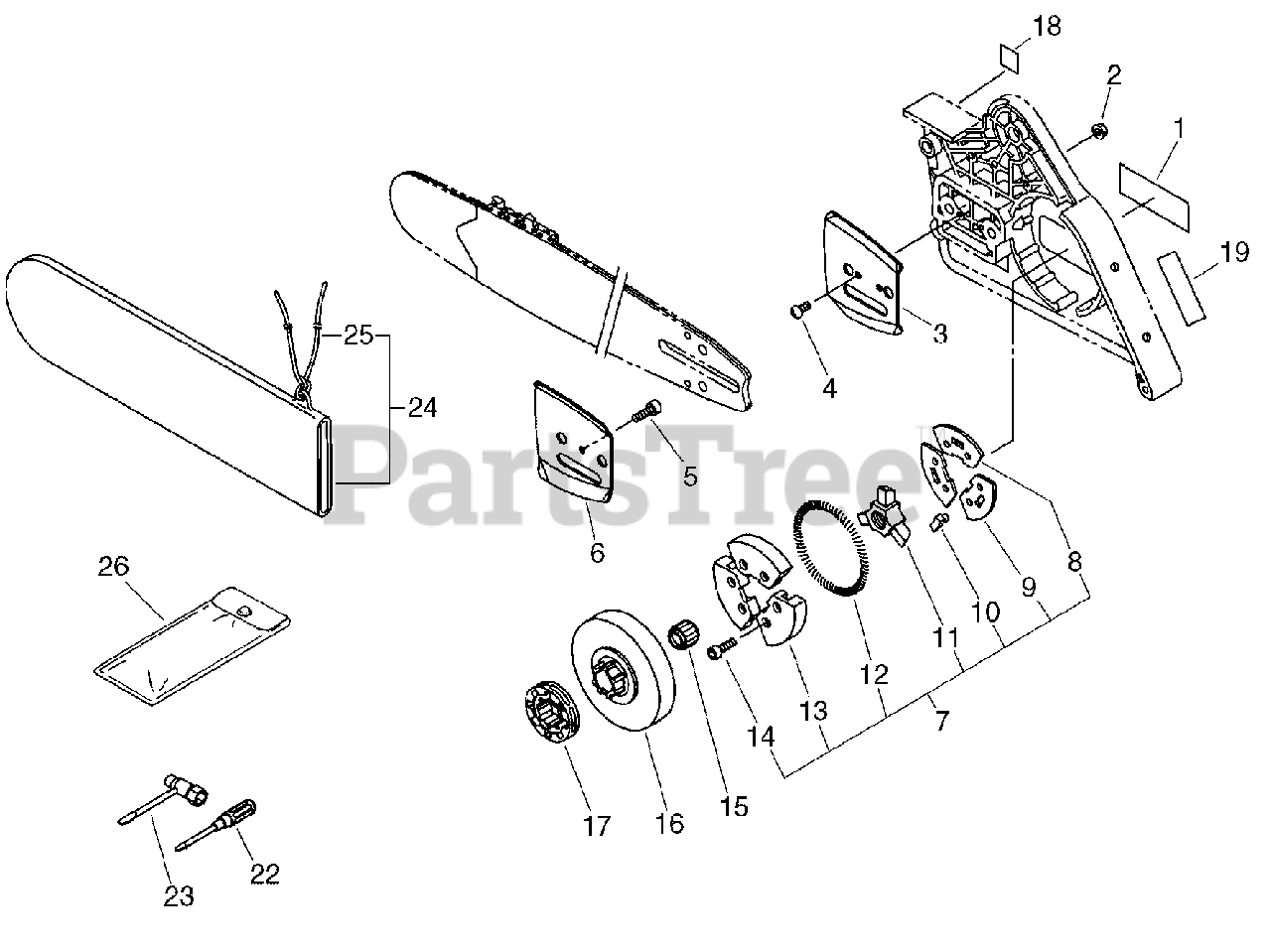

Clutch, Sprocket Parts Diagram

  • Title

1

Echo X502000560

LABEL, ECHO

$1.99

$

In Stock, only 3 left!

0

2

Echo 43301912330

NUT, FLANGE M8×1.25
(Superseded to V265000200)

$2.49

$

In Stock, Qty 20+

0

3

Echo 43301230830

PLATE, GUIDE - OUTER

$6.49

$

In Stock, only 2 left!

0

4

Echo 90024103006

SCREW 3×6

$0.99

$

In Stock, only 2 left!

0

5

Echo 900241-04008

SCREW 4×8

$0.99

$

In Stock, Qty 10

0

6

Echo 43301330830

PLATE, GUIDE - INNER

$6.49

$

In Stock, only 2 left!

0

7

Echo 17500030832

CLUTCH ASSY

$149.99

$

Usually ships in 2-4 days

0

8

Echo 17501930830

PLATE, CLUTCH

$3.49

$

Usually ships in 2-4 days

0

9

Echo 17502930830

PLATE, CLUTCH

$3.99

$

Usually ships in 2-4 days

0

10

Echo 17505930830

SPACER

$1.99

$

Usually ships in 2-4 days

0

11

Echo 17501630830

HUB, CLUTCH

$19.99

$

Usually ships in 2-4 days

0

12

Echo 17501830830

SPRING, CLUTCH

$3.99

$

In Stock, only 2 left!

0

13

Echo 17500230831

SHOE SET, CLUTCH

$33.99

$

Usually ships in 2-4 days

0

14

Echo 90010504008

BOLT 4×8

$0.99

$

In Stock, Qty 6

0

15

Echo 17501230831

BEARING, NEEDLE

$15.99

$

Usually ships in 2-4 days

0

16

Echo 17510530831

DRUM, CLUTCH

$55.99

$

Usually ships in 2-4 days

0

17

Echo 682100

SPROCKET, RIM 3/8"×7T

$17.99

$

In Stock, Qty 7

0

18

Echo 89031639130

LABEL, CHAIN BRAKE
(Superseded to 89031639131)

$2.49

$

Usually ships in 2-4 days

0

19

Echo 89015530130

LABEL, CAUTION
(Superseded to X524000680)

$4.49

$

Usually ships in 2-4 days

0

22

Echo 89581203930

SCREWDRIVER, PHILLIPS

$4.99

$

In Stock, only 1 left!

0

23

Echo 89541006960

T-WRENCH 13×19×180
(Superseded to 89541006961)

$4.49

$

In Stock, only 2 left!

0

24

Echo P021014640

SCABBARD
(Superseded to X490000481)

$24.99

$

Usually ships in 2-4 days

0

25

Echo 89856814530

ROPE 5×900

$1.99

$

Usually ships in 2-4 days

0

26

Echo 89851039130

BAG, TOOL

$1.99

$

In Stock, only 3 left!

0
