CS-8002 - Echo Chainsaw (SN: 36001001 - 36001405) Cylinder, Crankcase, Piston Parts Diagram

CS-8002: 421x244x311 mm dimensions, 7.6 kg weight (saw only). Fuel tank 820 ml, oil tank 400 ml. Fuel 50:1 oil/fuel (2 % iso-L-1 Gd) or 25:1 (4 %) Jaso FB. Guide bar 450-800 mm, chain pitch 9.53 mm (3/8"), gauge 1.47 mm (0.058"). 2-cycle 80.7 cc engine, 3.93 kW, 12 500 rpm, 2 500 rpm max with attachment, idle 2 500 rpm. Fuel consumption 1.70 kg/h. Features: auto clutch, recoil starter, anti-vibration, chain brake.

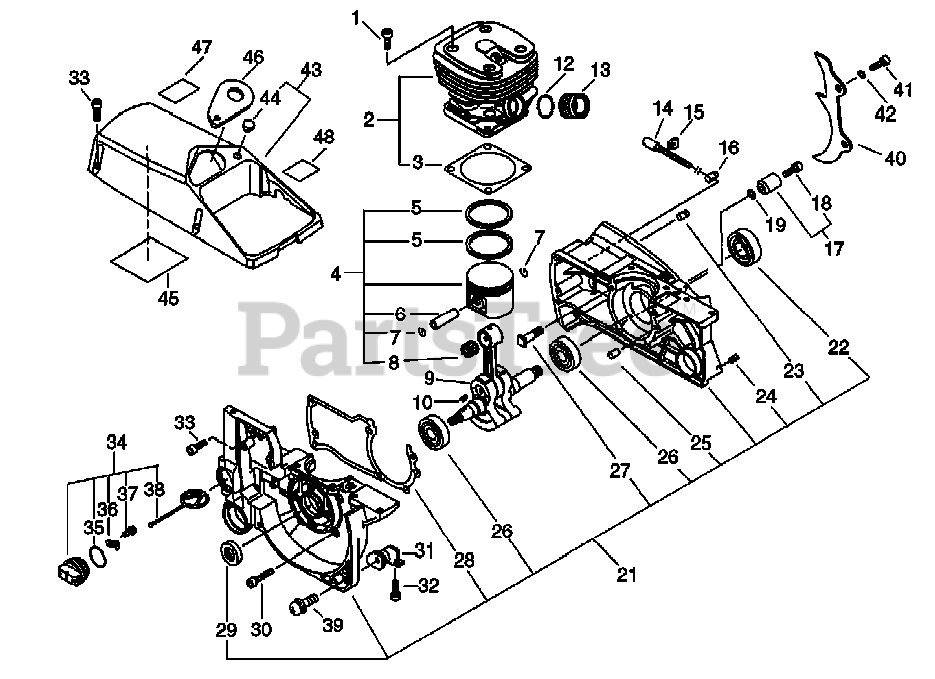

Cylinder, Crankcase, Piston Parts Diagram

  • Title

1

Echo 90016206025

BOLT 6×25

$1.99

$

Usually ships in 2-4 days

0

1

Echo 90016206025

BOLT 6×25

$1.99

$

Usually ships in 2-4 days

0

2

Echo P021005410

CYLINDER ASSY

$224.99

$

Usually ships in 2-4 days

0

2

Echo P021005410

CYLINDER ASSY

$224.99

$

Usually ships in 2-4 days

0

3

Echo 10101030830

GASKET, CYLINDER

$3.49

$

In Stock, Qty 10

0

3

Echo 10101030830

GASKET, CYLINDER

$3.49

$

In Stock, Qty 10

0

4

Echo P021005420

PISTON KIT
(Superseded to P021005421)

$109.99

$

Usually ships in 2-4 days

0

4

Echo P021005420

PISTON KIT
(Superseded to P021005421)

$109.99

$

Usually ships in 2-4 days

0

5

Echo 10001130831

RING, PISTON

$9.99

$

Usually ships in 2-4 days

0

5

Echo 10001130831

RING, PISTON

$9.99

$

Usually ships in 2-4 days

0

6

Echo V611000000

PIN, PISTON

$9.99

$

Usually ships in 2-4 days

0

6

Echo V611000000

PIN, PISTON

$9.99

$

Usually ships in 2-4 days

0

7

Echo 10001530830

RING, RETAINING

$0.99

$

In Stock, Qty 6

0

7

Echo 10001530830

RING, RETAINING

$0.99

$

In Stock, Qty 6

0

8

Echo 10001230830

BEARING, NEEDLE

$22.99

$

Usually ships in 2-4 days

0

8

Echo 10001230830

BEARING, NEEDLE

$22.99

$

Usually ships in 2-4 days

0

9

Echo 10010030830

CRANKSHAFT

$254.99

$

Usually ships in 2-4 days

0

9

Echo 10010030830

CRANKSHAFT

$254.99

$

Usually ships in 2-4 days

0

10

Echo 10014230830

KEY, WOODRUFF

$1.99

$

In Stock, Qty 19

0

10

Echo 10014230830

KEY, WOODRUFF

$1.99

$

In Stock, Qty 19

0

12

Echo 13051630830

BAND

$2.49

$

In Stock, Qty 10

0

12

Echo 13051630830

BAND

$2.49

$

In Stock, Qty 10

0

13

Echo 13051030830

ADAPTOR, INTAKE

$13.99

$

In Stock, only 2 left!

0

13

Echo 13051030830

ADAPTOR, INTAKE

$13.99

$

In Stock, only 2 left!

0

14

Echo 43301611031

SCREW, ADJUSTER

$4.99

$

In Stock, Qty 20+

0

14

Echo 43301611031

SCREW, ADJUSTER

$4.99

$

In Stock, Qty 20+

0

15

Echo 43302811030

CLIP

$0.99

$

In Stock, Qty 20+

0

15

Echo 43302811030

CLIP

$0.99

$

In Stock, Qty 20+

0

16

Echo 43301402830

TENSIONER, CHAIN

$5.99

$

In Stock, Qty 18

0

16

Echo 43301402830

TENSIONER, CHAIN

$5.99

$

In Stock, Qty 18

0

17

Echo P021014070

CHAIN CATCHER KIT

$4.99

$

Usually ships in 2-4 days

0

17

Echo P021014070

CHAIN CATCHER KIT

$4.99

$

Usually ships in 2-4 days

0

18

Echo 90016205020

BOLT 5×20

$1.49

$

In Stock, Qty 20+

0

18

Echo 90016205020

BOLT 5×20

$1.49

$

In Stock, Qty 20+

0

19

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

19

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

21

Echo 10020430832

CRANKCASE KIT
(Superseded to 10020430833)

$340.99

$

Usually ships in 2-4 days

0

21

Echo 10020430832

CRANKCASE KIT
(Superseded to 10020430833)

$340.99

$

Usually ships in 2-4 days

0

22

Echo 10021330830

SEAL, OIL

$6.99

$

In Stock, only 2 left!

0

22

Echo 10021330830

SEAL, OIL

$6.99

$

In Stock, only 2 left!

0

23

Echo 436114-13930

VENT ASSY
(Superseded to 43611413930)

$7.49

$

In Stock, Qty 20+

0

23

Echo 436114-13930

VENT ASSY
(Superseded to 43611413930)

$7.49

$

In Stock, Qty 20+

0

24

Echo 90034550010

PIN, SPRING 5×10

$1.99

$

Usually ships in 2-4 days

0

24

Echo 90034550010

PIN, SPRING 5×10

$1.99

$

Usually ships in 2-4 days

0

25

Echo 10021502830

PIN, LOCATING 5×10

$0.99

$

Usually ships in 2-4 days

0

25

Echo 10021502830

PIN, LOCATING 5×10

$0.99

$

Usually ships in 2-4 days

0

26

Echo 90081036203

BEARING, BALL 6203 C3

$15.99

$

Usually ships in 2-4 days

0

26

Echo 90081036203

BEARING, BALL 6203 C3

$15.99

$

Usually ships in 2-4 days

0

27

Echo 43301119830

STUD, GUIDE BAR 8
(Superseded to 43301119831)

$3.49

$

In Stock, Qty 20+

0

27

Echo 43301119830

STUD, GUIDE BAR 8
(Superseded to 43301119831)

$3.49

$

In Stock, Qty 20+

0

28

Echo 10024230830

GASKET, CRANKCASE

$6.99

$

Usually ships in 2-4 days

0

28

Echo 10024230830

GASKET, CRANKCASE

$6.99

$

Usually ships in 2-4 days

0

29

Echo 10021219830

SEAL, OIL

$6.49

$

In Stock, only 2 left!

0

29

Echo 10021219830

SEAL, OIL

$6.49

$

In Stock, only 2 left!

0

30

Echo 90016205035

BOLT M5×35

$1.99

$

In Stock, Qty 14

0

30

Echo 90016205035

BOLT M5×35

$1.99

$

In Stock, Qty 14

0

31

Echo 10092130830

CUSHION

$11.99

$

In Stock, only 2 left!

0

31

Echo 10092130830

CUSHION

$11.99

$

In Stock, only 2 left!

0

32

Echo 90016205014

BOLT 5×14

$1.49

$

In Stock, Qty 7

0

32

Echo 90016205014

BOLT 5×14

$1.49

$

In Stock, Qty 7

0

33

Echo 90016205020

BOLT 5×20

$1.49

$

In Stock, Qty 20+

0

33

Echo 90016205020

BOLT 5×20

$1.49

$

In Stock, Qty 20+

0

34

Echo 43600131730

CAP ASSY, OIL

$8.99

$

Usually ships in 2-4 days

0

34

Echo 43600131730

CAP ASSY, OIL

$8.99

$

Usually ships in 2-4 days

0

35

Echo 90072100025

O-RING 25

$2.99

$

In Stock, Qty 20+

0

35

Echo 90072100025

O-RING 25

$2.99

$

In Stock, Qty 20+

0

36

Echo 13105019830

RETAINER, CONNECTOR
(Superseded to Discontinued)

$

$

Not available

36

Echo 13105019830

RETAINER, CONNECTOR
(Superseded to Discontinued)

$

$

Not available

37

Echo 90024603008

SCREW, TAPPING 3×8

$

$

Not available

37

Echo 90024603008

SCREW, TAPPING 3×8

$

$

Not available

38

Echo 13105119830

CONNECTOR, CAP L= 60 MM
(Superseded to A365000050)

$2.49

$

In Stock, Qty 20+

0

38

Echo 13105119830

CONNECTOR, CAP L= 60 MM
(Superseded to A365000050)

$2.49

$

In Stock, Qty 20+

0

39

Echo 90023805014

SCREW 5×14

$0.99

$

In Stock, Qty 11

0

39

Echo 90023805014

SCREW 5×14

$0.99

$

In Stock, Qty 11

0

40

Echo 88021030830

SPIKE, BUMPER

$11.99

$

In Stock, Qty 7

0

40

Echo 88021030830

SPIKE, BUMPER

$11.99

$

In Stock, Qty 7

0

41

Echo 90010506020

BOLT 6×20

$1.49

$

In Stock, Qty 20+

0

41

Echo 90010506020

BOLT 6×20

$1.49

$

In Stock, Qty 20+

0

42

Echo 90060500006

WASHER, SPRING 6

$0.99

$

In Stock, Qty 9

0

42

Echo 90060500006

WASHER, SPRING 6

$0.99

$

In Stock, Qty 9

0

43

Echo 10150131730

ENGINE COVER KIT - ORANGE
(Superseded to 10150138731)

$51.99

$

Usually ships in 2-4 days

0

43

Echo 10150131730

ENGINE COVER KIT - ORANGE
(Superseded to 10150138731)

$51.99

$

Usually ships in 2-4 days

0

44

Echo 10157830830

PLUG

$2.49

$

Usually ships in 2-4 days

0

44

Echo 10157830830

PLUG

$2.49

$

Usually ships in 2-4 days

0

45

Echo 10152033330

COVER

$4.49

$

Usually ships in 2-4 days

0

45

Echo 10152033330

COVER

$4.49

$

Usually ships in 2-4 days

0

46

Echo 10154130831

PLATE, GUIDE

$5.49

$

Usually ships in 2-4 days

0

46

Echo 10154130831

PLATE, GUIDE

$5.49

$

Usually ships in 2-4 days

0

47

Echo 89034539230

LABEL, CAUTION
(Superseded to 89034539231)

$3.49

$

Usually ships in 2-4 days

0

47

Echo 89034539230

LABEL, CAUTION
(Superseded to 89034539231)

$3.49

$

Usually ships in 2-4 days

0

48

Echo 89063138130

LABEL, CAUTION
(Superseded to 89063138131)

$2.99

$

Usually ships in 2-4 days

0

48

Echo 89063138130

LABEL, CAUTION
(Superseded to 89063138131)

$2.99

$

Usually ships in 2-4 days

0
