CS-802 S - Echo Chainsaw Clutch Parts Diagram

Chainsaw

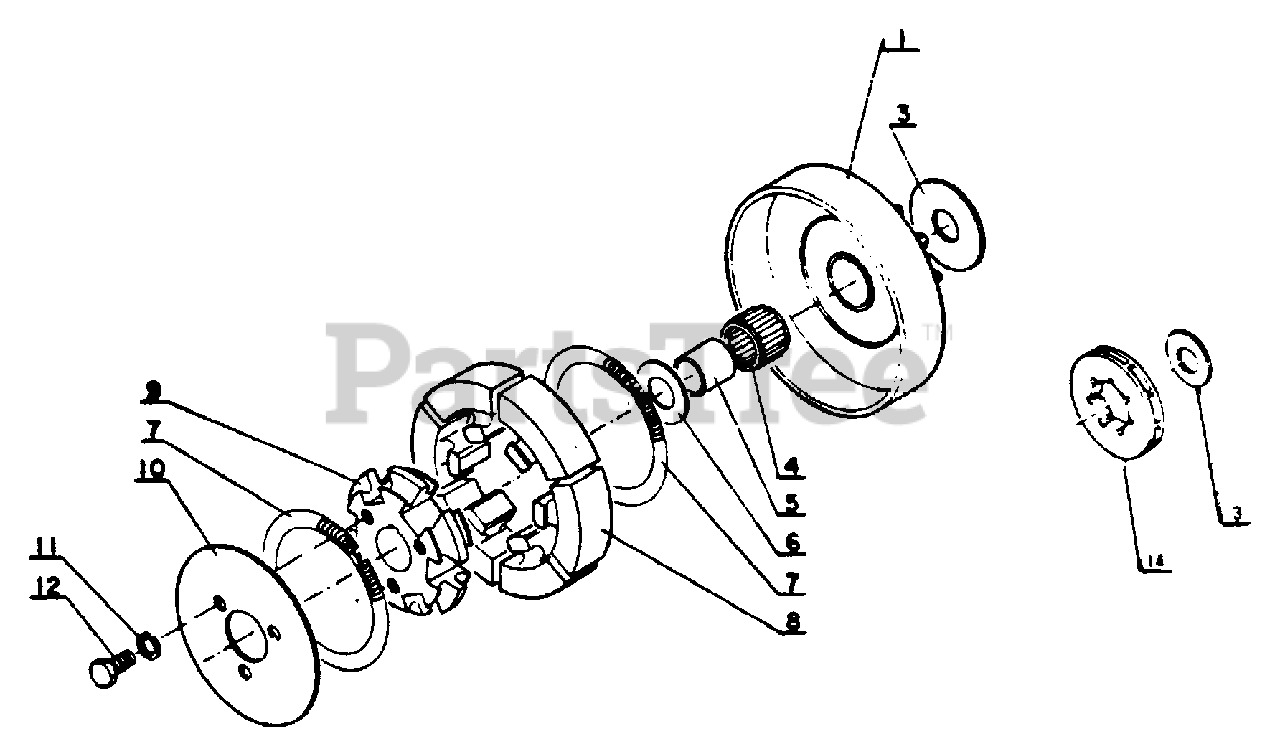

Clutch Parts Diagram

  • Title

1

Echo 17500600430

DRUM, CLUTCH
(Superseded to Discontinued)

$

$

Not available

3

Echo 17501400230

WASHER, CLUTCH

$

$

Not available

4

Echo 17501200230

BEARING, NEEDLE

$14.99

$

Usually ships in 2-4 days

0

5

Echo 17501300230

SPACER

$11.99

$

In Stock, only 1 left!

0

6

Echo 17501500230

WASHER, CLUTCH

$

$

Not available

Echo 17500000430

CLUTCH ASSY
(Superseded to Discontinued)

$

$

Not available

7

Echo 17501800430

SPRING, CLUTCH
(Superseded to 17501810231)

Note: Included in Clutch ass'y

$

$

Not available

8

Echo 17501700430

SHOE, CLUTCH

Note: Included in Clutch ass'y

$11.99

$

Usually ships in 2-4 days

0

9

Echo 17501600430

HUB, CLUTCH
(Superseded to Discontinued)

Note: Included in Clutch ass'y

$

$

Not available

10

Echo 17501900230

PLATE, CLUTCH
(Superseded to Discontinued)

Note: Included in Clutch ass'y

$

$

Not available

11

Echo 900605-00005

WASHER, SPRING 5

Note: Included in Clutch ass'y

$0.99

$

In Stock, Qty 9

0

12

Echo 90010005010

BOLT - 5×10

Note: Included in Clutch ass'y

$0.99

$

Usually ships in 2-4 days

0

14

LIM

Note: Not used on this model

$

$

Not available
