CS-802 S - Echo Chainsaw Crankshaft, Piston Parts Diagram

Chainsaw

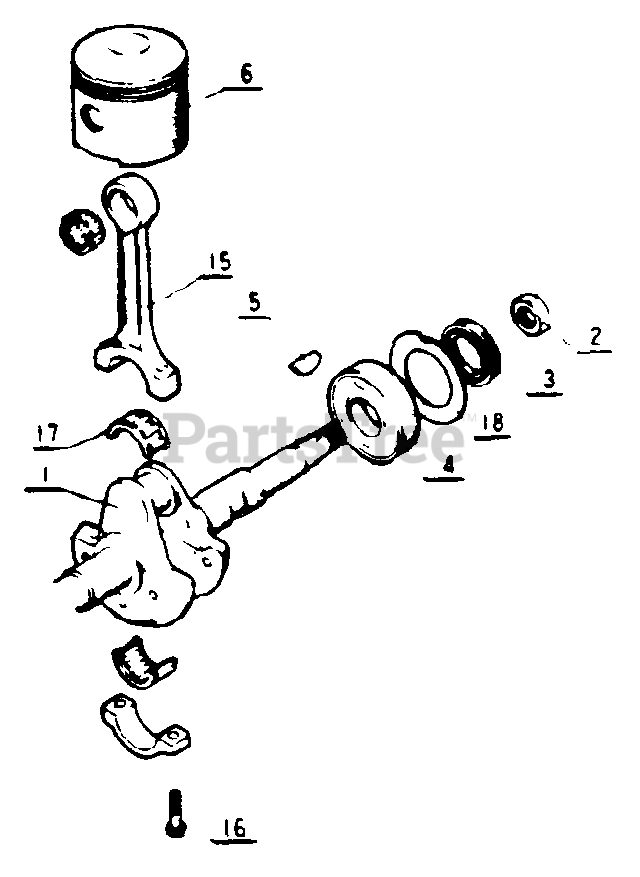

Crankshaft, Piston Parts Diagram

  • Title

1

Echo 10010500630

CRANKSHAFT ASSY
(Superseded to Discontinued)

$

$

Not available

2

Echo 10012900230

NUT

$1.49

$

Usually ships in 2-4 days

0

3

Echo 10021200330

SEAL, OIL
(Superseded to Discontinued)

$

$

Not available

4

Echo 90081036203

BEARING, BALL - 6203

$12.99

$

Usually ships in 2-4 days

0

5

Echo 90032203014

KEY - 3X14
(Superseded to 90032303014)

$1.49

$

In Stock, Qty 5

0

6

Echo 10001000430

PISTON
(Superseded to Discontinued)

$

$

Not available

7

Echo 10001100430

RING, PISTON
(Superseded to Discontinued)

$

$

Not available

8

Echo 10001200430

BEARING, NEEDLE
(Superseded to Discontinued)

$

$

Not available

9

Echo 10001400430

SPACER, PISTON
(Superseded to Discontinued)

$

$

Not available

10

Echo 10001300430

PIN, PISTON
(Superseded to Discontinued)

$

$

Not available

11

Echo 10001500230

RING, RETAINING

$0.99

$

Usually ships in 2-4 days

0

12

Echo 10014200330

KEY

$1.49

$

Usually ships in 2-4 days

0

13

Echo 10014300230

WASHER - 7/16"
(Superseded to Discontinued)

$

$

Not available

14

Echo 10014400230

NUT

$1.49

$

Usually ships in 2-4 days

0

15

Echo 10011400430

ROD, CONNECTING
(Superseded to Discontinued)

$

$

Not available

16

Echo 10011800430

BOLT
(Superseded to 90010505018)

$1.49

$

In Stock, only 1 left!

0

17

Echo 10011300431

Roller retainer
(Superseded to Discontinued)

$

$

Not available

18

------------------

ADJUSTING WASHER

Note: Not used on this model

$

$

Not available
