CS-802 S - Echo Chainsaw Handle Parts Diagram

Chainsaw

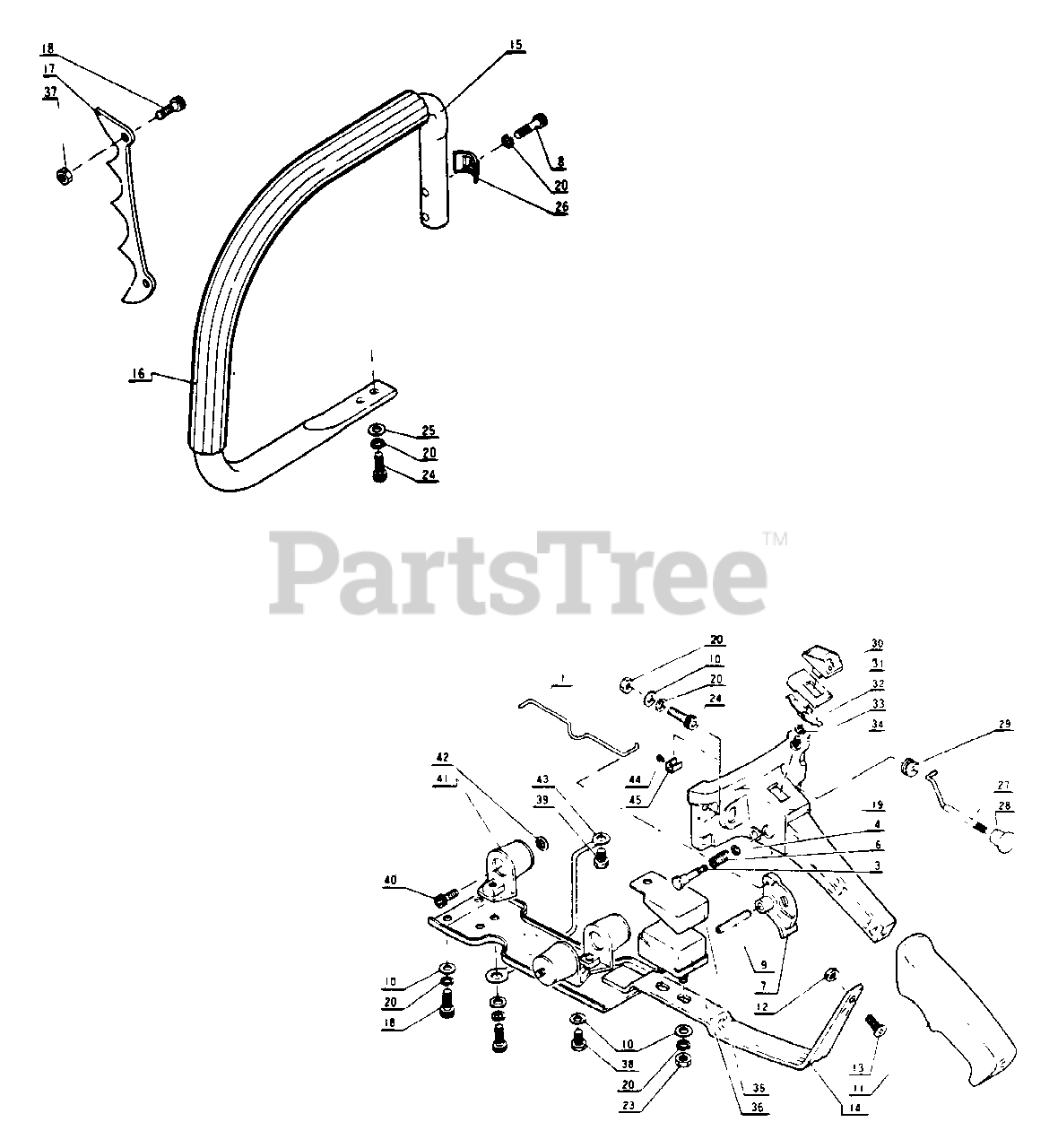

Handle Parts Diagram

  • Title

1

Echo 17801100430

ROD, CHOKE
(Superseded to Discontinued)

$

$

Not available

3

Echo 17801200431

LOCKOUT, TRIGGER
(Superseded to Discontinued)

$

$

Not available

4

Echo 90070000003

E-RING 3

$0.99

$

In Stock, Qty 9

0

6

Echo 17801300430

LEAF SPRING
(Superseded to Discontinued)

$

$

Not available

7

Echo 17801000430

TRIGGER, THROTTLE
(Superseded to Discontinued)

$

$

Not available

8

Echo 35121800430

BOLT
(Superseded to 90010506035)

$1.49

$

In Stock, Qty 20+

0

9

Echo 17811000230

PIN

$1.99

$

Usually ships in 2-4 days

0

10

Echo 90060000006

WASHER 6.5×11.5×0.8

$0.99

$

In Stock, Qty 20+

0

11

Echo 35101200430

RIGHT HANDLE RUBBER
(Superseded to Discontinued)

$

$

Not available

12

Echo 14571300630

NUT, LOCK

$1.99

$

Usually ships in 2-4 days

0

13

Echo 90021206010

SCREW - 6×10

$

$

Currently unavailable

14

Echo 35101100631

RIGHT HANDLE SUPPORTER
(Superseded to Discontinued)

$

$

Not available

15

Echo 35120500631

LEFT HANDLE
(Superseded to Discontinued)

$

$

Not available

16

Echo 35121600430

GRIP, HANDLE

$

$

Currently unavailable

17

Echo 88021000630

BUMPER, SPIKED
(Superseded to Discontinued)

$

$

Not available

18

Echo 88021100430

BOLT
(Superseded to 90010506015)

$

$

Not available

19

Echo 35101000630

RIGHT HANDLE
(Superseded to Discontinued)

$

$

Not available

20

Echo 90060500006

WASHER, SPRING 6

$0.99

$

In Stock, Qty 15

0

23

Echo 14571300630

NUT, LOCK

$1.99

$

Usually ships in 2-4 days

0

24

Echo 35101400130

BOLT
(Superseded to 90010506020)

$1.49

$

In Stock, Qty 20+

0

25

WASHER

Note: NOT USED ON THIS MODEL

$

$

Not available

26

Echo 35121900430

HANDLE SET PLATE
(Superseded to Discontinued)

$

$

Not available

27

Echo 17850100430

ROD, CHOKE
(Superseded to Discontinued)

$

$

Not available

28

Echo 17851200430

BUTTON

$3.49

$

Usually ships in 2-4 days

0

29

Echo 17881002830

GROMMET, RUBBER

$0.99

$

Usually ships in 2-4 days

0

30

Echo 16341000630

IGNITION SWITCH ASSY
(Superseded to Discontinued)

$

$

Not available

31

Echo 16341100631

GUIDE, SWITCH
(Superseded to Discontinued)

$

$

Not available

32

Echo 16341200630

CONTACT, SWITCH

$1.99

$

Usually ships in 2-4 days

0

33

Echo 900605-00004

WASHER, SPRING 4 MM

$0.99

$

In Stock, Qty 20+

0

34

Echo 90021004008

SCREW - 4×8
(Superseded to 90022004008)

$0.99

$

In Stock, Qty 6

0

35

Echo 35102200630

STOPPER B
(Superseded to Discontinued)

$

$

Not available

36

Echo 35102100630

STOPPER A
(Superseded to Discontinued)

$

$

Not available

37

Echo 900500-00006

NUT, HEX M6

$0.99

$

In Stock, Qty 20+

0

38

Echo 10091500630

BOLT

$

$

Currently unavailable

39

Echo 90010006010

BOLT 6×10

$0.99

$

In Stock, only 1 left!

0

40

Echo 10102300830

BOLT
(Superseded to 90010505015)

$1.49

$

Usually ships in 2-4 days

0

41

Echo 10090500632

CUSHION
(Superseded to Discontinued)

$

$

Not available

42

Echo 10091400630

WASHER, SEAL
(Superseded to Discontinued)

$

$

Not available

43

Echo 16200500430

LEAD - GROUND
(Superseded to Discontinued)

$

$

Not available

44

Echo 35102300630

PLATE - GROUND
(Superseded to Discontinued)

$

$

Not available

45

Echo 89001100130

RIVET
(Superseded to Discontinued)

$

$

Not available
