CS-802 S - Echo Chainsaw Ignition Parts Diagram

Chainsaw

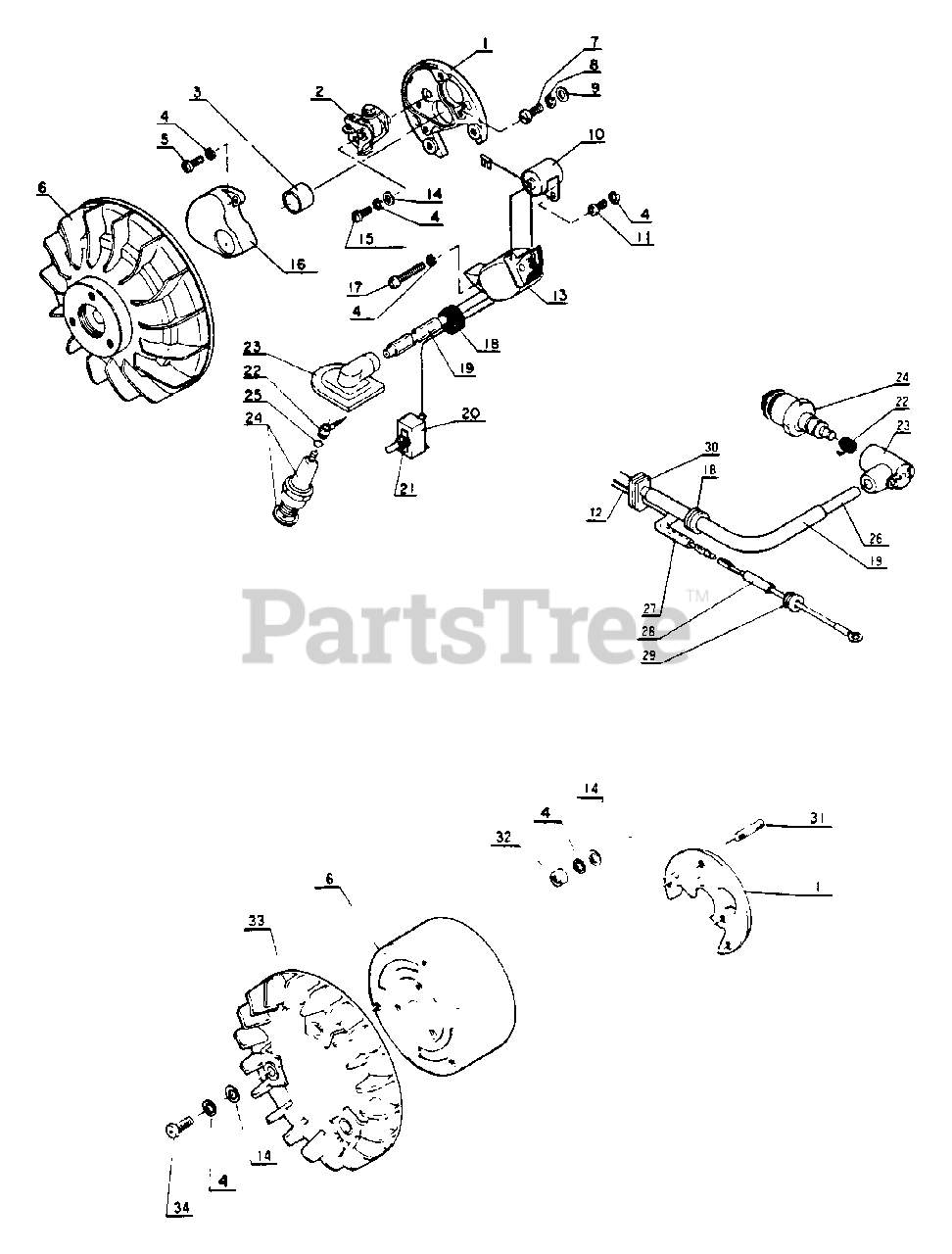

Ignition Parts Diagram

  • Title

Echo 15000000430

FLYWHEEL
(Superseded to Discontinued)

$

$

Not available

Echo 15010000430

STATOR ASSY
(Superseded to Discontinued)

Note: Included in Magneto ass'y

$

$

Not available

1

Echo 15013200230

CONTACT POINT SET
(Superseded to Discontinued)

Note: Included in Stator ass'y

$

$

Not available

2

Echo 15010100230

ARM, BREAKER
(Superseded to Discontinued)

Note: Included in Stator ass'y

$

$

Not available

3

Echo 15031000230

CAM
(Superseded to Discontinued)

Note: Included in Magneto ass'y

$

$

Not available

4

Echo 900605-00004

WASHER, SPRING 4 MM

Note: Included in Stator ass'y

$0.99

$

In Stock, Qty 20+

0

5

Echo 90021004012

SCREW - 4×12
(Superseded to 90022004012)

Note: Included in Stator ass'y

$0.99

$

Usually ships in 2-4 days

0

6

Echo 15020000430

FLYWHEEL
(Superseded to Discontinued)

Note: Included in Magneto ass'y

$

$

Not available

7

Echo 90021005014

SCREW - 5×14
(Superseded to 90022005014)

$0.99

$

In Stock, Qty 7

0

8

Echo 900605-00005

WASHER, SPRING 5

$0.99

$

In Stock, Qty 9

0

9

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

10

Echo 15012700430

CONDENSER
(Superseded to Discontinued)

Note: Included in Stator ass'y

$

$

Not available

11

Echo 90021004008

SCREW - 4×8
(Superseded to 90022004008)

Note: Included in Stator ass'y

$0.99

$

In Stock, Qty 6

0

------------------

LEAD, ON-OFF

Note: NOT USED ON THIS MODEL

$

$

Not available

13

Echo 15012600331

COIL, IGNITION

Note: Included in Stator ass'y

$158.99

$

Usually ships in 2-4 days

0

14

Echo 90060000004

WASHER 4 MM

Note: Included in Stator ass'y

$0.99

$

In Stock, Qty 9

0

15

Echo 90020004008

SCREW - 4×8
(Superseded to 90022004008)

$0.99

$

In Stock, Qty 6

0

16

Echo 15012800330

COVER
(Superseded to Discontinued)

Note: Included in Stator ass'y

$

$

Not available

17

Echo 90021004022

SCREW - 4×22

Note: Included in Stator ass'y

$

$

Currently unavailable

18

Echo 15011000430

BUSHING

$

$

Currently unavailable

19

Echo 15011100430

TUBE, INSULATOR
(Superseded to Discontinued)

$

$

Not available

20

SWITCH, IGNITION

Note: NOT USED ON THIS MODEL

$

$

Not available

21

CAP

Note: NOT USED ON THIS MODEL

$

$

Not available

22

Echo 15901100510

TERMINAL, SPARK PLUG CAP
(Superseded to 15901103432)

$1.99

$

In Stock, Qty 20+

0

23

Echo 15901200630

CAP, SPARK PLUG
(Superseded to 15901203433)

$8.49

$

In Stock, Qty 20+

0

24

Echo 159010-00330

SPARK PLUG - BM6A
(Superseded to Discontinued)

$

$

Not available

------------------

CLIP

Note: NOT USED ON THIS MODEL

$

$

Not available

26

Echo 15012900430

LEAD, SPARK PLUG
(Superseded to Discontinued)

Note: Included in Stator ass'y

$

$

Not available

27

Echo 15011300430

TUBE
(Superseded to Discontinued)

$

$

Not available

28

Echo 15013100430

LEAD - GROUND
(Superseded to Discontinued)

$

$

Not available

29

Echo 15011400430

GROMMET
(Superseded to 15011400630)

$

$

Not available

30

Echo 15011200430

BUSHING
(Superseded to Discontinued)

$

$

Not available

31

STUD

Note: NOT USED ON THIS MODEL

$

$

Not available

32

NUT

Note: NOT USED ON THIS MODEL

$

$

Not available

33

FAN

Note: NOT USED ON THIS MODEL

$

$

Not available

34

SCREW

Note: NOT USED ON THIS MODEL

$

$

Not available
