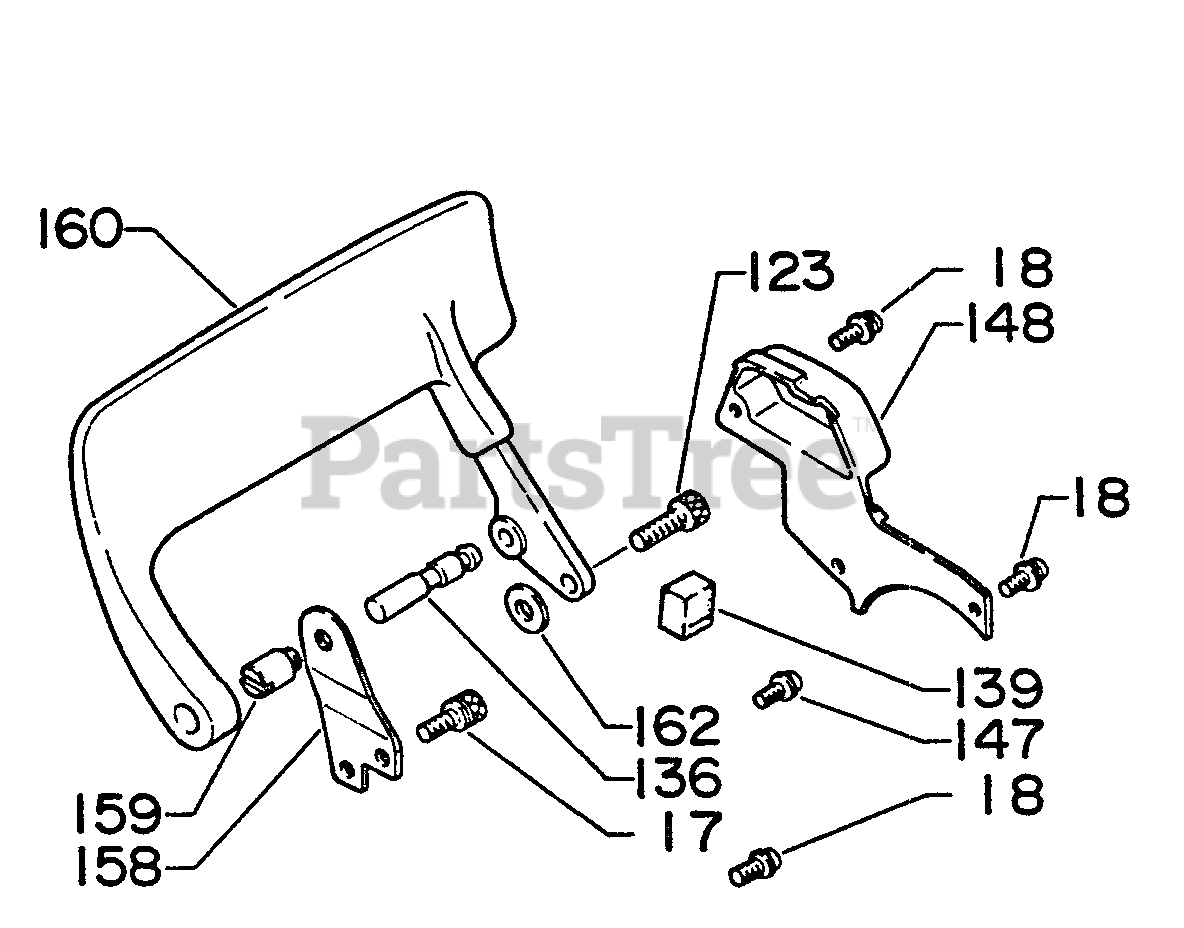

CS-900 EVL - Echo Chainsaw (SN: 06801 - 99999) Hand Guard Parts Diagram

Technical Data: - Dimensions: 468 x 280 x 295 mm (18.4 x 11.0 x 11.6 in) - Weight (dry, power head, no chain/guide bar): 19.8 lb - Engine: air-cooled, 2-stroke, single cylinder, 91.6 cc (5.590 cu in) - Carburetor: Walbro diaphragm - Ignition: magneto & CDI (capacitor discharge) - Spark plug: NGK BPM7A (Champion CJ-7Y) - Starter: recoil - Transmission: automatic centrifugal clutch - Fuel: gasoline + 2-stroke oil, 20:1 or 32:1 (special oil) - Fuel tank: 0.92 L (31.1 US fl oz) - Oil tank: 0.46 L (15.6 US fl oz) - motor oil for chain oil - Guide bar: 65H63, 55H63, 45H63; gauge 0.063 in - Chain pitch: 4.04 in - Accessories: optional chain brake, front/rear hand guard, throttle lockout, chain catcher, anti-vibration device; automatic & manual oilers.
