CS47330x37A - Murray Chipper/Shredder (2002) Cylinder Assembly Parts Diagram

Chipper/Shredder

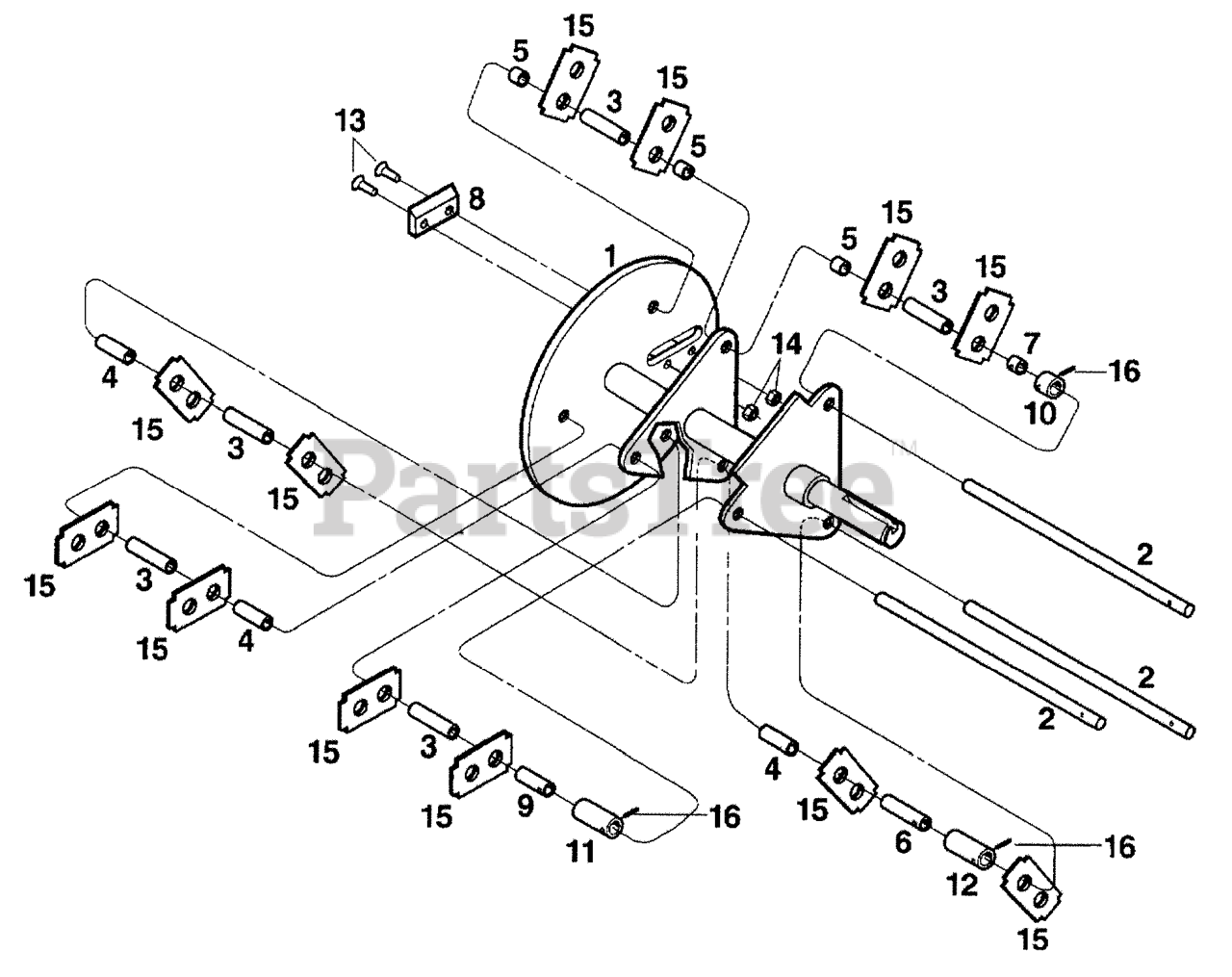

Cylinder Assembly Parts Diagram

  • Title

1

Murray 1762607MA

Weldment, Cylinder

$507.99

$

Usually ships in 2-12 days

0

2

Murray 1762611MA

Pin, Cylinder

$39.99

$

Usually ships in 2-12 days

0

3

Murray 1762612MA

Spacer, Long

$11.99

$

Usually ships in 2-12 days

0

4

Murray 1762613MA

Spacer, Medium 2"

$10.99

$

Usually ships in 2-12 days

0

5

Murray 1762614MA

Spacer, Short 11/16"

$

$

Not available

6

Murray 1762615MA

Spacer, Long Locking 2"

$15.99

$

Usually ships in 2-12 days

0

7

Murray 1762616MA

Spacer, Short Locking 11/16"

$14.99

$

Usually ships in 2-12 days

0

8

Murray 1764810MA

Kit, Chipper Blade

Note: (Incl. Ref. No's 8, 13 & 14)

$112.99

$

Usually ships in 2-12 days

0

9

Murray 1762657MA

Spacer, Medium Locking 1-5/16"

$18.99

$

Usually ships in 2-12 days

0

10

Murray 1763110MA

Sleeve, Short Outer 1/2"

$16.99

$

Usually ships in 2-12 days

0

11

Murray 1763111MA

Sleeve, Medium Outer 1-1/8"

$19.99

$

Usually ships in 2-12 days

0

12

Murray 1763112MA

Sleeve, Long Outer 1-3/4"

$29.99

$

In Stock, only 1 left!

0

13

Murray 1763119

Screw, Socket Head 1/4-20 x 1"

$

$

Currently unavailable

14

Murray 1908125MA

Locknut, Hex 1/4-20

$3.99

$

Usually ships in 2-12 days

0

15

Murray 1915700 HT

Blade, Shredder

$

$

Currently unavailable

16

Murray 97129MA

Pin, Roll 3/16 x 3/4

$3.99

$

Usually ships in 2-12 days

0

17

Murray 1763449MA

Kit, Spacer

Note: (Incl. Ref 3, 4, 5, 6, 7, 9, 10, 11, 12 & 16); Item not included with unit, order separately.

$175.99

$

Usually ships in 2-12 days

0

--

Murray 1762606MA

Assembly, Cylinder

Note: (Includes items 1 - 17)

$

$

Not available
