CSG-670 - Echo Cut-Off Saw (Type 1E) (SN: 001001 - 999999) Intake, Exhaust Parts Diagram

Cut-Off Saw (Type 1E)

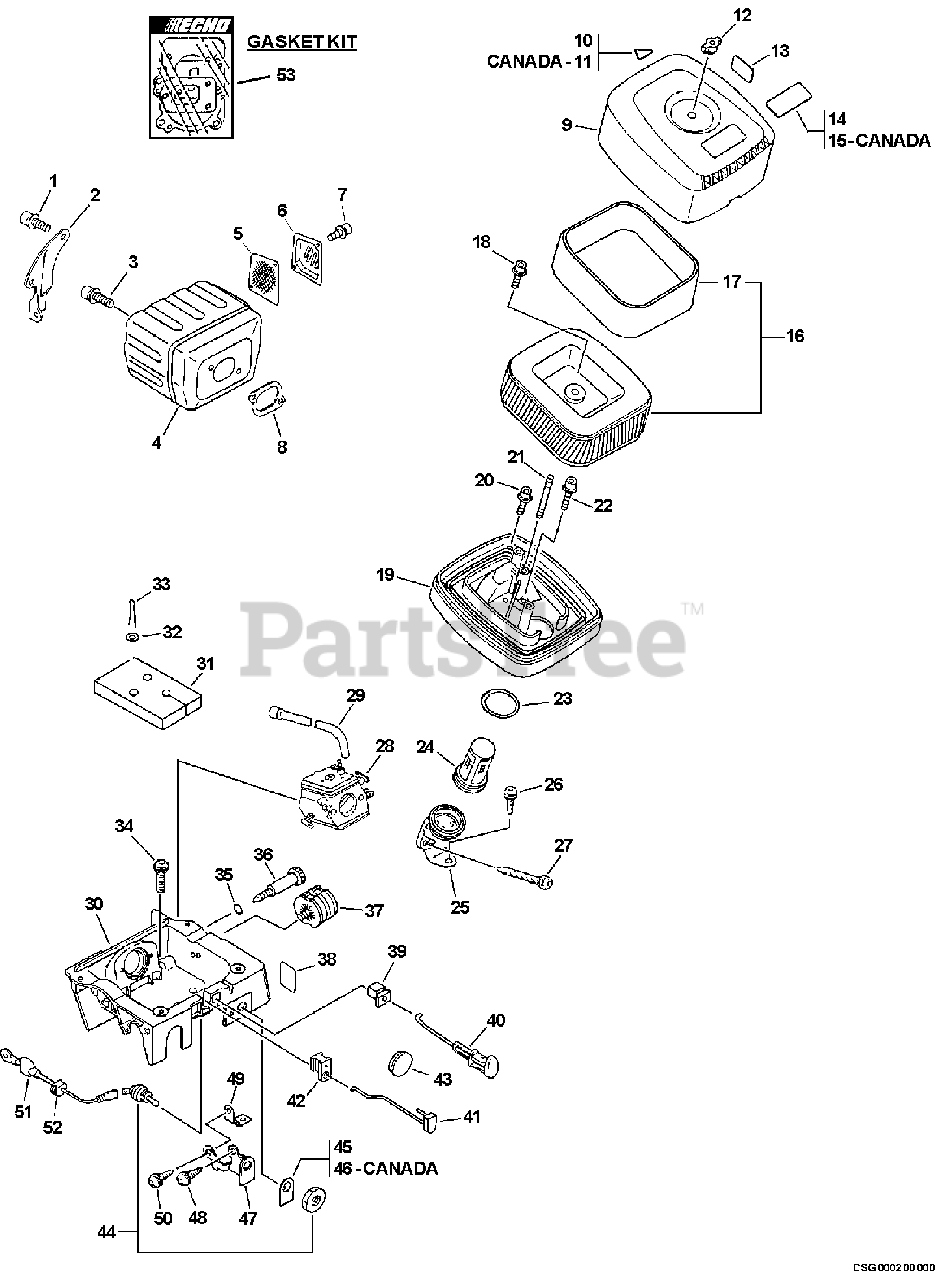

Intake, Exhaust Parts Diagram

  • Title

1

Echo 90016205014

BOLT 5×14

$1.49

$

In Stock, Qty 7

0

2

Echo 14571132430

BRACKET, MUFFLER

$7.49

$

In Stock, only 3 left!

0

3

Echo 90016205020

BOLT 5×20

$1.49

$

In Stock, Qty 20+

0

4

Echo 14561032430

MUFFLER
(Superseded to A300000781)

$95.99

$

In Stock, Qty 6

0

5

Echo 14586232630

SCREEN, SPARK ARRESTER

Note: Included In 88990007060 - Top End Overhaul Kit

$3.99

$

Usually ships in 2-4 days

0

6

Echo 14586106061

GUIDE, EXHAUST
(Superseded to 14586106062)

$3.99

$

Usually ships in 2-4 days

0

7

Echo 90016204010

BOLT 4×10

$1.49

$

In Stock, Qty 20+

0

8

Echo 14551032431

GASKET, EXHAUST

Note: Also Included In GASKET KIT, Also Included In 88990007060 - Top End Overhaul Kit

$3.99

$

In Stock, only 3 left!

0

9

Echo 13031306061

COVER, AIR FILTER

$27.99

$

Usually ships in 2-4 days

0

10

Echo 89005707060

LABEL

$2.99

$

Usually ships in 2-4 days

0

11

Echo 89035507060

LABEL

Note: CANADA MODELS

$1.99

$

Usually ships in 2-4 days

0

12

Echo 13032205261

NUT

$1.99

$

Usually ships in 2-4 days

0

13

Echo 89016007060

LABEL, CAUTION

$2.99

$

Usually ships in 2-4 days

0

14

Echo X503006280

LABEL, MODEL

$2.99

$

Usually ships in 2-4 days

0

15

Echo X503006450

LABEL - MODEL CSG-670

Note: CANADA MODELS

$

$

Currently unavailable

16

Echo 13030507061

FILTER, AIR

Note: Includes ITEM 17 Included In 88990007060 - Top End Overhaul Kit

$54.99

$

Usually ships in 2-4 days

0

17

Echo 13030525061

FILTER, AIR

Note: Included In 88990007060 - Top End Overhaul Kit

$12.99

$

In Stock, only 1 left!

0

18

Echo 13043507060

BOLT - 5×16

Note: Included In 88990007060 - Top End Overhaul Kit

$12.99

$

Usually ships in 2-4 days

0

19

Echo 13031407062

CASE, AIR FILTER

Note: Included In 88990007060 - Top End Overhaul Kit

$16.99

$

Usually ships in 2-4 days

0

20

Echo 90023805016

SCREW 5×16

$0.99

$

In Stock, Qty 20+

0

21

Echo 13071206061

BOLT 5

Note: Included In 88990007060 - Top End Overhaul Kit

$1.99

$

Usually ships in 2-4 days

0

22

Echo 900238-05025

SCREW 5×25

$0.99

$

In Stock, Qty 20+

0

23

Echo V540000090

SEAL

Note: Included In 88990007060 - Top End Overhaul Kit

$10.99

$

Usually ships in 2-4 days

0

24

Echo 13082106060

SCREEN, FILTER

$6.99

$

Usually ships in 2-4 days

0

25

Echo 13051806060

ELBOW

$34.99

$

Usually ships in 2-4 days

0

26

Echo 90025205014

SCREW 5×14

$0.99

$

Usually ships in 2-4 days

0

27

Echo 90025205053

SCREW 5×53

$0.99

$

Usually ships in 2-4 days

0

28

Echo 12300063331

CARBURETOR - HDA-166A

$126.99

$

Usually ships in 2-4 days

0

29

Echo 13011019830

PIPE, IMPULSE
(Superseded to 13011019831)

$3.49

$

In Stock, only 3 left!

0

30

Echo A220000020

CASE, CARBURETOR

$29.99

$

Usually ships in 2-4 days

0

31

Echo 13033106060

PAD, FOAM

$3.99

$

Usually ships in 2-4 days

0

32

Echo 43316219930

WASHER

$0.99

$

In Stock, only 3 left!

0

33

Echo 90030030018

PIN, COTTER 3×18
(Superseded to Discontinued)

$

$

Not available

34

Echo 90016205020

BOLT 5×20

$1.49

$

In Stock, Qty 20+

0

35

Echo 90072020007

O-RING 7

$1.49

$

Usually ships in 2-4 days

0

36

Echo 12901307061

SCREW, IDLE ADJUST - GRAY

$7.49

$

Usually ships in 2-4 days

0

37

Echo 10090532331

CUSHION

$27.99

$

Usually ships in 2-4 days

0

38

Echo 89018503460

LABEL, CAUTION - IDLE

$0.99

$

Usually ships in 2-4 days

0

39

Echo 17881033331

GROMMET, CHOKE

$1.99

$

In Stock, only 1 left!

0

40

Echo 17851007060

ROD, CHOKE

$6.99

$

Usually ships in 2-4 days

0

41

Echo C454000000

ROD, THROTTLE
(Superseded to C454000001)

$5.99

$

Usually ships in 2-4 days

0

42

Echo 17811432630

GROMMET, THROTTLE ROD

$1.99

$

Usually ships in 2-4 days

0

43

Echo 10157838431

GROMMET, PLUG

$1.99

$

Usually ships in 2-4 days

0

44

Echo 16340030830

SWITCH, ON-OFF

$12.99

$

In Stock, only 4 left!

0

45

Echo 89015730130

LABEL - SWITCH

$2.49

$

Usually ships in 2-4 days

0

46

Echo 89032511130

LABEL - SWITCH

Note: CANADA MODELS

$

$

Currently unavailable

47

Echo 16381030130

BRACKET, SWITCH

$3.49

$

Usually ships in 2-4 days

0

48

Echo 90025205010

SCREW 5×10
(Superseded to Discontinued)

$

$

Not available

49

Echo 15663532530

PLATE, GROUND

$1.99

$

Usually ships in 2-4 days

0

50

Echo 90025204010

SCREW 4×10

$0.99

$

Usually ships in 2-4 days

0

51

Echo 16202132530

LEAD - GROUND

$4.49

$

Usually ships in 2-4 days

0

52

Echo 15611404920

GROMMET

$0.99

$

In Stock, Qty 9

0

53

Echo 88900032530

GASKET KIT

$15.99

$

Usually ships in 2-4 days

0
