CSG-6700 - Echo Cut-Off Saw (SN: 001001 - 002600) Cart Kit Parts Diagram

Cut-Off Saw

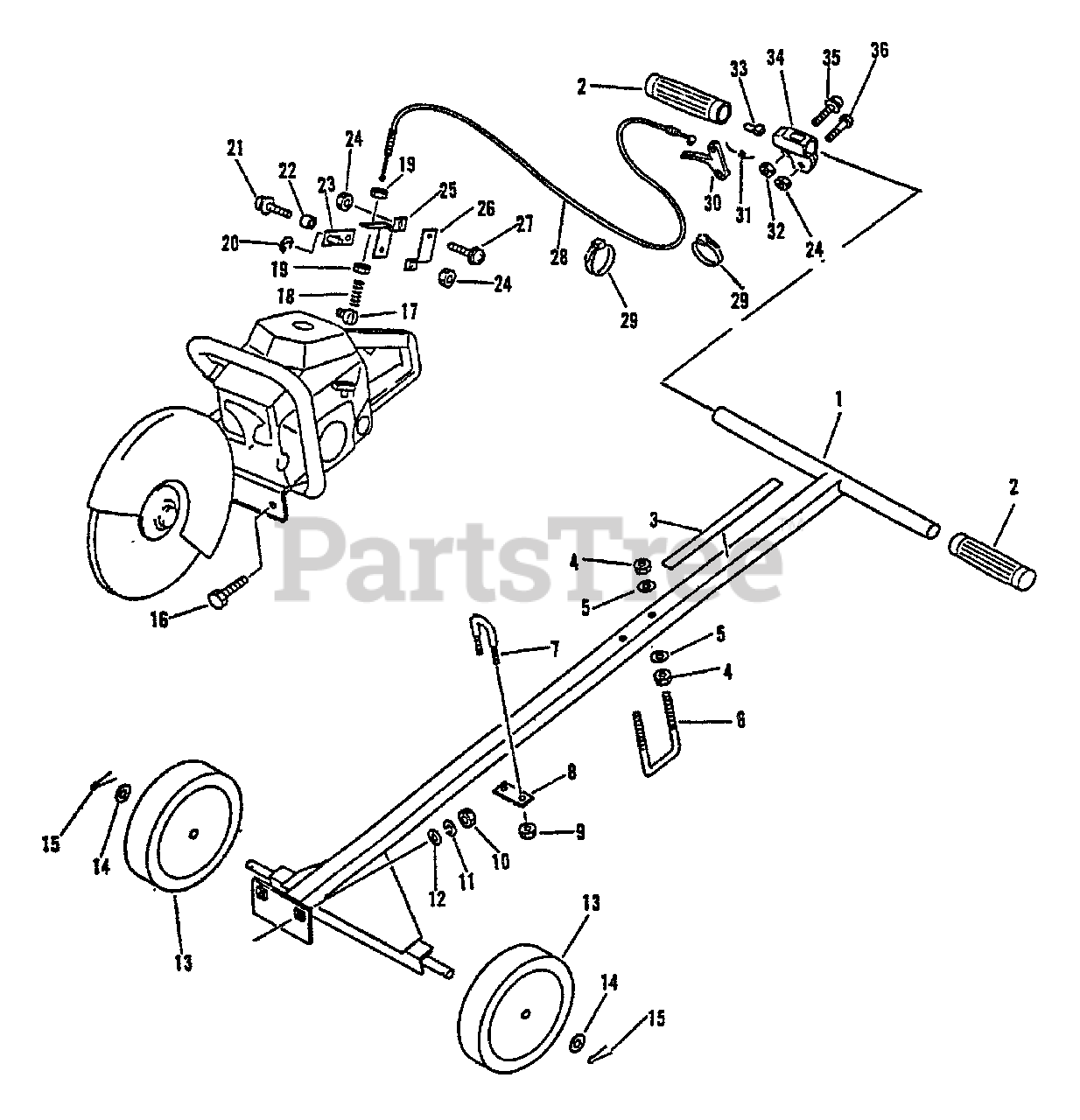

Cart Kit Parts Diagram

  • Title

1

Echo 30201007060

CART
(Superseded to Discontinued)

$

$

Not available

2

Echo 35101244730

GRIP, HANDLE
(Superseded to Discontinued)

$

$

Not available

3

Echo 89016807060

LABEL - CAUTION
(Superseded to Discontinued)

$

$

Not available

4

------------------

3/8" - 16 NUT

$

$

Not available

5

------------------

WASHER - 3/8"

$

$

Not available

6

Echo 30511007060

SQUARE BEND U-BOLT, LEG WIDTH 2", LENGTH 5"
(Superseded to Discontinued)

$

$

Not available

7

------------------

U-BOLT, 1" PIPE, 1/4 - 20 THREAD

Note: Obtain Locally

$

$

Not available

8

------------------

PLATE

$

$

Not available

9

Echo 90003000008

NUT - 1/4-20
(Superseded to 740000670)

$0.99

$

In Stock, Qty 8

0

10

Echo 90003000010

NUT - 5/16-18
(Superseded to Discontinued)

$

$

Not available

11

------------------

LOCKWASHER - 5/16"

$

$

Not available

12

------------------

WASHER - 5/16"

$

$

Not available

13

Echo 30241007060

WHEEL
(Superseded to Discontinued)

$

$

Not available

14

------------------

WASHER - 1/2"

$

$

Not available

15

Echo 90030020022

PIN, SPLIT - 2X22

Note: BULK OPTION: 89850201130 - 10 PACK

$0.99

$

In Stock, Qty 20+

0

16

------------------

SCREW - 5/16" X 18 X 1"

$

$

Not available

17

Echo 12537242030

SWIVEL

$4.49

$

Usually ships in 2-4 days

0

18

Echo 17804307060

SPRING, TRIGGER
(Superseded to Discontinued)

$

$

Not available

19

Echo 90050200006

NUT - 6

$0.99

$

In Stock, only 3 left!

0

20

Echo 90070000004

RING, RETAINING - 4

$0.99

$

In Stock, Qty 20+

0

21

Echo 90023805022

SCREW - 5X22

$0.99

$

In Stock, Qty 20+

0

22

Echo 13104528230

SLEEVE

$1.49

$

In Stock, Qty 20+

0

23

Echo 17801007060

TRIGGER, THROTTLE
(Superseded to Discontinued)

$

$

Not available

24

Echo 90056000005

LOCKNUT - 5

$1.49

$

In Stock, Qty 20+

0

25

Echo 17811807060

BRACKET
(Superseded to Discontinued)

$

$

Not available

26

Echo 17811407060

TRIGGER, MOUNTING BRACKET
(Superseded to Discontinued)

$

$

Not available

27

Echo 90023805016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

28

Echo 17800107060

CABLE, THROTTLE
(Superseded to Discontinued)

$

$

Not available

29

Echo 17812145930

TIE, CABLE
(Superseded to 17812110050)

$0.99

$

In Stock, Qty 10

0

30

Echo 17801048731

TRIGGER, THROTTLE
(Superseded to C450000070)

$1.49

$

In Stock, Qty 20+

0

31

Echo 17804306930

SPRING, TRIGGER

$0.99

$

In Stock, Qty 20+

0

32

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

33

Echo 17804805630

GUIDE, CABLE

$1.99

$

In Stock, Qty 20+

0

34

Echo 17802448930

BRACKET, TRIGGER
(Superseded to 17802444630)

$

$

Not available

35

Echo 90024205035

SCREW - 5X35

$0.99

$

In Stock, Qty 20+

0

36

Echo 17811005330

SCREW - 5X30

$0.99

$

In Stock, Qty 18

0
