CSG-6700 - Echo Cut-Off Saw (SN: 005531 - 999999) Ignition, Starter Parts Diagram

Cut-Off Saw

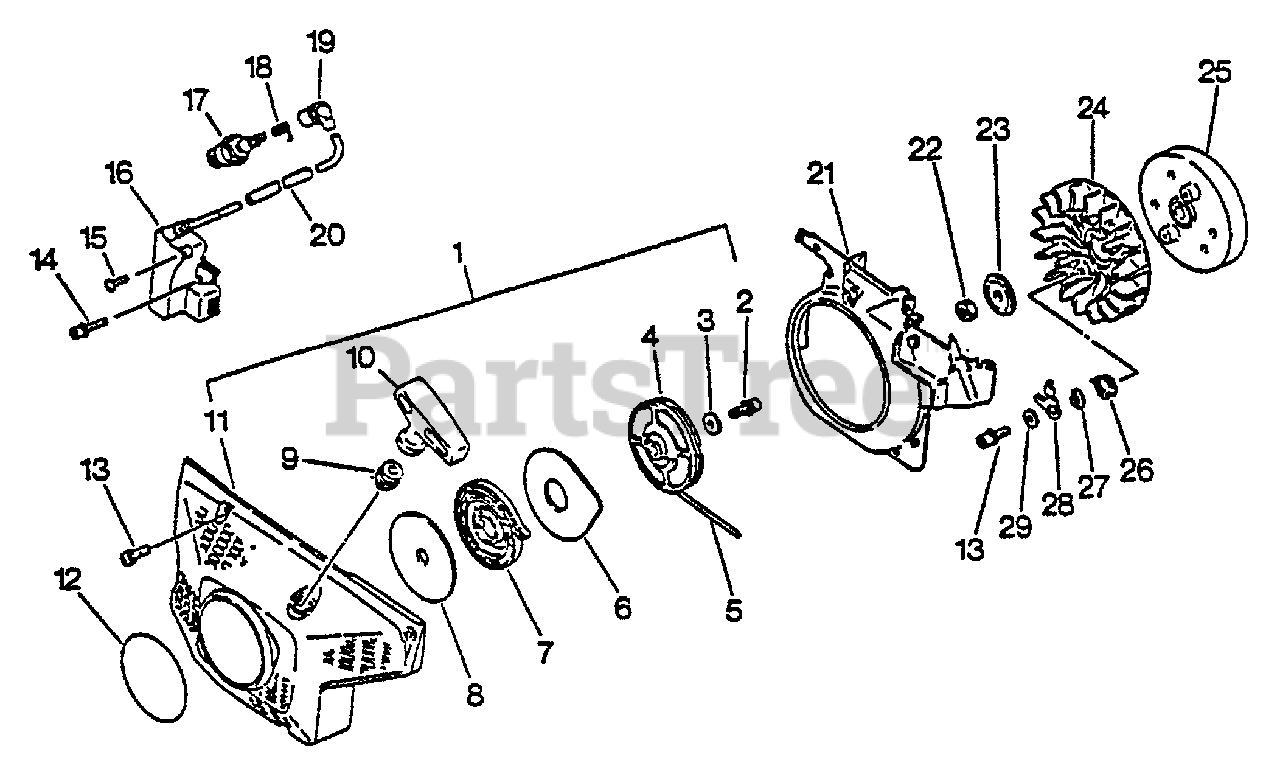

Ignition, Starter Parts Diagram

  • Title

1

Echo 17720007063

STARTER ASSY
(Superseded to 17720007064)

Note: Includes Items 2 - 11

$137.99

$

Usually ships in 2-4 days

0

2

Echo 90016205014

SCREW - 5X14

$1.49

$

In Stock, Qty 17

0

3

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

4

Echo 17721532330

REEL, ROPE

$10.99

$

In Stock, only 2 left!

0

5

Echo 17722607060

ROPE, STARTER - 4X950

Note: RePower BULK OPTION: 99944450000

$12.99

$

In Stock, Qty 5

0

6

Echo 17722107060

PLATE, STARTER

$12.99

$

In Stock, only 1 left!

0

7

Echo 17722002834

SPRING, REWIND

$25.99

$

In Stock, only 2 left!

0

8

Echo 17722102830

PLATE, STARTER

$7.49

$

In Stock, only 2 left!

0

9

Echo 17722707060

GUIDE, ROPE

$20.99

$

Usually ships in 2-4 days

0

10

Echo 17722830830

GRIP, STARTER
(Superseded to 17722830832)

$6.99

$

Usually ships in 2-4 days

0

11

Echo 10150707061

CASE, STARTER
(Superseded to 10150707062)

$110.99

$

In Stock, only 1 left!

0

12

Echo 89011238130

LABEL - ECHO
(Superseded to 89011817930)

$9.49

$

In Stock, Qty 6

0

13

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

14

Echo 90016204020

SCREW - 4X20

$1.49

$

In Stock, Qty 20+

0

15

Echo 90024204008

SCREW - 4X8

$0.99

$

In Stock, Qty 8

0

16

Echo 15660132630

COIL, IGNITION
(Superseded to 15660132631)

$166.99

$

In Stock, only 2 left!

0

17

Echo 15901012330

SPARK PLUG -- BPM-6A
(Superseded to Discontinued)

$

$

Not available

18

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.99

$

In Stock, Qty 14

0

19

Echo 15901203433

CAP, SPARK PLUG

$8.49

$

In Stock, Qty 20+

0

20

Echo 15061106060

TUBE
(Superseded to 15661119830)

$1.99

$

Usually ships in 2-4 days

0

21

Echo 10153507060

SHIELD, FAN
(Superseded to 10153507061)

$22.99

$

Usually ships in 2-4 days

0

22

Echo 90050000008

NUT - 8

$0.99

$

In Stock, Qty 20+

0

23

Echo 10014319830

WASHER - CUP

$1.99

$

In Stock, Qty 20+

0

24

Echo 10152132330

FAN

$17.99

$

Usually ships in 2-4 days

0

25

Echo 15680032630

FLYWHEEL
(Superseded to 15680032631)

$124.99

$

Usually ships in 2-4 days

0

26

Echo 17723419830

SPRING, RETURN
(Superseded to 17723419832)

$3.99

$

In Stock, only 2 left!

0

27

Echo 17724707060

SPACER

$3.49

$

Usually ships in 2-4 days

0

28

Echo 17721832630

PAWL, STARTER
(Superseded to P021009870)

$20.99

$

In Stock, only 2 left!

0

29

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0
