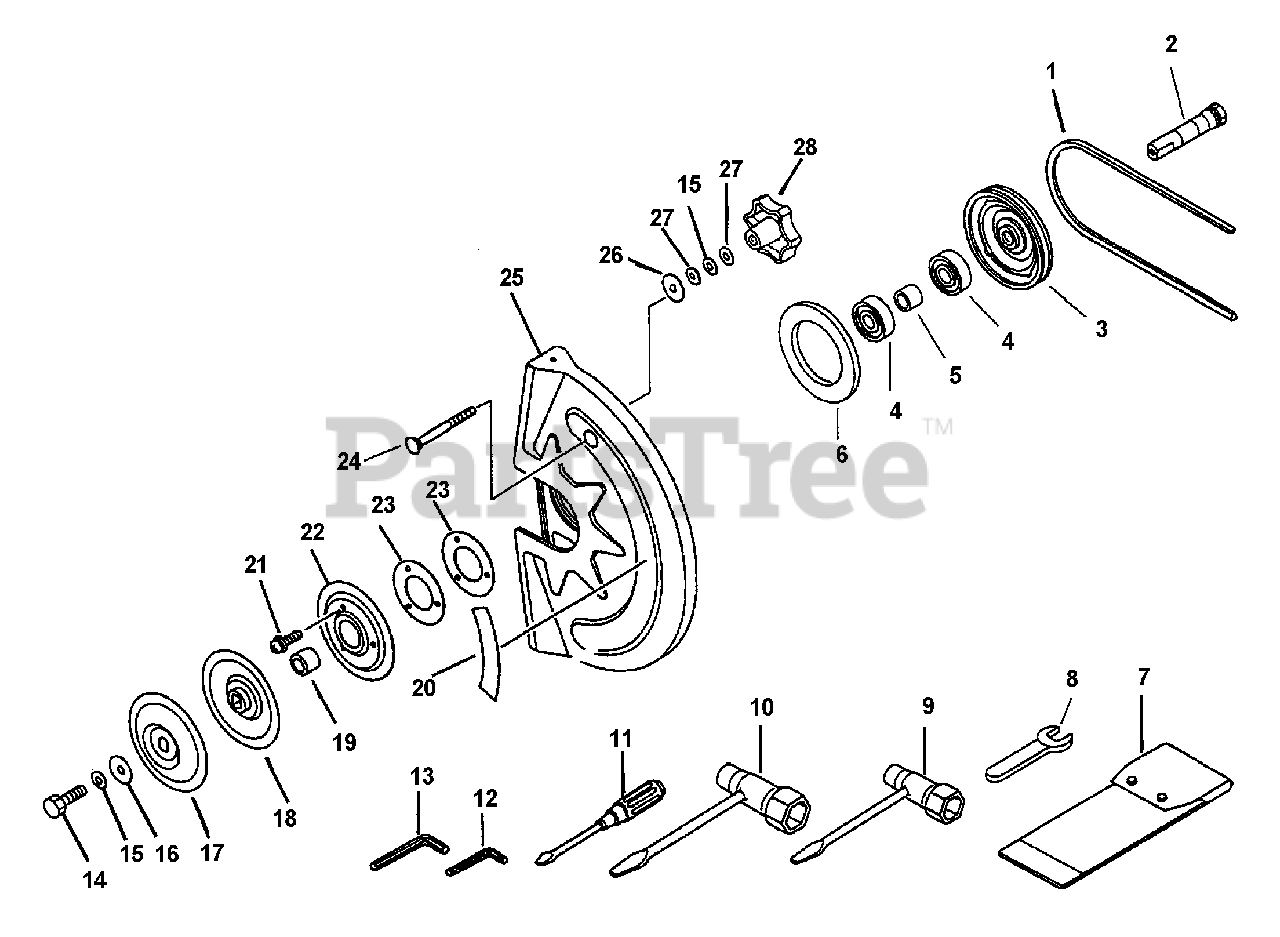

CSG-6700 - Echo Cut-Off Saw (Type 1E) Blade Cover, Belt Parts Diagram

Cut-Off Saw (Type 1E)

Blade Cover, Belt Parts Diagram

  • Title

1

Echo 61121206060

BELT

$65.99

$

Usually ships in 2-4 days

0

2

Echo 61101007060

SHAFT

$46.99

$

Usually ships in 2-4 days

0

3

Echo 61100705260

PULLEY

$48.99

$

Usually ships in 2-4 days

0

4

Echo 90081206203

BEARING, BALL 6203

$19.99

$

In Stock, only 1 left!

0

5

Echo 61101106060

SPACER
(Superseded to Discontinued)

$

$

Not available

6

Echo 68902405260

PLATE

$16.99

$

Usually ships in 2-4 days

0

7

Echo 89851039130

BAG, TOOL

$1.99

$

In Stock, only 3 left!

0

8

Echo 89501505260

WRENCH, OPEN END 10 MM

$1.99

$

Usually ships in 2-4 days

0

9

Echo 89541006960

T-WRENCH 13×19×180
(Superseded to 89541006961)

$4.49

$

In Stock, only 2 left!

0

10

Echo 89541010630

WRENCH, T 17×19 MM

$12.99

$

Usually ships in 2-4 days

0

11

Echo 89581100130

SCREWDRIVER, SLOTTED

$4.99

$

Usually ships in 2-4 days

0

12

Echo 89561203430

WRENCH, ALLEN 3 MM
(Superseded to X605000090)

$0.99

$

In Stock, only 2 left!

0

13

Echo A605000100

WRENCH, ALLEN 4 MM

$

$

Currently unavailable

14

Echo 61102005261

BOLT

$2.99

$

Usually ships in 2-4 days

0

15

Echo 900605-00010

WASHER, SPRING 10

$0.99

$

In Stock, Qty 6

0

16

Echo 61101905260

WASHER

$5.99

$

Usually ships in 2-4 days

0

17

Echo 61101507061

FLANGE, CUTTER
(Superseded to 61101507062)

$64.99

$

Usually ships in 2-4 days

0

18

Echo 61101407061

FLANGE, CUTTER
(Superseded to 61101407062)

$43.99

$

Usually ships in 2-4 days

0

19

Echo 61101107060

SPACER

$14.99

$

Usually ships in 2-4 days

0

20

Echo 89018807060

LABEL, CAUTION
(Superseded to Discontinued)

$

$

Not available

21

Echo 900242-04010

SCREW 4×10

$0.99

$

In Stock, Qty 20+

0

22

Echo 68901305260

PLATE
(Superseded to Discontinued)

$

$

Not available

23

Echo 68902505260

WASHER

$1.99

$

Usually ships in 2-4 days

0

24

Echo 68902006060

BOLT

$9.49

$

Usually ships in 2-4 days

0

25

Echo 68901007061

COVER, BLADE

$178.99

$

Usually ships in 2-4 days

0

26

Echo 68902305260

WASHER

$2.99

$

Usually ships in 2-4 days

0

27

Echo 900600-00010

WASHER 10.5×18×1.6

$0.99

$

In Stock, Qty 9

0

28

Echo 68901505260

KNOB

$39.99

$

Usually ships in 2-4 days

0
