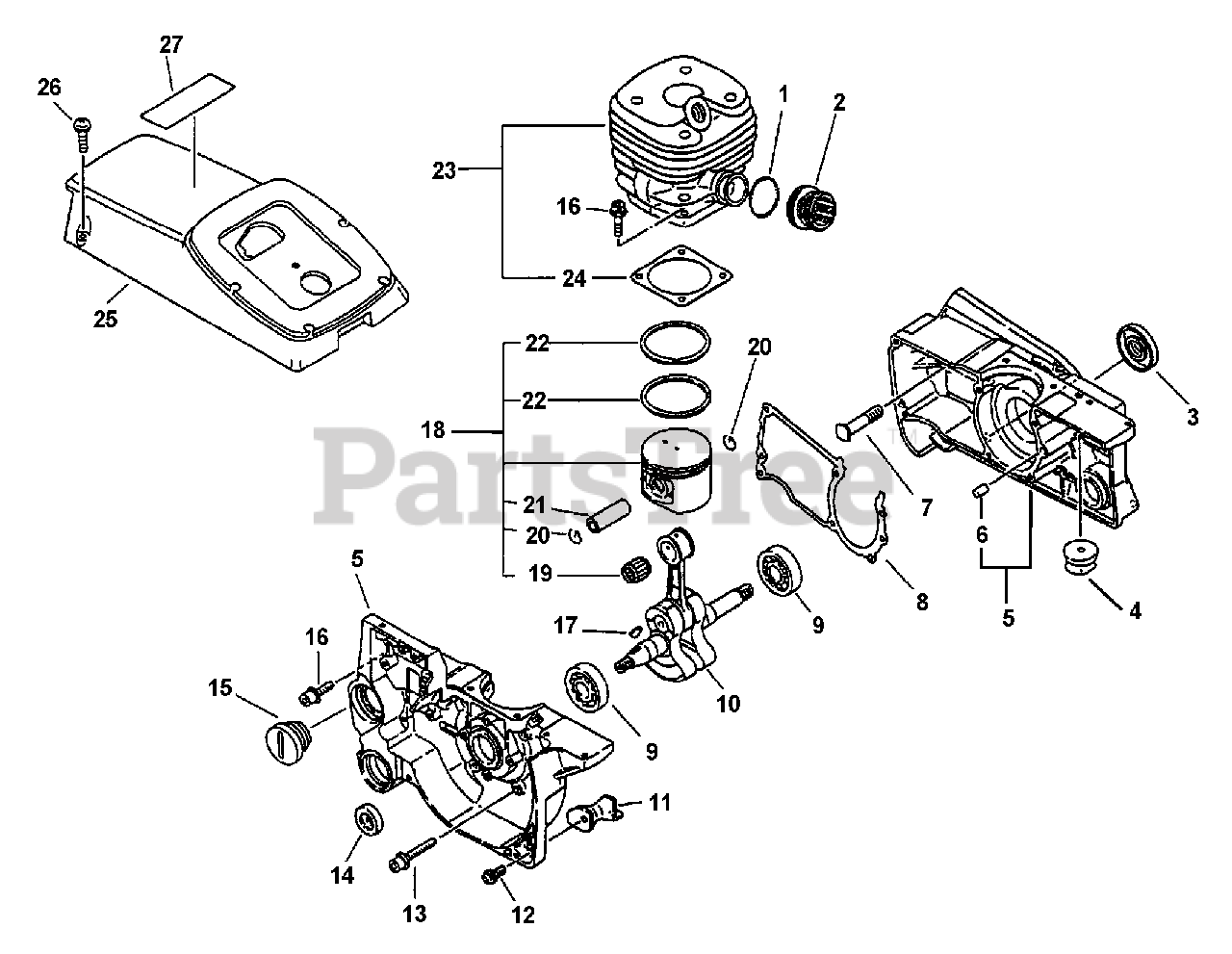

CSG-6700 - Echo Cut-Off Saw (Type 1E) Engine, Crankcase, Cylinder, Piston Parts Diagram

Cut-Off Saw (Type 1E)

Engine, Crankcase, Cylinder, Piston Parts Diagram

  • Title

1

Echo 13051630830

BAND

$1.99

$

In Stock, Qty 5

0

2

Echo 13051032430

BELLOWS, INTAKE

$18.99

$

Usually ships in 2-4 days

0

3

Echo 10021232430

SEAL, OIL

$5.99

$

Usually ships in 2-4 days

0

4

Echo 10025132430

CUSHION - A

$1.99

$

In Stock, only 2 left!

0

5

Echo 10020407062

CRANKCASE KIT
(Superseded to 10020407065)

Note: Includes ITEMS 3, 6-9, 14, 15

$198.99

$

Usually ships in 2-4 days

0

6

Echo 10021502830

PIN - LOCATING

$0.99

$

Usually ships in 2-4 days

0

7

Echo 43301106060

STUD, GUIDE BAR

$15.99

$

Usually ships in 2-4 days

0

8

Echo 10024232430

GASKET, CRANKCASE

$5.99

$

Usually ships in 2-4 days

0

9

Echo 90081036202

BEARING, BALL - 6202

$9.99

$

In Stock, Qty 14

0

10

Echo 10010006060

CRANKSHAFT ASSY
(Superseded to 10010006061)

$208.99

$

Usually ships in 2-4 days

0

11

Echo 10091732430

CUSHION

$15.99

$

In Stock, only 1 left!

0

12

Echo 90016205014

SCREW - 5X14

$1.49

$

In Stock, Qty 20+

0

13

Echo 90016205035

SCREW - 5X35

$1.49

$

In Stock, Qty 16

0

14

Echo 10021219830

SEAL, OIL

$5.49

$

In Stock, only 1 left!

0

15

Echo 43601307061

CAP, OIL TANK

$4.49

$

In Stock, only 1 left!

0

16

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

17

Echo 10014230830

KEY

$1.49

$

In Stock, Qty 18

0

18

Echo 10000032431

PISTON KIT
(Superseded to 10000032432)

Note: Includes ITEMS 19-22

$100.99

$

In Stock, only 1 left!

0

19

Echo 10001232430

BEARING, NEEDLE

$13.99

$

Usually ships in 2-4 days

0

20

Echo 10001500230

RING, RETAINING

$0.99

$

Usually ships in 2-4 days

0

21

Echo 10001332430

PIN, PISTON

$7.99

$

Usually ships in 2-4 days

0

22

Echo 10001132430

RING, PISTON
(Superseded to 10001132431)

$12.99

$

Usually ships in 2-4 days

0

23

Echo 10100132431

CYLINDER KIT

Note: Includes ITEM 24

$230.99

$

Usually ships in 2-4 days

0

24

Echo 10101032431

GASKET, CYLINDER

$2.49

$

Usually ships in 2-4 days

0

25

Echo 10150607060

COVER, ENGINE
(Superseded to 10150607061)

$71.99

$

Usually ships in 2-4 days

0

26

Echo 90023805020

SCREW - 5X20

$0.99

$

In Stock, Qty 20+

0

27

Echo 89017807060

LABEL - CAUTION

$2.99

$

Usually ships in 2-4 days

0
