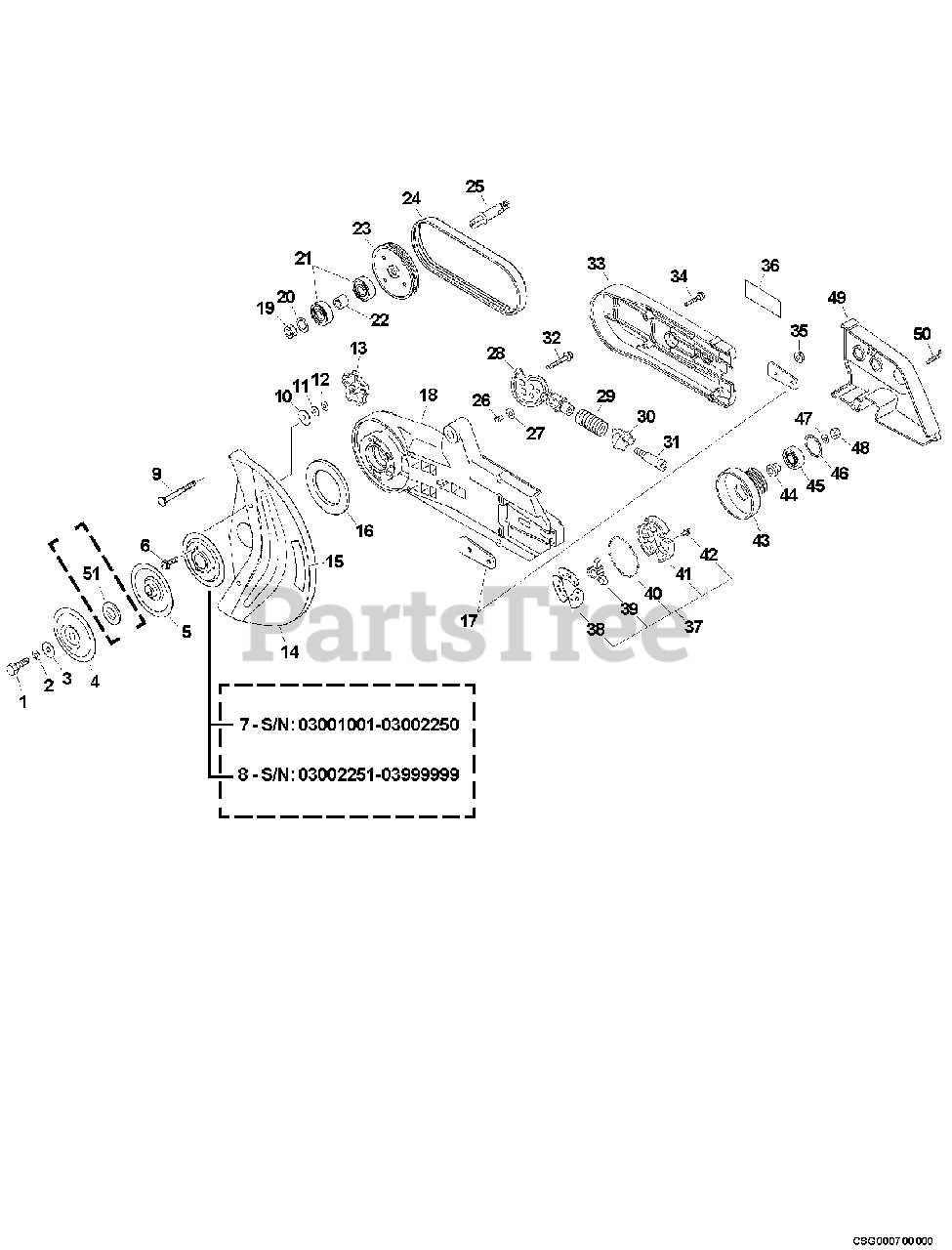

CSG-680 - Echo Cut-Off Saw (SN: 03001001 - 03999999) Blade Cover, Arm Cover, Belt, Clutch Parts Diagram

Cut-Off Saw

Blade Cover, Arm Cover, Belt, Clutch Parts Diagram

  • Title

1

Echo V206000160

BOLT

$5.99

$

Usually ships in 2-4 days

0

2

Echo 900605-00010

WASHER, SPRING 10

$0.99

$

In Stock, Qty 6

0

3

Echo 61101905260

WASHER

$5.99

$

Usually ships in 2-4 days

0

4

Echo 61101507062

FLANGE, CUTTER

$64.99

$

Usually ships in 2-4 days

0

5

Echo 61101407062

FLANGE, CUTTER

$43.99

$

Usually ships in 2-4 days

0

6

Echo 90024104010

SCREW - 4×10
(Superseded to 90024204010)

$0.99

$

In Stock, Qty 20+

0

7

Echo 68901305260

PLATE
(Superseded to Discontinued)

$

$

Not available

8

Echo C371000000

PLATE

$13.99

$

Usually ships in 2-4 days

0

9

Echo V205000300

BOLT 8

$2.49

$

Usually ships in 2-4 days

0

10

Echo V306000110

WASHER - 8

$1.99

$

Usually ships in 2-4 days

0

11

Echo 90060000008

WASHER 8.5×16×1.2

$0.99

$

Usually ships in 2-4 days

0

12

Echo 90060500008

WASHER, SPRING 8

$0.99

$

In Stock, Qty 20+

0

13

Echo V299000210

KNOB, FASTENER

$15.99

$

Usually ships in 2-4 days

0

14

Echo C370000020

COVER, CUTTER

$178.99

$

Usually ships in 2-4 days

0

15

Echo X524001120

LABEL, CAUTION

$6.49

$

Usually ships in 2-4 days

0

16

Echo 68902405260

PLATE

$16.99

$

Usually ships in 2-4 days

0

17

Echo 61111706060

SPACER, ARM

$14.99

$

Usually ships in 2-4 days

0

18

Echo C360000000

ARM, CUTTER
(Superseded to C360000001)

$178.99

$

Usually ships in 2-4 days

0

19

Echo 900501-00010

NUT 10

$0.99

$

In Stock, only 2 left!

0

20

Echo 90060200010

WASHER, SPRING 10

$0.99

$

In Stock, Qty 16

0

21

Echo 90081206202

BEARING, BALL 6202 DDU

$16.99

$

Usually ships in 2-4 days

0

22

Echo 60611721860

COLLAR

$17.99

$

Usually ships in 2-4 days

0

23

Echo V176000031

PULLEY

$115.99

$

Usually ships in 2-4 days

0

24

Echo V196000090

BELT
(Superseded to Discontinued)

$

$

Not available

25

Echo C364000021

SHAFT, CUTTER
(Superseded to C364000022)

$91.99

$

Usually ships in 2-4 days

0

26

Echo 10491508260

COLLAR

$6.99

$

In Stock, only 2 left!

0

27

Echo 17504956030

WASHER, SPRING 8.5×16×0.5

$1.99

$

In Stock, Qty 20+

0

28

Echo P021006651

SHAFT, ARM ADJUST

$28.99

$

Usually ships in 2-4 days

0

29

Echo 61121605260

SPRING, ADJUSTER

$3.49

$

Usually ships in 2-4 days

0

30

Echo V455000030

HOLDER, SPRING

$3.99

$

Usually ships in 2-4 days

0

31

Echo V203000070

BOLT 5

$1.99

$

Usually ships in 2-4 days

0

32

Echo 90016205025

BOLT 5×25

$0.99

$

In Stock, Qty 20+

0

33

Echo C361000000

COVER, CUTTER ARM

$16.99

$

Usually ships in 2-4 days

0

34

Echo 900238-05025

SCREW 5×25

$0.99

$

In Stock, Qty 20+

0

35

Echo 43301912330

NUT, FLANGE M8×1.25
(Superseded to V265000200)

$2.49

$

In Stock, Qty 20+

0

36

Echo 89011807060

LABEL - ECHO

$3.49

$

Usually ships in 2-4 days

0

37

Echo 17500006061

CLUTCH ASSY

Note: INCLUDES ITEMS 38-42

$121.99

$

Usually ships in 2-4 days

0

38

Echo 17501916130

PLATE, CLUTCH

$3.99

$

Usually ships in 2-4 days

0

39

Echo 17501616130

BOSS, CLUTCH

$29.99

$

Usually ships in 2-4 days

0

40

Echo 17501832430

SPRING, CLUTCH

$3.49

$

Usually ships in 2-4 days

0

41

Echo 17500232431

SHOE SET, CLUTCH (3PCS)

$73.99

$

In Stock, only 1 left!

0

42

Echo 90010504006

BOLT 4×6

$0.99

$

Usually ships in 2-4 days

0

43

Echo A556000310

DRUM, CLUTCH

$68.99

$

Usually ships in 2-4 days

0

44

Echo V356000260

COLLAR - 10

$15.99

$

Usually ships in 2-4 days

0

45

Echo 90080206001

BEARING, BALL 6001 DDU
(Superseded to 9404206001)

$11.99

$

In Stock, only 2 left!

0

46

Echo 90070200028

RING, SNAP 28

$1.99

$

In Stock, Qty 20+

0

47

Echo 90060300008

WASHER

$0.99

$

Usually ships in 2-4 days

0

48

Echo 61032003830

NUT 8 LH

$5.49

$

In Stock, only 2 left!

0

49

Echo 61111120860

COVER, V-BELT

$27.99

$

Usually ships in 2-4 days

0

50

Echo 900238-05025

SCREW 5×25

$0.99

$

In Stock, Qty 20+

0

51

Echo 61102207061

WHEEL ADAPTER - 25 MM

$5.99

$

Usually ships in 2-4 days

0
