CSG-680 - Echo Cut-Off Saw (SN: 03001001 - 03999999) Engine, Crankcase, Cylinder Cover Parts Diagram

Cut-Off Saw

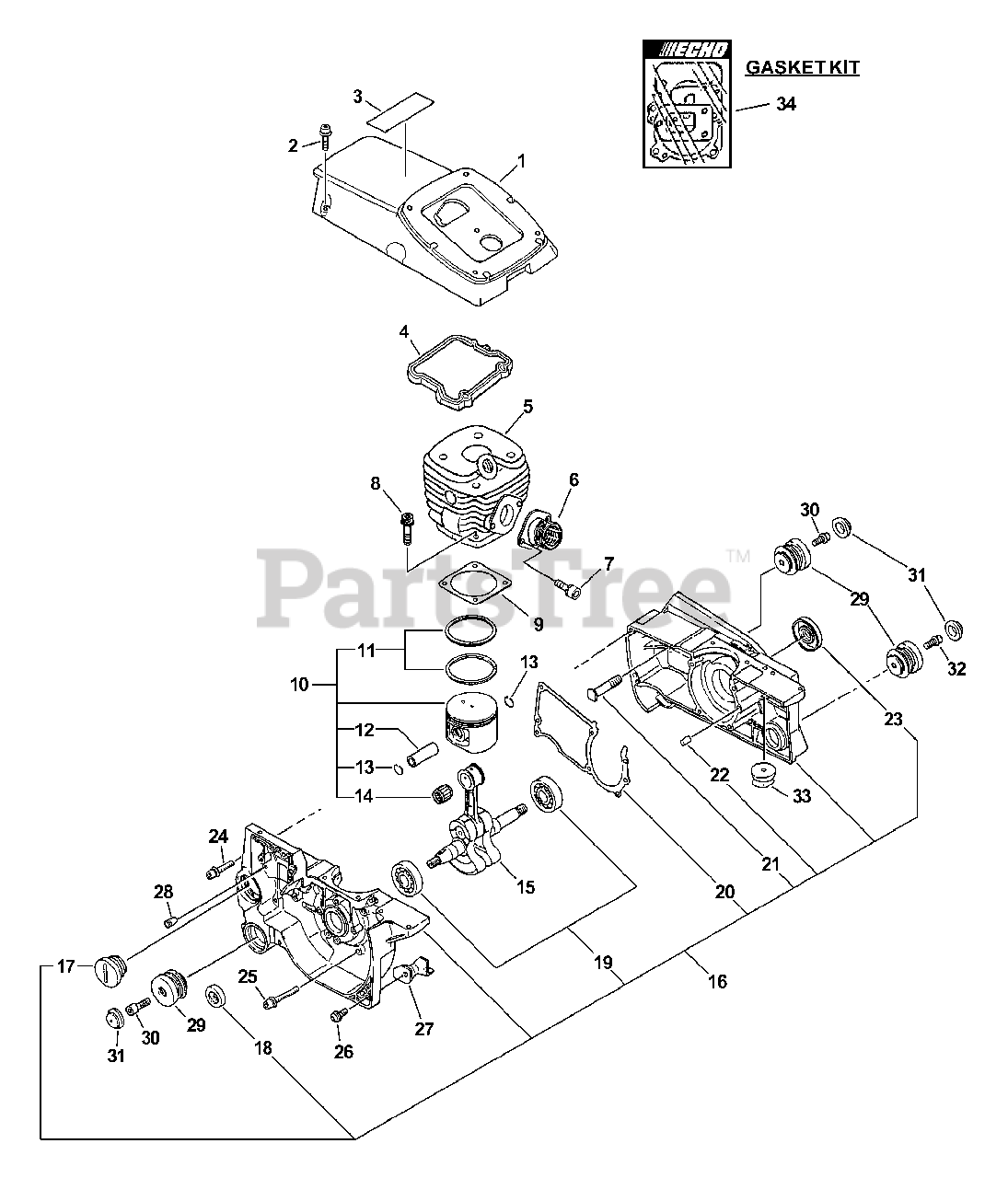

Engine, Crankcase, Cylinder Cover Parts Diagram

  • Title

1

Echo A160000530

COVER, ENGINE
(Superseded to A160000531)

$53.99

$

Usually ships in 2-4 days

0

2

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

3

Echo 89017807060

LABEL - CAUTION

$2.99

$

Usually ships in 2-4 days

0

4

Echo V420000700

CUSHION
(Superseded to V420000701)

$6.49

$

Usually ships in 2-4 days

0

5

Echo A130000171

CYLINDER
(Superseded to A130000172)

$134.99

$

In Stock, only 1 left!

0

6

Echo A202000040

BELLOWS, INTAKE

$22.99

$

Usually ships in 2-4 days

0

7

Echo 90016204014

SCREW - 4X14

$1.49

$

In Stock, Qty 17

0

8

Echo 90016205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

9

Echo 10101032431

GASKET, CYLINDER

$2.49

$

Usually ships in 2-4 days

0

10

Echo P021002790

PISTON KIT
(Superseded to P021002791)

Note: Includes ITEMS 11-14

$69.99

$

In Stock, only 1 left!

0

11

Echo 10001132430

RING, PISTON
(Superseded to 10001132431)

$12.99

$

Usually ships in 2-4 days

0

12

Echo V610000000

PIN, PISTON

$3.99

$

Usually ships in 2-4 days

0

13

Echo 10001500230

RING, RETAINING

$0.99

$

Usually ships in 2-4 days

0

14

Echo 10001232430

BEARING, NEEDLE

$13.99

$

Usually ships in 2-4 days

0

15

Echo A011000291

CRANKSHAFT ASSY
(Superseded to A011000292)

$226.99

$

Usually ships in 2-4 days

0

16

Echo P021006690

CRANKCASE KIT

Note: Includes ITEMS 17-23

$453.99

$

In Stock, only 1 left!

0

17

Echo 43601307061

CAP, OIL TANK

$4.49

$

In Stock, only 1 left!

0

18

Echo 10021219830

SEAL, OIL

$5.49

$

In Stock, only 1 left!

0

19

Echo 90081036202

BEARING, BALL - 6202

$9.99

$

In Stock, Qty 14

0

20

Echo 10024232430

GASKET, CRANKCASE

$5.99

$

Usually ships in 2-4 days

0

21

Echo 43301121860

STUD, GUIDE BAR

$19.99

$

Usually ships in 2-4 days

0

22

Echo 10021502830

PIN - LOCATING

$0.99

$

Usually ships in 2-4 days

0

23

Echo 10021232430

SEAL, OIL

$5.99

$

Usually ships in 2-4 days

0

24

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

25

Echo 90016205035

SCREW - 5X35

$1.49

$

In Stock, Qty 16

0

26

Echo 90023805014

SCREW - 5X14

$0.99

$

In Stock, Qty 15

0

27

Echo 10091732430

CUSHION

$15.99

$

In Stock, only 1 left!

0

28

Echo 43611413930

VENT, TANK

$6.49

$

In Stock, Qty 5

0

29

Echo 10092232430

CUSHION

$14.99

$

Usually ships in 2-4 days

0

30

Echo 10091532530

SCREW

$3.49

$

In Stock, Qty 8

0

31

Echo 10091819830

CAP, CUSHION

$1.99

$

In Stock, Qty 20+

0

32

Echo 90016205014

SCREW - 5X14

$1.49

$

In Stock, Qty 20+

0

33

Echo 10025132430

CUSHION - A

$1.99

$

In Stock, only 2 left!

0

34

Echo 88900032530

GASKET KIT

$12.99

$

Usually ships in 2-4 days

0
