CSG-680 - Echo Cut-Off Saw (SN: 03001001 - 03999999) Handles, Fuel System Parts Diagram

Cut-Off Saw

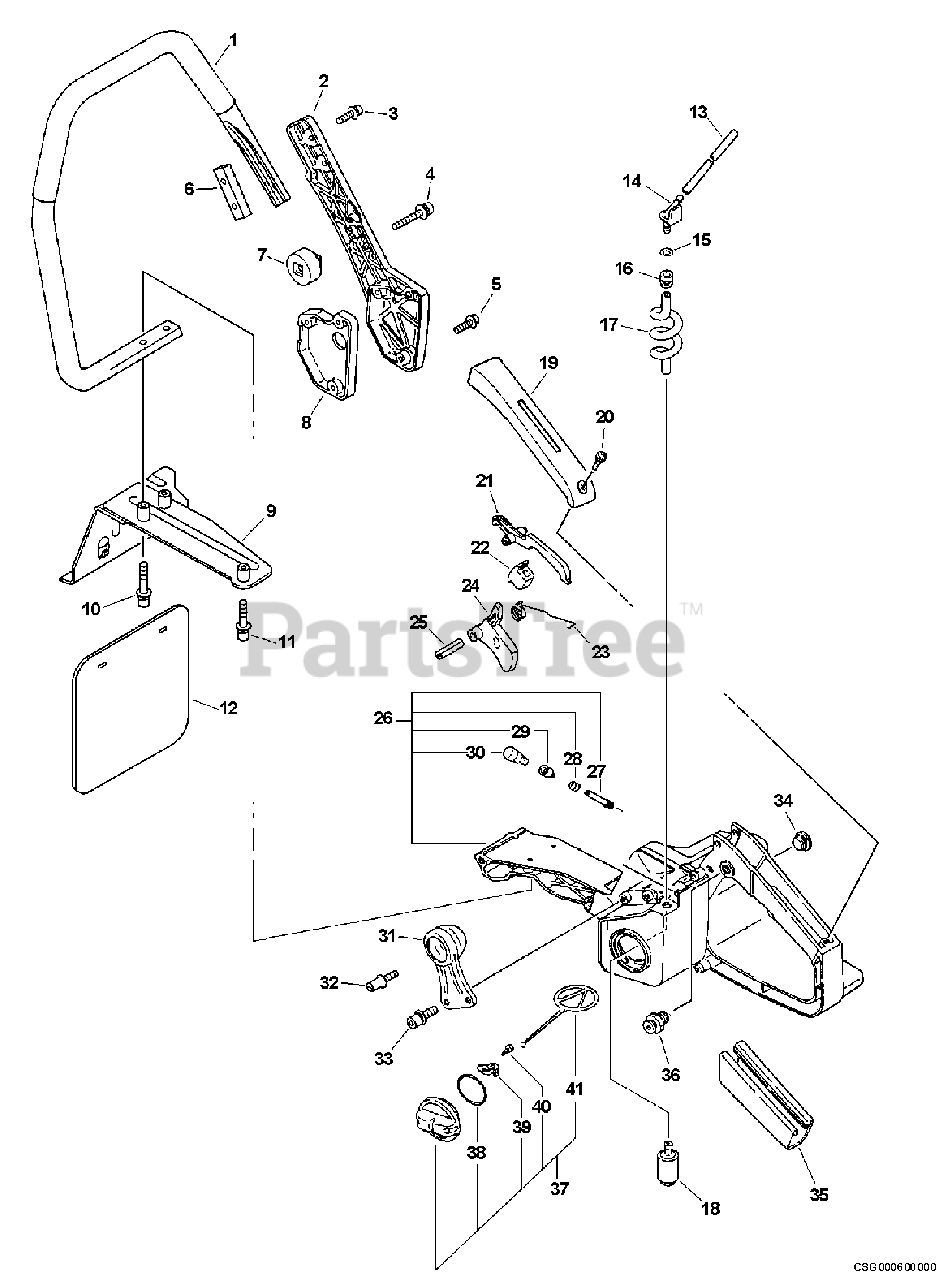

Handles, Fuel System Parts Diagram

  • Title

1

Echo C400000240

HANDLE, FRONT
(Superseded to C400000241)

$103.99

$

Usually ships in 2-4 days

0

2

Echo 35161638230

BRACKET, GRAY HANDLE

$57.99

$

In Stock, only 1 left!

0

3

Echo 900238-05020

SCREW 5×20

$0.99

$

In Stock, Qty 8

0

4

Echo 90023805030

SCREW 5×30

$0.99

$

Usually ships in 2-4 days

0

5

Echo 90023805035

SCREW 5×35

$0.99

$

In Stock, Qty 10

0

6

Echo 30511406060

BRACKET

$7.99

$

Usually ships in 2-4 days

0

7

Echo 35163006060

SPACER

$8.99

$

Usually ships in 2-4 days

0

8

Echo 35161207060

SPACER
(Superseded to 35161207061)

$

$

Not available

9

Echo C423000130

FIXTURE,HANDLE

$97.99

$

Usually ships in 2-4 days

0

10

Echo 90016205035

BOLT M5×35

$1.99

$

In Stock, Qty 16

0

11

Echo 90016205030

BOLT 5×30

$1.49

$

In Stock, only 2 left!

0

12

Echo 30511506060

SHIELD
(Superseded to 30511506061)

$12.99

$

Usually ships in 2-4 days

0

13

Echo 13201219830

PIPE, FUEL - 3×6×100
(Superseded to 43721720760)

Note: RePower BULK OPTION: 90015

$6.49

$

In Stock, only 2 left!

0

14

Echo 13201119830

CONNECTOR, PIPE
(Superseded to 13201119831)

$5.49

$

In Stock, only 4 left!

0

15

Echo V490001230

CLIP Ø6.5 MM

$0.99

$

In Stock, Qty 20+

0

16

Echo 13211501461

GROMMET
(Superseded to 13211501462)

$1.99

$

In Stock, Qty 20+

0

17

Echo 13201030830

PIPE, FUEL
(Superseded to 13201030831)

$6.99

$

In Stock, only 2 left!

0

18

Echo 13120519831

FILTER, FUEL
(Superseded to 13120519832)

$9.99

$

In Stock, Qty 20+

0

19

Echo 35115535430

COVER, HANDLE
(Superseded to 35115535431)

$13.99

$

In Stock, only 2 left!

0

20

Echo 90023804014

SCREW 4×14

$0.99

$

In Stock, Qty 6

0

21

Echo 17809037930

LEVER, THROTTLE LOCKOUT

$5.99

$

In Stock, only 1 left!

0

22

Echo 17807332430

CUSHION, THROTTLE

$3.49

$

In Stock, only 1 left!

0

23

Echo 17804319830

SPRING, THROTTLE RETURN

$2.99

$

In Stock, Qty 6

0

24

Echo 17801038130

TRIGGER, THROTTLE - ORANGE

$6.99

$

In Stock, Qty 5

0

25

Echo 90034250025

PIN, SPRING Ø5×25 MM

$1.99

$

In Stock, Qty 8

0

26

Echo P021006700

HANDLE, REAR
(Superseded to P021006703)

Note: INCLUDES ITEMS 27-30

$162.99

$

Usually ships in 2-4 days

0

27

Echo 13131232430

PIPE, VENT

$16.99

$

In Stock, only 2 left!

0

28

Echo 130111-00530

CLIP 5.5

$0.99

$

In Stock, Qty 20+

0

29

Echo 13132840630

HOLDER, VENT

$7.49

$

In Stock, Qty 13

0

30

Echo A356000031

VENT ASSY

$9.49

$

In Stock, Qty 20+

0

31

Echo 10092132431

CUSHION

$24.99

$

In Stock, only 1 left!

0

32

Echo 10091533930

SCREW 5

$2.99

$

In Stock, only 2 left!

0

33

Echo 90016205014

BOLT 5×14

$1.49

$

In Stock, Qty 7

0

34

Echo 10157838431

GROMMET, PLUG

$1.99

$

Usually ships in 2-4 days

0

35

Echo 35111119830

GRIP, HANDLE
(Superseded to 35111119831)

$7.49

$

In Stock, only 2 left!

0

36

Echo 17830237930

LOCK, THROTTLE TRIGGER

$9.99

$

In Stock, only 3 left!

0

37

Echo 13100437631

CAP ASSY, FUEL
(Superseded to 13100437632)

Note: INCLUDES ITEMS 38-41

$4.49

$

In Stock, Qty 18

0

38

Echo 90072020029

O-RING 29

$3.99

$

In Stock, only 2 left!

0

39

Echo 13105019830

RETAINER, CONNECTOR
(Superseded to Discontinued)

$

$

Not available

40

Echo 90024603008

SCREW, TAPPING 3×8

$

$

Not available

41

Echo A365-000050

CONNECTOR, CAP L= 60 MM
(Superseded to A365000050)

$2.49

$

In Stock, Qty 5

0
