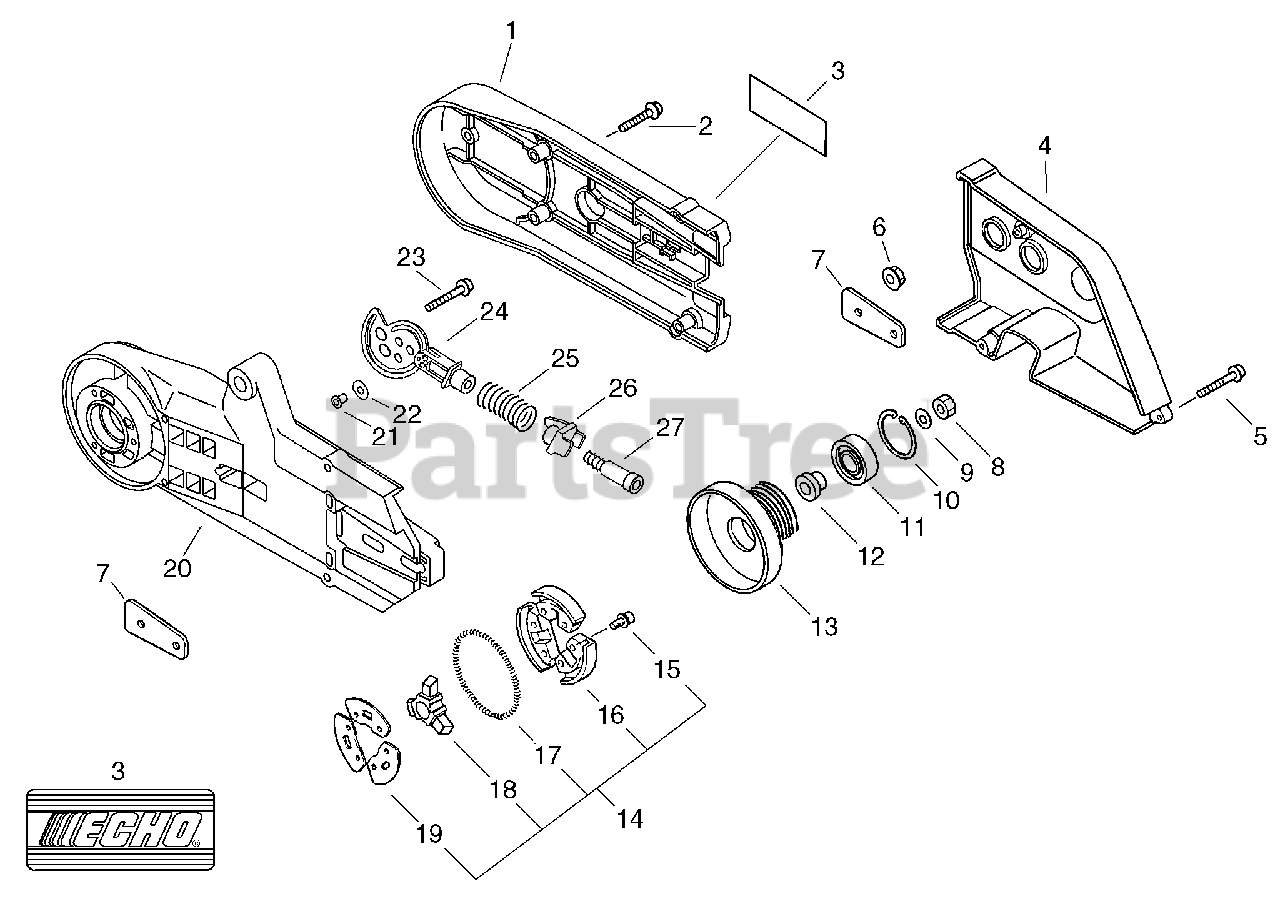

CSG-680 - Echo Cut-Off Saw (SN: C02004001001 - C02004999999) Arm Cover, Clutch Parts Diagram

Cut-Off Saw

Arm Cover, Clutch Parts Diagram

  • Title

1

Echo C361000030

COVER, CUTTER ARM

$13.99

$

Usually ships in 2-4 days

0

2

Echo 90023805025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

3

Echo 89011807060

LABEL - ECHO

$2.99

$

Usually ships in 2-4 days

0

4

Echo 61111120860

COVER, V-BELT

$25.99

$

Usually ships in 2-4 days

0

5

Echo 90023805025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

6

Echo 43301912330

NUT - 8 -- FLANGE
(Superseded to V265000200)

$1.99

$

In Stock, Qty 20+

0

7

Echo 61111706060

SPACER, ARM

$13.99

$

Usually ships in 2-4 days

0

8

Echo 61032003830

NUT - 8 -- LEFT HAND

$4.99

$

In Stock, only 1 left!

0

9

Echo 90060300008

WASHER - 8

$0.99

$

Usually ships in 2-4 days

0

10

Echo 90070200028

RING, RETAINING - 28

$1.99

$

In Stock, Qty 20+

0

11

Echo 90080206001

BEARING, BALL - 6001 DDU
(Superseded to 9404206001)

$10.99

$

In Stock, only 2 left!

0

12

Echo V356000260

COLLAR - 10

$14.99

$

Usually ships in 2-4 days

0

13

Echo A556000310

DRUM, CLUTCH

$63.99

$

Usually ships in 2-4 days

0

14

Echo 17500006061

CLUTCH ASSY

$112.99

$

Usually ships in 2-4 days

0

15

Echo 90010504006

SCREW - 4X6

$0.99

$

Usually ships in 2-4 days

0

16

Echo 17500232431

CLUTCH SHOE SET

$68.99

$

In Stock, only 1 left!

0

17

Echo 17501832430

SPRING, CLUTCH

$2.99

$

In Stock, only 1 left!

0

18

Echo 17501616130

HUB, CLUTCH

$29.99

$

Usually ships in 2-4 days

0

19

Echo 17501916130

PLATE, CLUTCH

$3.49

$

Usually ships in 2-4 days

0

20

Echo C360000000

ARM, CUTTER
(Superseded to C360000001)

$178.99

$

Usually ships in 2-4 days

0

21

Echo 10491508260

SPACER

$6.49

$

In Stock, only 2 left!

0

22

Echo 17504956030

WASHER - SPRING

$1.99

$

In Stock, Qty 20+

0

23

Echo 90016205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

24

Echo P021006650

ADJUSTER

$

$

Currently unavailable

25

Echo 61121605260

SPRING, ADJUST

$3.49

$

Usually ships in 2-4 days

0

26

Echo V455000030

SEAT, SPRING

$3.99

$

Usually ships in 2-4 days

0

27

Echo V203000070

SCREW - 5

$1.99

$

Usually ships in 2-4 days

0
