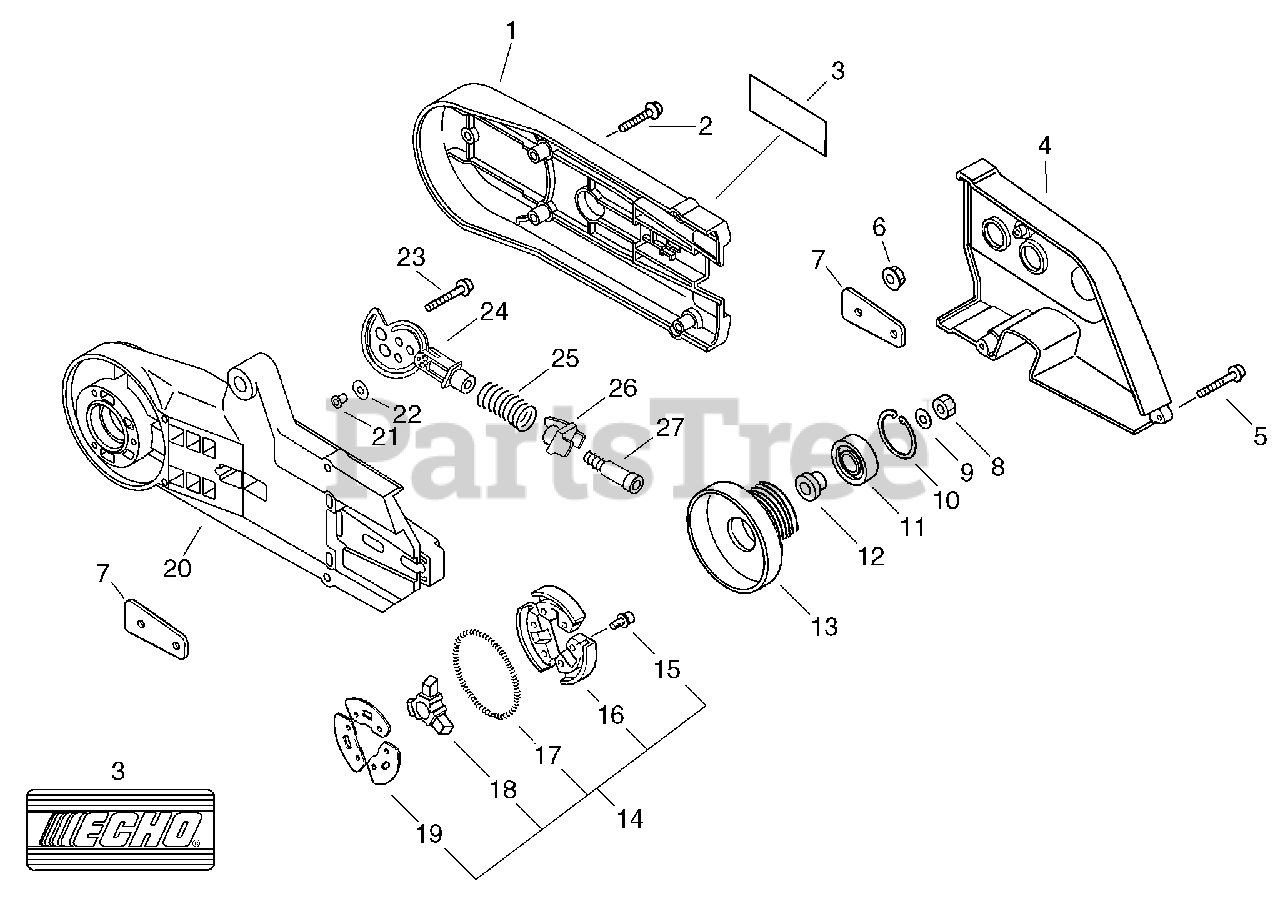

CSG-680 - Echo Cut-Off Saw (SN: C02004001001 - C02004999999) Arm Cover, Clutch Parts Diagram

Cut-Off Saw

Arm Cover, Clutch Parts Diagram

  • Title

1

Echo C361000030

COVER, GEAR

$14.99

$

Usually ships in 2-4 days

0

2

Echo 900238-05025

SCREW 5×25

$0.99

$

In Stock, Qty 20+

0

3

Echo 89011807060

LABEL - ECHO

$3.49

$

Usually ships in 2-4 days

0

4

Echo 61111120860

COVER, V-BELT

$27.99

$

Usually ships in 2-4 days

0

5

Echo 900238-05025

SCREW 5×25

$0.99

$

In Stock, Qty 20+

0

6

Echo 43301912330

NUT, FLANGE M8×1.25
(Superseded to V265000200)

$2.49

$

In Stock, Qty 20+

0

7

Echo 61111706060

SPACER, ARM

$14.99

$

Usually ships in 2-4 days

0

8

Echo 61032003830

NUT 8 LH

$5.49

$

In Stock, only 2 left!

0

9

Echo 90060300008

WASHER

$0.99

$

Usually ships in 2-4 days

0

10

Echo 90070200028

RING, SNAP 28

$1.99

$

In Stock, Qty 20+

0

11

Echo 90080206001

BEARING, BALL 6001 DDU
(Superseded to 9404206001)

$11.99

$

In Stock, only 2 left!

0

12

Echo V356000260

COLLAR - 10

$15.99

$

Usually ships in 2-4 days

0

13

Echo A556000310

DRUM, CLUTCH

$68.99

$

Usually ships in 2-4 days

0

14

Echo 17500006061

CLUTCH ASSY

$121.99

$

Usually ships in 2-4 days

0

15

Echo 90010504006

BOLT 4×6

$0.99

$

Usually ships in 2-4 days

0

16

Echo 17500232431

SHOE SET, CLUTCH (3PCS)

$73.99

$

In Stock, only 1 left!

0

17

Echo 17501832430

SPRING, CLUTCH

$3.49

$

Usually ships in 2-4 days

0

18

Echo 17501616130

BOSS, CLUTCH

$29.99

$

Usually ships in 2-4 days

0

19

Echo 17501916130

PLATE, CLUTCH

$3.99

$

Usually ships in 2-4 days

0

20

Echo C360000000

ARM, CUTTER
(Superseded to C360000001)

$178.99

$

Usually ships in 2-4 days

0

21

Echo 10491508260

COLLAR

$6.99

$

In Stock, only 2 left!

0

22

Echo 17504956030

WASHER, SPRING 8.5×16×0.5

$1.99

$

In Stock, Qty 20+

0

23

Echo 90016205025

BOLT 5×25

$0.99

$

In Stock, Qty 20+

0

24

Echo P021006650

ADJUSTER, BLADE

$

$

Currently unavailable

25

Echo 61121605260

SPRING, ADJUSTER

$3.49

$

Usually ships in 2-4 days

0

26

Echo V455000030

HOLDER, SPRING

$3.99

$

Usually ships in 2-4 days

0

27

Echo V203000070

BOLT 5

$1.99

$

Usually ships in 2-4 days

0
