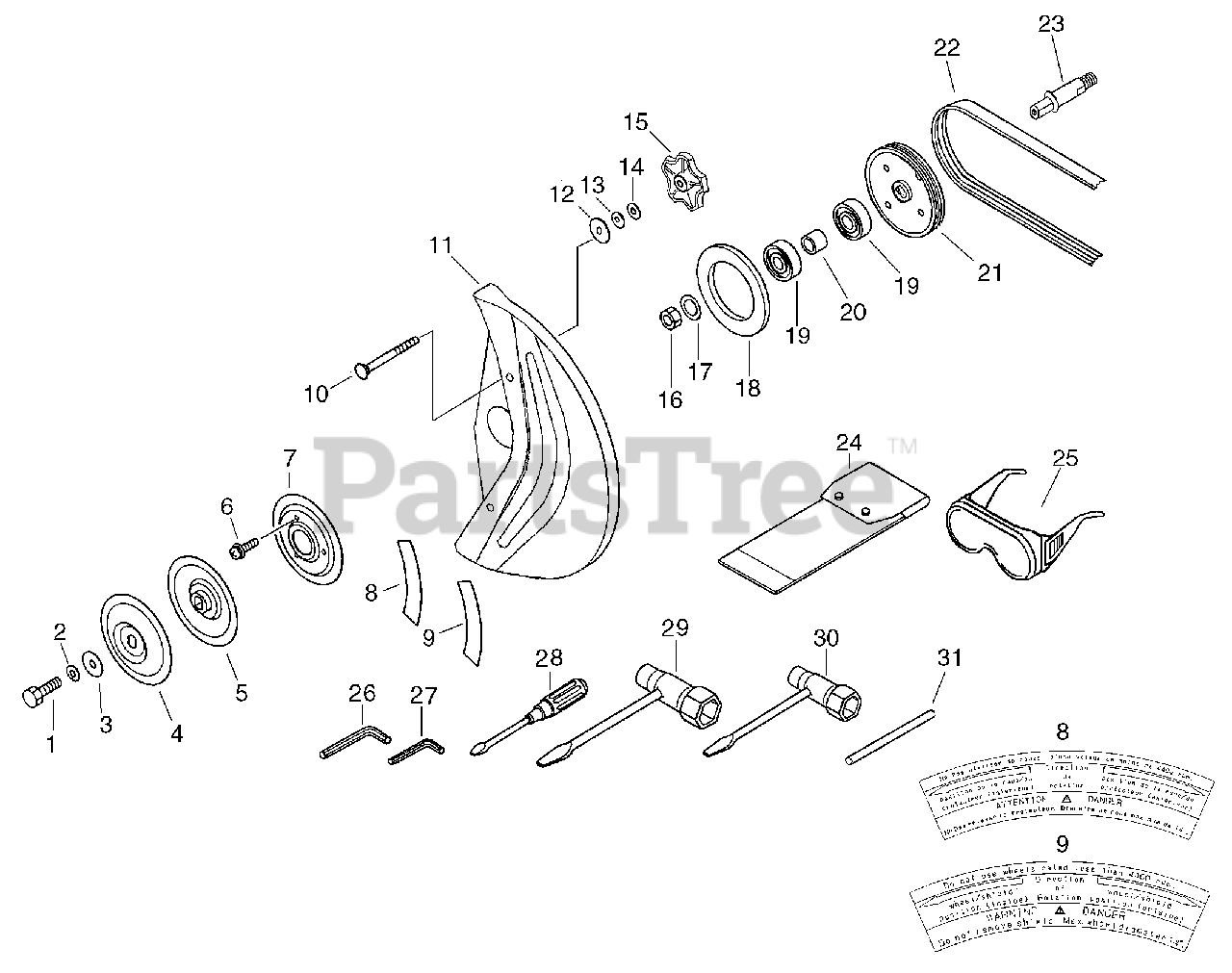

CSG-680 - Echo Cut-Off Saw (SN: C02004001001 - C02004999999) Blade Cover, Belt Parts Diagram

Cut-Off Saw

Blade Cover, Belt Parts Diagram

  • Title

1

Echo 61102005261

BOLT

$2.99

$

Usually ships in 2-4 days

0

2

Echo 90060500010

LOCKWASHER - 10

$0.99

$

In Stock, Qty 6

0

3

Echo 61101905260

WASHER

$5.49

$

Usually ships in 2-4 days

0

4

Echo 61101507062

FLANGE, CUTTER

$59.99

$

Usually ships in 2-4 days

0

5

Echo 61101407062

FLANGE, CUTTER

$40.99

$

Usually ships in 2-4 days

0

5

Echo 61101407062

FLANGE, CUTTER

$40.99

$

Usually ships in 2-4 days

0

6

Echo 90024104010

SCREW - 4X10
(Superseded to 90024204010)

$0.99

$

In Stock, Qty 20+

0

7

Echo 68901305260

PLATE, CUTTER COVER
(Superseded to Discontinued)

$

$

Not available

8

Echo X524001130

LABEL

$

$

Currently unavailable

9

Echo X524001120

LABEL - CAUTION

$6.49

$

Usually ships in 2-4 days

0

10

Echo V205000300

BOLT - 8

$2.49

$

Usually ships in 2-4 days

0

11

Echo C370000020

COVER, CUTTER

$165.99

$

Usually ships in 2-4 days

0

12

Echo V306000110

WASHER - 8

$1.99

$

Usually ships in 2-4 days

0

13

Echo 90060000008

WASHER - 8

$0.99

$

In Stock, Qty 7

0

14

Echo 90060500008

LOCKWASHER - 8

$0.99

$

In Stock, Qty 20+

0

15

Echo V299000210

KNOB, FASTENER

$14.99

$

Usually ships in 2-4 days

0

16

Echo 90050100010

NUT - 10

$0.99

$

In Stock, only 2 left!

0

17

Echo 90060200010

WASHER - 10

$0.99

$

In Stock, Qty 20+

0

18

Echo 68902405260

CUSHION

$15.99

$

Usually ships in 2-4 days

0

19

Echo 90081206202

BEARING, BALL - 6202

$15.99

$

Usually ships in 2-4 days

0

20

Echo 60611721860

COLLAR

$15.99

$

Usually ships in 2-4 days

0

21

Echo V176000030

PULLEY
(Superseded to V176000031)

$107.99

$

Usually ships in 2-4 days

0

22

Echo V196000090

BELT
(Superseded to Discontinued)

$

$

Not available

23

Echo C364000020

SHAFT, CUTTER
(Superseded to C364000021)

$85.99

$

Usually ships in 2-4 days

0

24

Echo 89851039130

BAG, TOOL

$1.99

$

In Stock, only 4 left!

0

25

Echo P021002861

GOGGLES
(Superseded to X690000050)

$4.99

$

In Stock, Qty 16

0

26

Echo A605000100

HEX KEY - 4mm

$

$

Currently unavailable

27

Echo 89561203430

HEX KEY - 3mm
(Superseded to X605000090)

$0.99

$

In Stock, only 3 left!

0

28

Echo 89581100130

SCREWDRIVER

$4.99

$

Usually ships in 2-4 days

0

29

Echo 89541010630

T-WRENCH - 17X19mm

$12.99

$

Usually ships in 2-4 days

0

30

Echo 89541000430

T-WRENCH
(Superseded to 89541006961)

$3.99

$

In Stock, only 3 left!

0

31

Echo 89751801131

LOCKING TOOL

$1.49

$

Usually ships in 2-4 days

0
