CSG-680 - Echo Cut-Off Saw (SN: C23220001001 - C23220999999) Flywheel, Ignition, Starter Parts Diagram

Cut-Off Saw

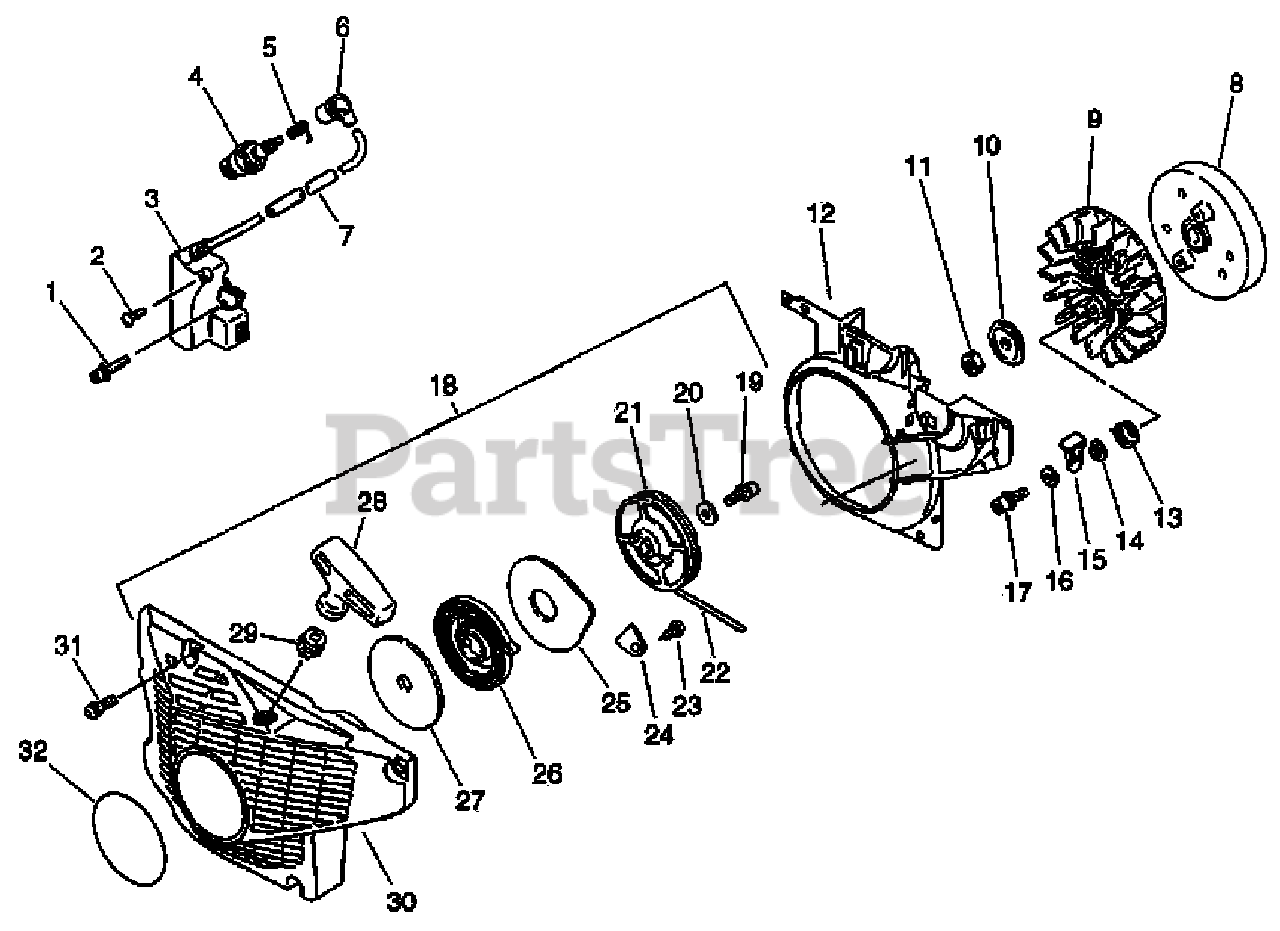

Flywheel, Ignition, Starter Parts Diagram

  • Title

1

Echo 90016204020

BOLT 4×20

$1.49

$

In Stock, Qty 20+

0

2

Echo 90024204008

SCREW 4×8

$0.99

$

In Stock, Qty 8

0

3

Echo 15660132632

COIL, IGNITION

$166.99

$

Usually ships in 2-4 days

0

4

Echo 15901010230

SPARK PLUG - BPMR7A

$3.99

$

In Stock, Qty 20+

0

5

Echo A426000010

TERMINAL, SPARK PLUG

$1.99

$

In Stock, Qty 8

0

6

Echo A427000013

CAP, SPARK PLUG

$3.99

$

In Stock, Qty 20+

0

7

Echo 15661119830

PIPE

$1.99

$

Usually ships in 2-4 days

0

8

Echo 15680032631

FLYWHEEL

$124.99

$

Usually ships in 2-4 days

0

9

Echo 10152132330

FAN

$17.99

$

Usually ships in 2-4 days

0

10

Echo 10014319830

WASHER 8.2×31×0.8

$1.99

$

In Stock, Qty 20+

0

11

Echo 90050000008

NUT M8

$0.99

$

In Stock, Qty 20+

0

12

Echo A172000130

COVER, FAN

$13.99

$

Usually ships in 2-4 days

0

13

Echo 17723419832

SPRING, RETURN

$3.99

$

In Stock, only 2 left!

0

14

Echo V353000201

COLLAR 5

$3.49

$

Usually ships in 2-4 days

0

15

Echo 17721832631

PAWL, STARTER
(Superseded to 17721832632)

$6.49

$

Usually ships in 2-4 days

0

16

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

17

Echo V203000150

BOLT 5×18

$0.99

$

Usually ships in 2-4 days

0

18

Echo P021007500

STARTER ASSY

$117.99

$

Usually ships in 2-4 days

0

19

Echo 90016205014

BOLT 5×14

$1.49

$

In Stock, Qty 7

0

20

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

21

Echo 17721507060

REEL, ROPE

$10.99

$

Usually ships in 2-4 days

0

22

Echo 17722606060

ROPE, STARTER

$13.99

$

Usually ships in 2-4 days

0

23

Echo 90025304008

SCREW 4×8

$0.99

$

In Stock, only 4 left!

0

24

Echo 43314415130

PLATE, EYE

$2.49

$

Usually ships in 2-4 days

0

25

Echo 17722107060

PLATE, STARTER

$12.99

$

In Stock, only 1 left!

0

26

Echo 17722002834

SPRING, RECOIL

$25.99

$

In Stock, only 2 left!

0

27

Echo 17722102830

PLATE, STARTER

$7.49

$

In Stock, only 1 left!

0

28

Echo 17722830830

GRIP, STARTER
(Superseded to 17722830832)

$6.99

$

Usually ships in 2-4 days

0

29

Echo 17722707060

GUIDE, ROPE

$20.99

$

Usually ships in 2-4 days

0

30

Echo A500000061

CASE, STARTER

$

$

Currently unavailable

31

Echo 90016205020

BOLT 5×20

$1.49

$

In Stock, Qty 20+

0

32

Echo X502000900

LABEL, RECOIL STARTER

$2.99

$

In Stock, only 3 left!

0
