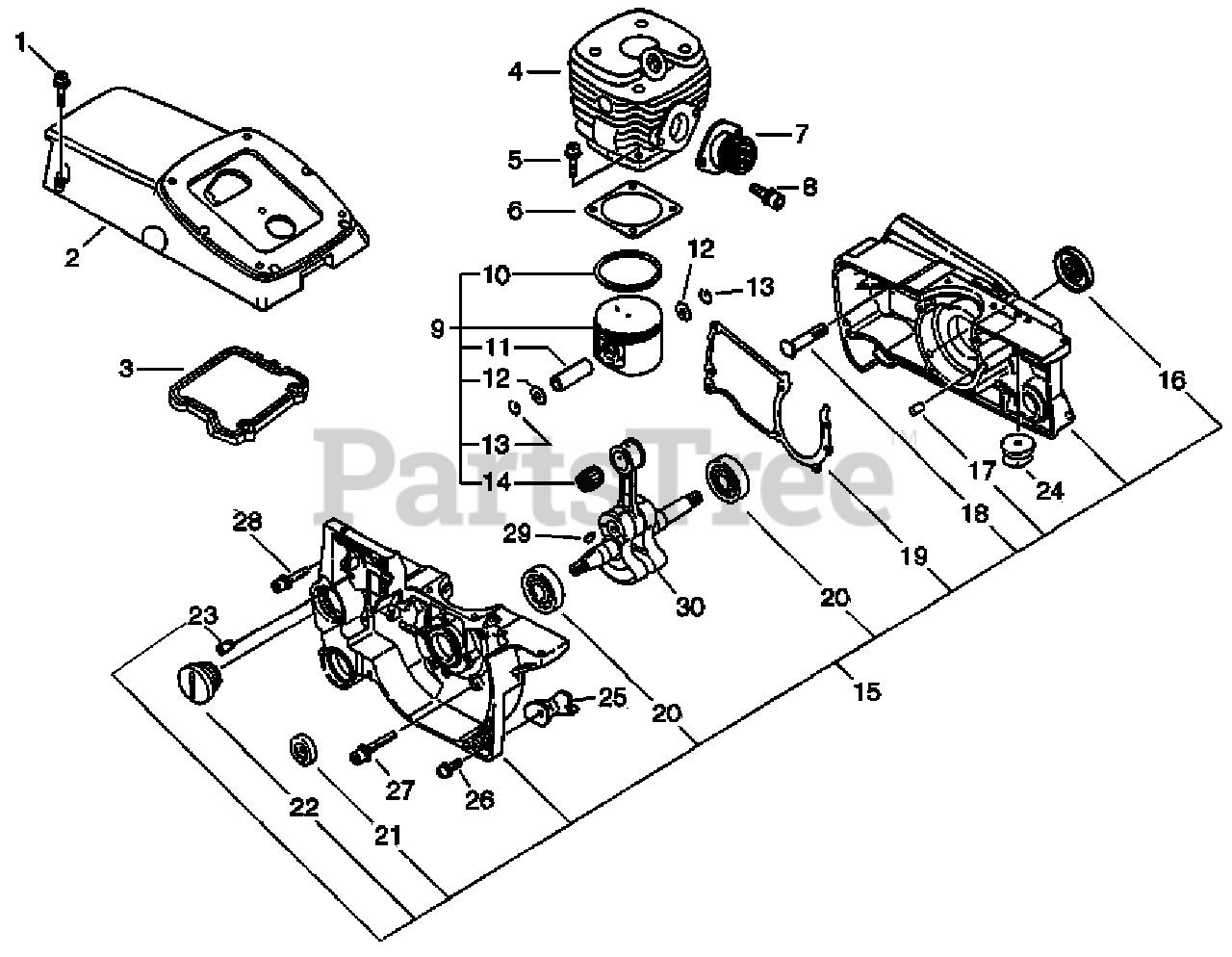

CSG-680 - Echo Cut-Off Saw (SN: C23220001001 - C23220999999) Piston, Crankcase Parts Diagram

Cut-Off Saw

Piston, Crankcase Parts Diagram

  • Title

1

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

2

Echo A160000601

COVER, ENGINE

$

$

Currently unavailable

3

Echo V420000701

CUSHION

$7.49

$

Usually ships in 2-4 days

0

4

Echo A130000980

CYLINDER
(Superseded to A130002000)

$149.99

$

In Stock, only 2 left!

0

5

Echo 90016205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

6

Echo 10101032431

GASKET, CYLINDER

$2.99

$

In Stock, only 1 left!

0

7

Echo A202000040

BELLOWS, INTAKE

$24.99

$

Usually ships in 2-4 days

0

8

Echo 90016205014

SCREW - 5X14

$1.49

$

In Stock, Qty 20+

0

9

Echo P021015290

PISTON KIT

$85.99

$

Usually ships in 2-4 days

0

10

Echo A101000150

RING, PISTON

$12.99

$

Usually ships in 2-4 days

0

11

Echo V610000000

PIN, PISTON

$4.49

$

Usually ships in 2-4 days

0

12

Echo 10001418430

SPACER, PISTON

$3.99

$

In Stock, only 2 left!

0

13

Echo V580000000

RING, RETAINING

$0.99

$

Usually ships in 2-4 days

0

14

Echo 10001232430

BEARING, NEEDLE

$14.99

$

Usually ships in 2-4 days

0

15

Echo P021007491

CRANKCASE KIT
(Superseded to P021007492)

$373.99

$

Usually ships in 2-4 days

0

16

Echo 10021232430

SEAL, OIL

$6.49

$

In Stock, only 2 left!

0

17

Echo 10021502830

PIN - LOCATING

$0.99

$

Usually ships in 2-4 days

0

18

Echo 43301121861

STUD, GUIDE BAR

$10.99

$

Usually ships in 2-4 days

0

19

Echo 10024232430

GASKET, CRANKCASE

$6.49

$

Usually ships in 2-4 days

0

20

Echo 90081036202

BEARING, BALL - 6202

$10.99

$

In Stock, only 2 left!

0

21

Echo 10021219830

SEAL, OIL

$5.99

$

In Stock, Qty 5

0

22

Echo 43601307061

CAP, OIL TANK

$4.99

$

Usually ships in 2-4 days

0

23

Echo 43611413930

VENT, TANK

$6.99

$

In Stock, only 1 left!

0

24

Echo 10025132430

CUSHION - A

$1.99

$

In Stock, only 2 left!

0

25

Echo 10091732430

CUSHION

$17.99

$

Usually ships in 2-4 days

0

26

Echo 90023805014

SCREW - 5X14

$0.99

$

In Stock, Qty 11

0

27

Echo 90016205035

SCREW - 5X35

$1.49

$

In Stock, Qty 20+

0

28

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

29

Echo 10014230830

KEY

$1.49

$

In Stock, Qty 6

0

30

Echo A011000292

CRANKSHAFT ASSY

$251.99

$

Usually ships in 2-4 days

0
