CSLT 5424 (13AQA2KW897) - Columbia 54" Lawn Tractor (2015) Deck Lift Parts Diagram

54" Lawn Tractor

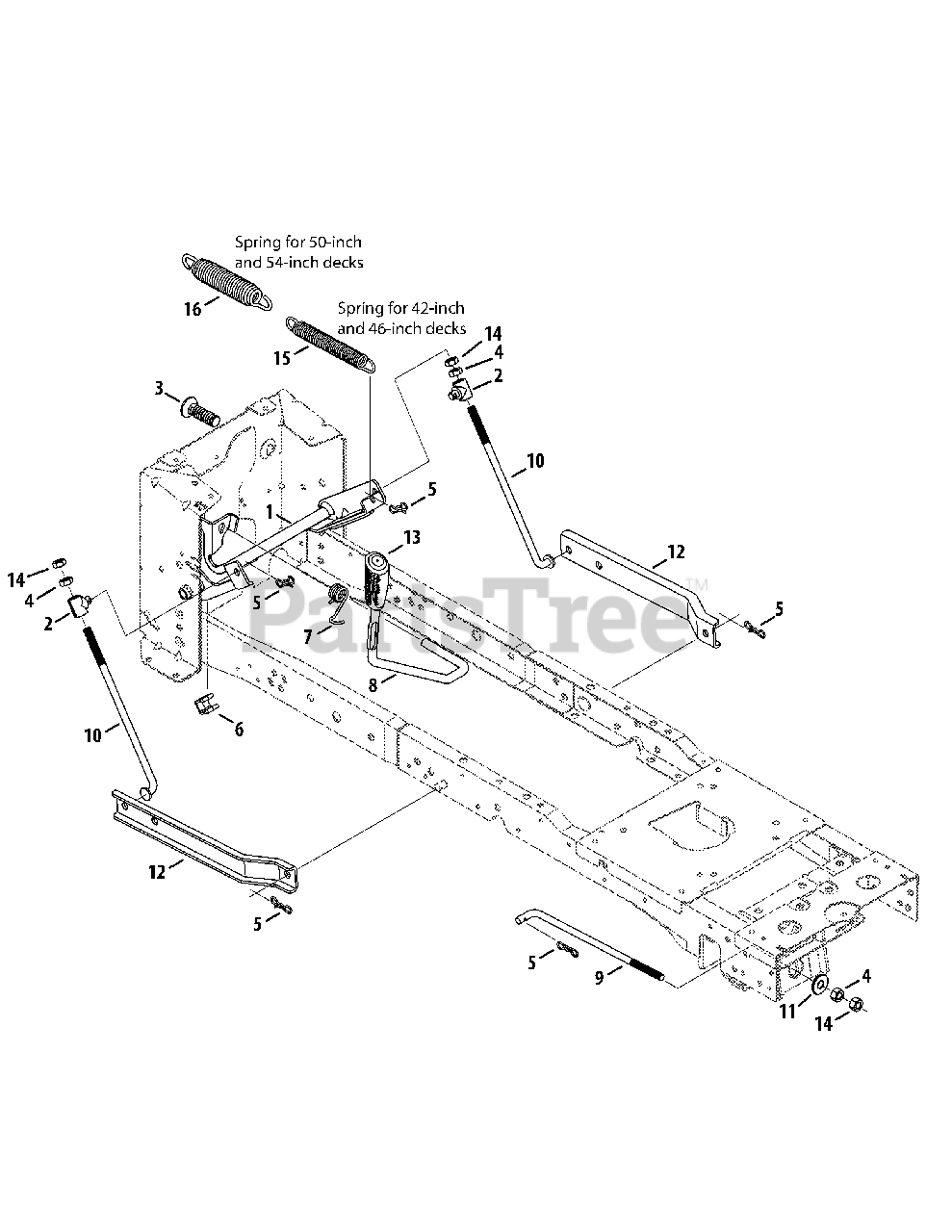

Deck Lift Parts Diagram

  • Title

1

MTD 983-05077

Shaft Assembly, Lift

$68.99

$

In Stock, only 1 left!

0

2

MTD 711-06143A

Ferrule, .510 x .496

$13.99

$

Usually ships in 3-6 days

0

3

MTD 711-06346A

Spring Insert

$11.99

$

Usually ships in 3-6 days

0

4

MTD 912-3048

Nut, Jam, 1/2-13
(Superseded to 712-3048)

$4.99

$

In Stock, Qty 20+

0

5

MTD 714-05005

Bow-Tie Cotter Pin

$4.99

$

In Stock, Qty 20+

0

6

MTD 731-09629A

Spacer, .76 ID x .93 LG

$4.49

$

Usually ships in 3-6 days

0

7

MTD 732-05086A

Torsion Spring

$6.49

$

Usually ships in 3-6 days

0

8

MTD 747-06186A

Deck Lift Handle

$31.99

$

Usually ships in 3-6 days

0

9

MTD 747-06247B

Deck Lift Rod
(Superseded to 747-06247C)

$19.99

$

In Stock, Qty 19

0

10

MTD 747-06392A

Lift Adjustment Link

$18.99

$

In Stock, Qty 10

0

11

MTD 748-04069

Pivot Cup
(Superseded to 748-04069A)

$5.99

$

In Stock, Qty 20+

0

12

MTD 783-08280

Rear Lift Arm
(Superseded to 783-13812)

Variations

MTD 783-08280-0637

Lift Link, Powder Black - POWDER BLACK (0637)

$20.99

$

Usually ships in 3-6 days

0

$20.99

$

Usually ships in 3-6 days

0

13

MTD 720-05087

Grip

$13.99

$

Usually ships in 3-6 days

0

14

MTD 712-3083

Hex Lock Nut, 1/2-13

$4.49

$

In Stock, Qty 20+

0

15

MTD n/a

Lift Assist Spring, (42"/46")

Note: Not used on this model

$

$

Currently unavailable

16

MTD 732-05242

Lift Assist Spring, (50"/54")
(Superseded to 732-05242C)

$22.99

$

Usually ships in 3-6 days

0
