CST 100 (25A-262J897) - Columbia Walk-Behind Trimmer (2019) Handle Assembly Parts Diagram

Walk-Behind Trimmer

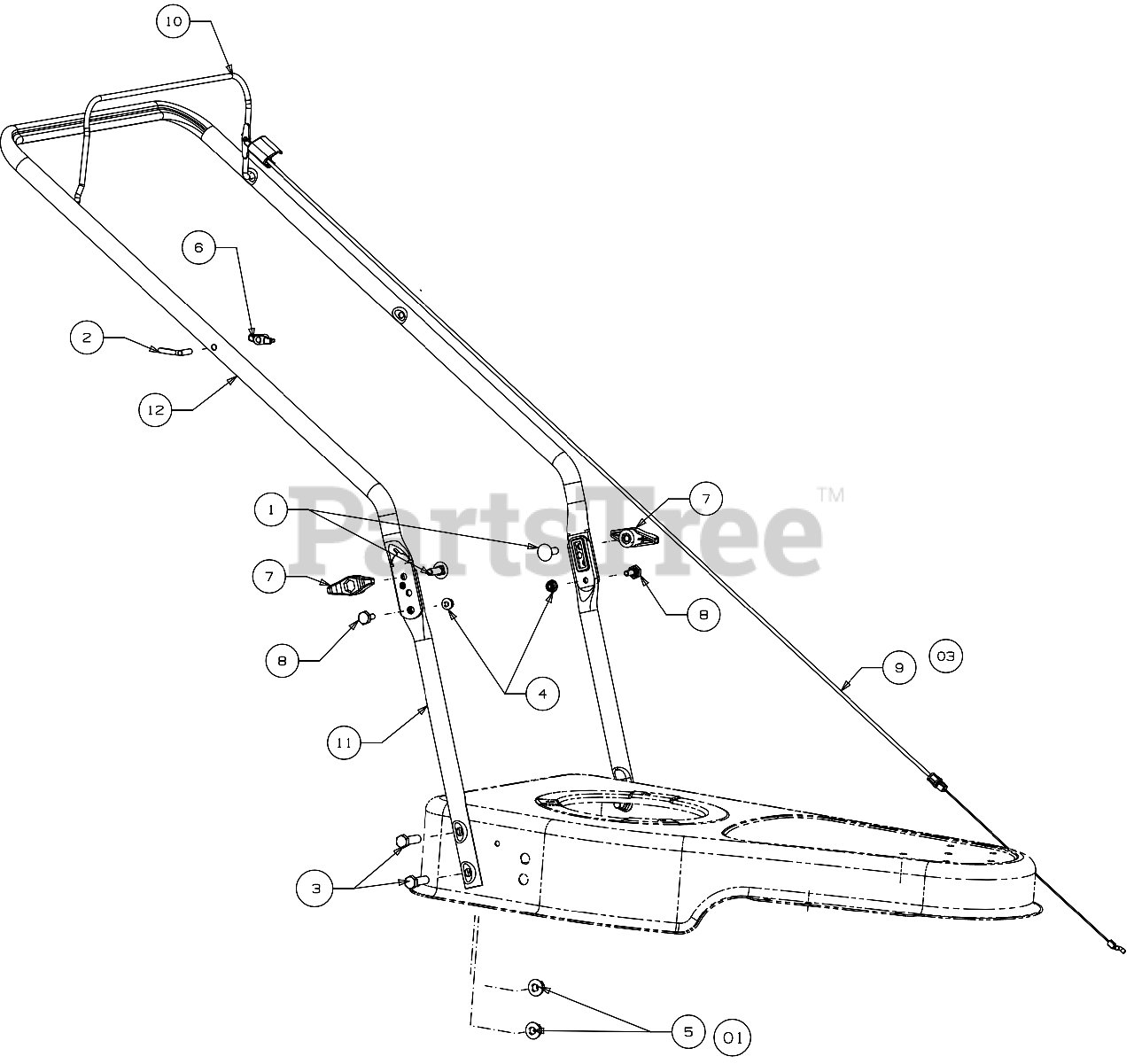

Handle Assembly Parts Diagram

  • Title

1

MTD 710-04998

SCREW 5/16-18 x 1.00 GR5

$5.49

$

In Stock, Qty 20+

0

2

MTD 710-1205

EYEBOLT 1/4-20

$3.99

$

In Stock, Qty 14

0

3

MTD 710-3005

SCREW 3/8-16 x 1.25 GR5

$3.99

$

In Stock, Qty 20+

0

4

MTD 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

5

MTD 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

6

MTD 720-0279

HANDLE KNOB

$4.49

$

In Stock, Qty 20+

0

7

MTD 710-04122

SCREW M12-1.75X50 GR8

$

$

Not available

8

MTD 738-04419A

SHOULDER SCREW

$3.99

$

In Stock, Qty 20+

0

9

MTD 946-05141

CONTROL CABLE 40"

$20.99

$

In Stock, Qty 20+

0

10

MTD 747-06246

OPERATOR BAIL

Note: (Choose Color When Ordering)

Variations

MTD 747-06246-0637

Operator Bail, Black - POWDER BLACK (0637)

$12.99

$

In Stock, Qty 20+

0

$12.99

$

In Stock, Qty 20+

0

11

MTD 749-05102

LOWER HANDLE (ADJUSTABLE)

Note: (Choose Color When Ordering)

Variations

MTD 749-05102-0637

Lower Handle with Adjust - POWDER BLACK (0637)

$11.99

$

In Stock, Qty 9

0

$9.99

$

Usually ships in 3-6 days

0

12

MTD 749-05103

UPPER HANDLE (ADJUSTABLE)

Note: (Choose Color When Ordering)

Variations

MTD 749-05103-0637

Upper Adjust Handle - POWDER BLACK (0637)

$38.99

$

Usually ships in 3-6 days

0

$33.99

$

Usually ships in 3-6 days

0
