CST-58V (CPH-58V) (SSA-58V) - Echo String Trimmer, 58V Battery, Split Boom, Revision 05 (2018-03) General Assembly (Echo 58 Volt Power Head - Item Number CPH-58V) Parts Diagram

String Trimmer, 58V Battery, Split Boom, Revision 05

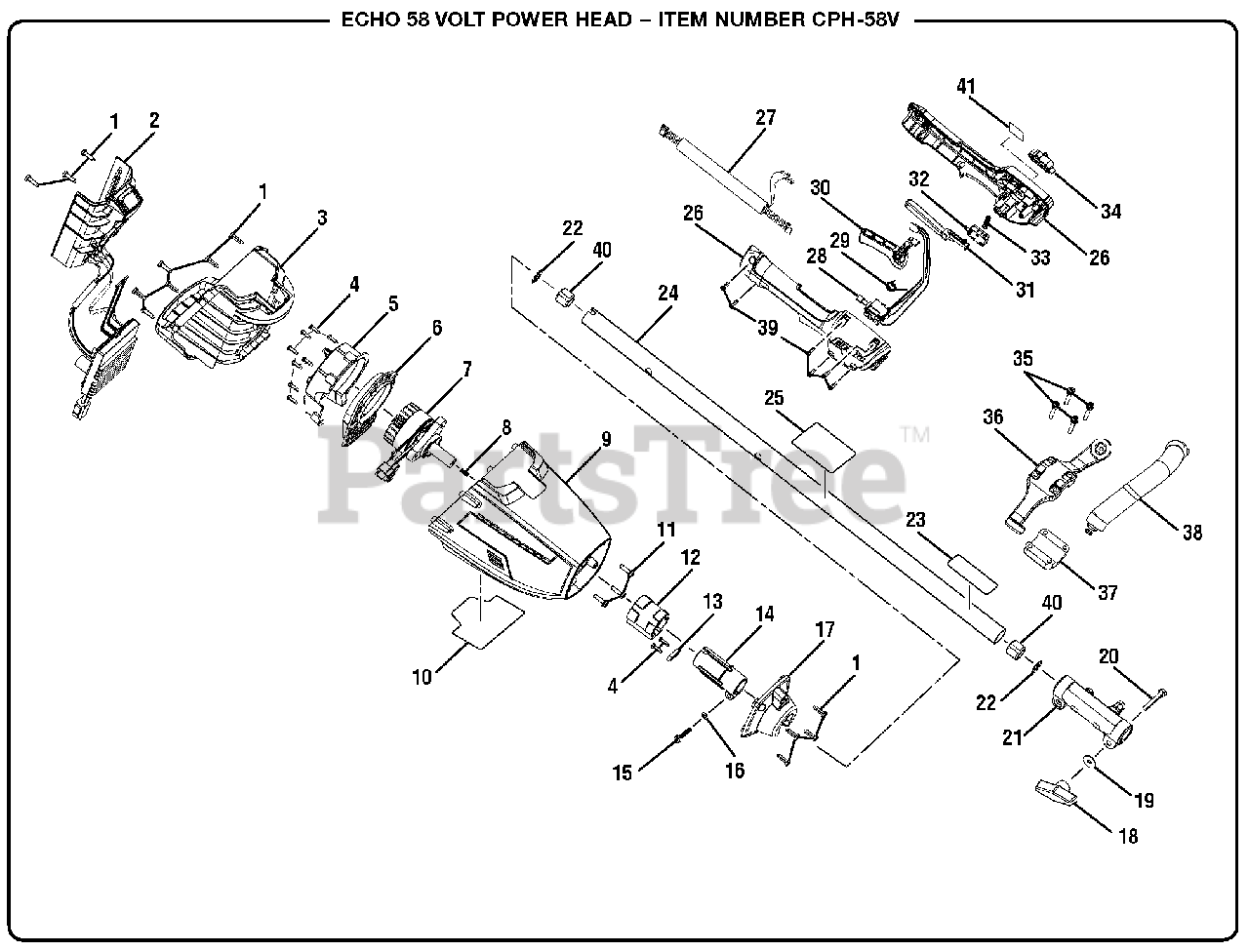

General Assembly (Echo 58 Volt Power Head - Item Number CPH-58V) Parts Diagram

  • Title

1

Echo 662051002

Screw (M5 x 18 mm, T25 Torx Pan Hd.)

$1.49

$

In Stock, Qty 8

0

2

Echo 307894001

Circuit Board and Battery Carriage Assembly

$92.99

$

Usually ships in 2-4 days

0

3

Echo 528291001

Battery Mounting Box

$4.49

$

In Stock, only 1 left!

0

4

Echo 661817001

Screw (M4 x 13.5 mm, T15 Torx Pan Hd.)

$1.49

$

In Stock, Qty 15

0

5

Echo 528332001

Motor Cover

$2.49

$

Usually ships in 2-4 days

0

6

Echo 528333001

Motor Volute

$1.49

$

Usually ships in 2-4 days

0

7

Echo 230555002

Motor and Pinion Assembly

$107.99

$

Usually ships in 2-4 days

0

8

Echo 679065001

Compression Spring

$1.49

$

Usually ships in 2-4 days

0

9

Echo 307838001

Motor Housing Assembly

Note: (Inc. Key 10)

$13.99

$

Usually ships in 2-4 days

0

10

Echo 941588074

Data Label

$1.49

$

Usually ships in 2-4 days

0

11

Echo 662052001

Screw (M5 x 15mm, T25 Torx Flange Hd.)

$1.49

$

In Stock, only 2 left!

0

12

Echo 563584001

Ring (Rubber)

$10.99

$

Usually ships in 2-4 days

0

13

Echo 513211001

Wire Clamp

$7.49

$

Usually ships in 2-4 days

0

14

Echo 642395001

COUPLER

$5.49

$

Usually ships in 2-4 days

0

15

Echo 662174001

Screw (M5 x 26 mm, T25 Torx Pan Hd.)

$1.49

$

In Stock, only 2 left!

0

16

Echo 678287001

Washer (ID5.2 x OD10 x 1t)

$1.49

$

Usually ships in 2-4 days

0

17

Echo 528293001

End Cap

$1.99

$

Usually ships in 2-4 days

0

18

Echo 528274001

Knob Assembly

$2.49

$

In Stock, only 1 left!

0

19

Echo 636191001

Washer (ID6.6 x OD20 x t1.6)

$1.49

$

In Stock, only 2 left!

0

20

Echo 662155001

Screw (M6 x 40 mm, Hex Hd.)

$1.49

$

In Stock, only 2 left!

0

21

Echo 307339001

Coupler Assembly

$14.99

$

Usually ships in 2-4 days

0

22

Echo 636602001

Spring Washer (ID11 x OD23 x 1.54t)

$1.49

$

Usually ships in 2-4 days

0

23

Echo 940657154

Warning Icon Label

$1.49

$

Usually ships in 2-4 days

0

24

Echo 307840001

Upper Boom Assembly

Note: (Inc. Key Nos. 22-23, 25 and 40)

$25.99

$

In Stock, only 3 left!

0

25

Echo 940851039

Boom Label

$1.49

$

Usually ships in 2-4 days

0

26

Echo 307839001

Rear Handle Housing Assembly

Note: (Inc. Key 41)

$6.49

$

In Stock, only 2 left!

0

27

Echo 291357001

Wire Assembly

$5.49

$

Usually ships in 2-4 days

0

28

Echo 760952002

Variable Signal Switch

$8.99

$

In Stock, only 4 left!

0

29

Echo 694572001

Torsion Spring

$1.49

$

In Stock, only 3 left!

0

30

Echo 528236001

Switch Trigger (Button)
(Superseded to 351052001)

$1.49

$

In Stock, Qty 10

0

31

Echo 528235001

Lock-Out Button

$1.49

$

In Stock, Qty 10

0

32

Echo 760689007

Hi-Lo Switch

$2.99

$

In Stock, Qty 18

0

33

Echo 679973001

Compression Spring (Trigger)

$1.49

$

In Stock, only 3 left!

0

34

Echo 528489001

Switch Actuator

$1.49

$

In Stock, Qty 5

0

35

Echo 662184001

Screw w/Washers (M5 x 26 mm, Pan Hd.)

$1.49

$

Usually ships in 2-4 days

0

36

Echo 528392001

Bracket (Handle)
(Superseded to 307893001)

$7.49

$

In Stock, only 2 left!

0

37

Echo 528393001

Clamp (Auxiliary Handle)

$1.49

$

In Stock, only 1 left!

0

38

Echo 307893001

Front Handle Assembly

$7.49

$

In Stock, only 2 left!

0

39

Echo 660024061

Screw (M4 x 14 mm, T20 Torx Pan Hd.)

$1.49

$

Usually ships in 2-4 days

0

40

Echo 563602001

SPACER

$1.49

$

In Stock, only 3 left!

0

41

Echo 940851047

Throttle Label

$1.49

$

Usually ships in 2-4 days

0

Echo 000998945DG9

58V Battery Pack (CBP-58V20, Not Included)

Note: NOT SHOWN

$

$

Currently unavailable

Echo 000998946DG9

58V Battery Pack (CBP-58V40, Not Included)

$

$

Currently unavailable

Echo 140330001

58V Charger (CBC-58V, Not Included)

$

$

Currently unavailable

Echo 991000234

Operator's Manual (ECHO #99922205224)

$

$

Currently unavailable
