CST-610 EVL - Echo Chainsaw Carburetor Parts Diagram

Dimensions: 418 x 258 x 299 mm (16.5 x 10.2 x 11.9 in). Weight: 6.9 kg dry (no chain/guide bar). Engine: 61 cc (3.7 cu in.) air-cooled 2-stroke horizontally opposed twin-cylinder. Carburetor: Walbro HDA diaphragm. Magneto/ignition: CDI flywheel magneto. Spark plugs: NGK 6PM 7A (2 pcs). Starter: recoil. Transmission: automatic centrifugal clutch. Fuel: gasoline + 2-stroke oil 32:1 or 50:1 (special Echo oil). Fuel tank: 0.61 L (20.6 fl oz). Chain oil tank: 0.30 L (10.2 fl oz). Chain: 20-in., pitch 20b50, 3/8". Lubrication: automatic plunger pump, adjustable & manual. Features: hand guards, front/rear lockout, throttle control mount, anti-vibration latch, high-speed idle, chain catcher, chain brake (EVLP only).

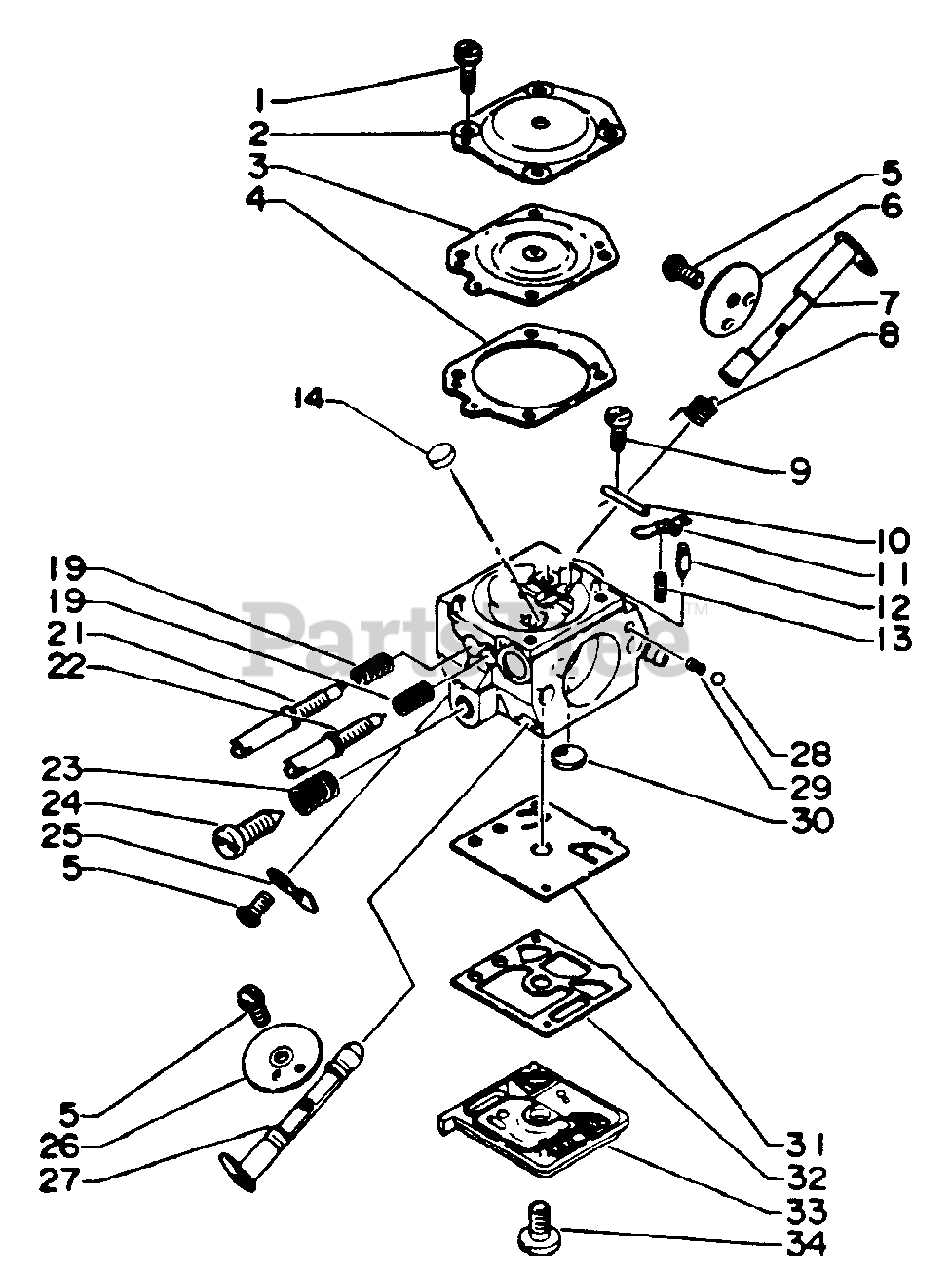

Carburetor Parts Diagram

  • Title

Echo 12300016132

CARBURETOR - HDA
(Superseded to Discontinued)

$

$

Not available

1

Echo 12313002960

SCREW

$1.99

$

In Stock, only 1 left!

0

2

Echo 12314216130

COVER, DIAPHRAGM
(Superseded to Discontinued)

$

$

Not available

3

Echo 12314116130

DIAPHRAGM, METERING

$14.99

$

In Stock, only 2 left!

0

4

Echo 12314016130

GASKET, METERING DIAPHRAGM

$2.99

$

In Stock, Qty 11

0

5

Echo 12311403930

SCREW

$1.49

$

In Stock, Qty 6

0

6

Echo 12313216130

VALVE, THROTTLE

$2.49

$

Usually ships in 2-4 days

0

7

Echo 12311716131

SHAFT, THROTTLE
(Superseded to Discontinued)

$

$

Not available

8

Echo 12311316131

SPRING, RETURN
(Superseded to Discontinued)

$

$

Not available

9

Echo 12313903930

SCREW, METERING LEVER PIN

$6.99

$

Usually ships in 2-4 days

0

10

Echo 12313803930

PIN, METERING LEVER

$6.99

$

In Stock, only 3 left!

0

11

Echo 12312316130

LEVER
(Superseded to Discontinued)

$

$

Not available

12

Echo 12313716130

VALVE, INLET NEEDLE
(Superseded to Discontinued)

$

$

Not available

13

Echo 12312216130

SPRING

$

$

Not available

14

Echo 12314610630

PLUG, WELCH
(Superseded to 12314610631)

$1.99

$

In Stock, only 1 left!

0

19

Echo 12312116130

SPRING, NEEDLE

$1.49

$

In Stock, only 1 left!

0

21

Echo 12312016132

NEEDLE, HIGH SPEED
(Superseded to Discontinued)

$

$

Not available

22

Echo 12311816131

NEEDLE, IDLE

$

$

Not available

23

Echo 12313311130

SPRING, IDLE ADJUST
(Superseded to Discontinued)

$

$

Not available

24

Echo 12313416130

SCREW, IDLE ADJUST
(Superseded to Discontinued)

$

$

Not available

25

Echo 12315612330

STOP, THROTTLE

$2.49

$

Usually ships in 2-4 days

0

26

Echo 12313217330

VALVE, CHOKE
(Superseded to Discontinued)

$

$

Not available

27

Echo 12313116130

SHAFT, CHOKE
(Superseded to Discontinued)

$

$

Not available

28

Echo 12313610630

BALL, CHOKE FRICTION

$0.99

$

In Stock, only 1 left!

0

29

Echo 12313510630

SPRING

$1.49

$

Usually ships in 2-4 days

0

30

Echo 12312610631

SCREEN, FUEL INLET

$1.99

$

In Stock, Qty 20+

0

31

Echo 12311212330

DIAPHRAGM, FUEL PUMP

$7.49

$

In Stock, Qty 6

0

32

Echo 12312512330

GASKET, FUEL PUMP

$3.99

$

In Stock, only 2 left!

0

33

Echo 12312416130

COVER, PUMP
(Superseded to Discontinued)

$

$

Not available

34

Echo 12311016130

SCREW

$0.99

$

Usually ships in 2-4 days

0
