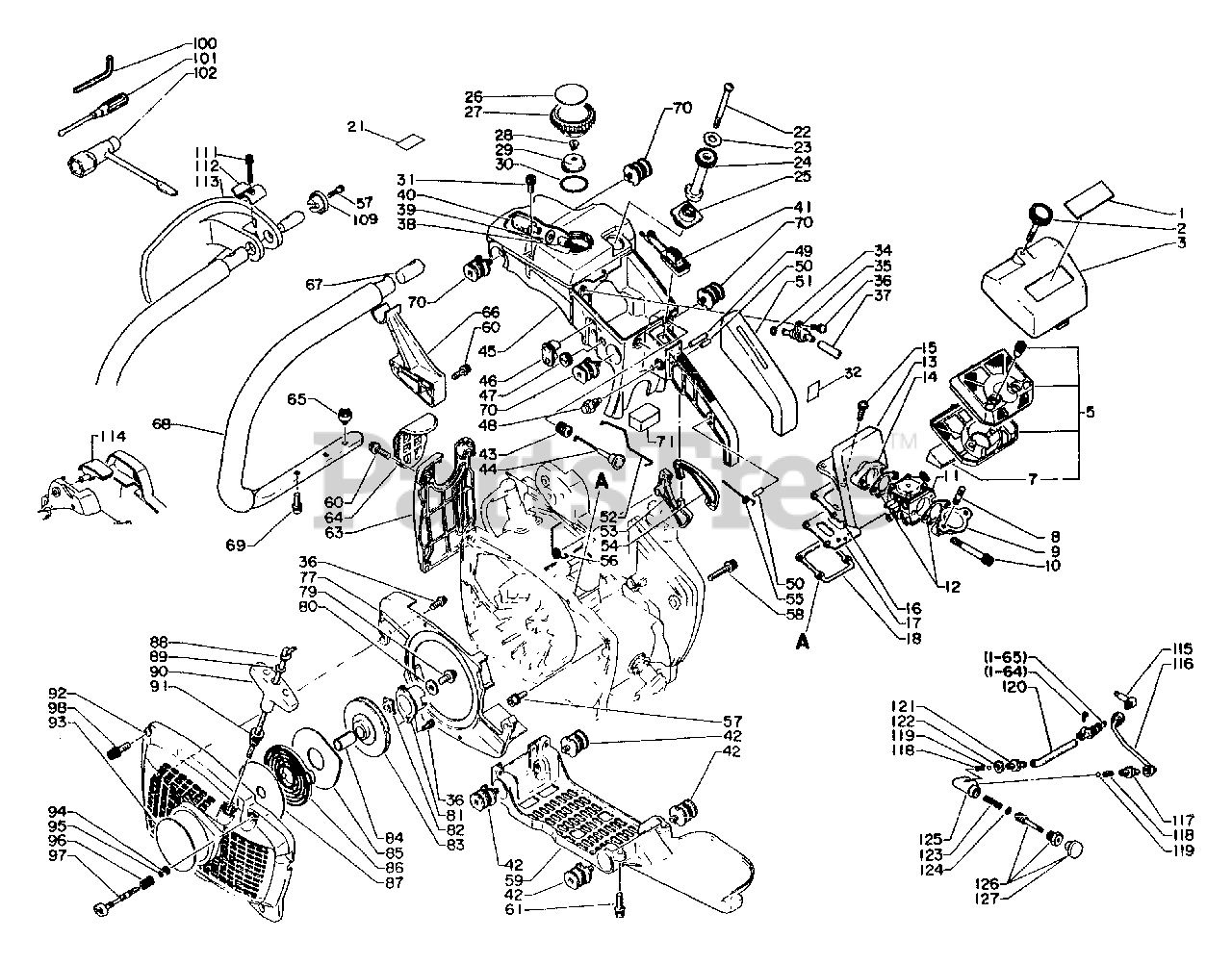

CST-610 EVL - Echo Chainsaw Starter, Handles, Oiler Manual, Air Cleaner, Intake, Tools Parts Diagram

Chainsaw

Starter, Handles, Oiler Manual, Air Cleaner, Intake, Tools Parts Diagram

  • Title

1

Echo 89015116031

LABEL
(Superseded to 89015116032)

$

$

Not available

3

Echo 13030216131

AIR FILTER COVER ASSY
(Superseded to Discontinued)

Note: Includes 2.

$

$

Not available

2

Echo 13041516130

THUMBSCREW
(Superseded to Discontinued)

$

$

Not available

5

Echo 13030016132

AIR FILTER ASSY
(Superseded to 13030016133)

Note: Includes 7.

$

$

Not available

7

Echo 12903016131

PAD, FOAM
(Superseded to Discontinued)

$

$

Not available

8

Echo 13071216130

STUD
(Superseded to Discontinued)

$

$

Not available

9

Echo 13071116131

MANIFOLD, INTAKE
(Superseded to 13071116132)

$12.99

$

Usually ships in 2-4 days

0

10

Echo 90016205055

BOLT 5×55

$2.49

$

Usually ships in 2-4 days

0

11

Echo 12300016132

CARBURETOR - HDA
(Superseded to Discontinued)

$

$

Not available

12

Echo 13052116130

GASKET
(Superseded to 13052116131)

$0.99

$

In Stock, only 1 left!

0

13

Echo 13032016130

GASKET - FOAM
(Superseded to Discontinued)

$

$

Not available

14

Echo 13050516132

ADAPTER, INTAKE

$14.99

$

Usually ships in 2-4 days

0

15

Echo 90024405018

SCREW 5×18
(Superseded to Discontinued)

$

$

Not available

16

Echo 13061416130

GASKET
(Superseded to 13061416131)

$1.99

$

In Stock, only 3 left!

0

17

Echo 13060016131

REED VALVE ASSY
(Superseded to Discontinued)

$

$

Not available

18

Echo 13061016130

GASKET
(Superseded to 13061016131)

$1.99

$

In Stock, only 3 left!

0

21

Echo 89017613031

LABEL - NOISE

$3.49

$

Usually ships in 2-4 days

0

22

Echo 90022005075

SCREW 5×75

$1.99

$

Usually ships in 2-4 days

0

23

Echo 89002203430

LABEL, CAUTION

$0.99

$

In Stock, only 1 left!

0

24

Echo 43703916131

KNOB

$3.49

$

Usually ships in 2-4 days

0

25

Echo 43761416130

GROMMET, DIAL

$

$

Not available

Echo 13160010231

CAP ASSY
(Superseded to Discontinued)

Note: Consists of 26 thru 30.

$

$

Not available

26

Echo 89015412730

LABEL - FUEL MIX
(Superseded to 89014706160)

$

$

Not available

27

Echo 13101710231

CAP
(Superseded to 13100610231)

$

$

Not available

28

Echo 13131400330

VALVE, CHECK

$13.99

$

In Stock, only 2 left!

0

29

Echo 13101500830

HOLDER, VENT

$3.99

$

In Stock, only 1 left!

0

30

Echo 90072000029

O-RING 29

$3.99

$

In Stock, Qty 13

0

31

Echo 90010505010

BOLT M5×10

$1.49

$

In Stock, Qty 8

0

32

Echo 89012112331

LABEL - CHOKE
(Superseded to Discontinued)

$

$

Not available

34

Echo 90072000007

O-RING 7 MM

$0.99

$

In Stock, only 1 left!

0

35

Echo 13201116130

CONNECTOR, PIPE
(Superseded to Discontinued)

$

$

Not available

36

Echo 900242-04010

SCREW 4×10

$0.99

$

In Stock, Qty 20+

0

37

Echo 13201216131

PIPE, FUEL
(Superseded to Discontinued)

$

$

Not available

38

Echo 13201016132

PIPE, FUEL
(Superseded to Discontinued)

$

$

Not available

39

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

40

Echo 13120002830

FILTER, FUEL
(Superseded to 13120514930)

$9.99

$

In Stock, Qty 20+

0

41

Echo 16340016130

SWITCH, ON-OFF
(Superseded to Discontinued)

$

$

Not available

42

Echo 10090516130

CUSHION
(Superseded to 10090716030)

$

$

Not available

43

Echo 17821100330

GROMMET

$2.49

$

Usually ships in 2-4 days

0

44

Echo 17851016130

ROD, CHOKE
(Superseded to Discontinued)

$

$

Not available

45

Echo 35190516131

HANDLE

$239.99

$

Usually ships in 2-4 days

0

46

Echo 12901012330

GROMMET
(Superseded to Discontinued)

$

$

Not available

47

Echo 15061402910

GROMMET

$0.99

$

In Stock, only 1 left!

0

48

Echo 17830212330

LATCH, THROTTLE
(Superseded to 17830237930)

$9.99

$

In Stock, only 1 left!

0

49

Echo 90034050025

PIN, SPRING 5×25
(Superseded to Discontinued)

$

$

Not available

50

Echo 90034040013

PIN, SPRING 4×13

$0.99

$

In Stock, Qty 7

0

51

Echo 35111116130

GRIP
(Superseded to Discontinued)

$

$

Not available

52

Echo 17801116131

ROD, THROTTLE

$3.99

$

Usually ships in 2-4 days

0

53

Echo 17801012332

TRIGGER, THROTTLE
(Superseded to 17801012333)

$

$

Not available

54

Echo 17809012330

LOCKOUT, THROTTLE
(Superseded to Discontinued)

$

$

Not available

55

Echo 17809110531

SPRING, LOCKOUT RETURN

$2.49

$

In Stock, only 1 left!

0

56

Echo 17804315130

SPRING, THROTTLE RETURN

$2.49

$

In Stock, only 4 left!

0

57

Echo 90016205014

BOLT 5×14

$1.49

$

In Stock, Qty 7

0

58

Echo 90016205030

BOLT 5×30

$1.49

$

In Stock, only 2 left!

0

59

Echo 35112316131

SUPPORTER
(Superseded to Discontinued)

$

$

Not available

60

Echo 90016205018

BOLT 5×18

$0.99

$

In Stock, only 3 left!

0

61

Echo 90016205020

BOLT 5×20

$1.49

$

In Stock, Qty 20+

0

63

Echo 35114416131

BRACKET, HANDLE
(Superseded to Discontinued)

$

$

Not available

64

Echo 35114516130

COVER, BRACKET
(Superseded to Discontinued)

$

$

Not available

66

Echo 35161416131

BRACKET, HANDLE - UPPER
(Superseded to Discontinued)

$

$

Not available

68

Echo 35160616132

HANDLE, FRONT
(Superseded to Discontinued)

Note: Includes 65 and 67.

$

$

Not available

65

Echo 10025316132

CUSHION
(Superseded to Discontinued)

$

$

Not available

67

Echo 35161716130

INSERT
(Superseded to Discontinued)

$

$

Not available

69

Echo 90010605014

BOLT 5×14

$1.49

$

In Stock, Qty 20+

0

70

Echo 10090716030

CUSHION
(Superseded to Discontinued)

$

$

Not available

71

Echo 13033116130

PAD, FOAM
(Superseded to Discontinued)

$

$

Not available

76

Echo 90024204008

SCREW 4×8

$0.99

$

In Stock, Qty 8

0

77

Echo 17726216131

PLATE, STARTER
(Superseded to 17730810460)

$

$

Not available

Echo 17720016131

STARTER ASSY
(Superseded to Discontinued)

Note: Consists of 36 and 79 thru 92.

$

$

Not available

36

Echo 900242-04010

SCREW 4×10

$0.99

$

In Stock, Qty 20+

0

79

Echo 900242-05010

SCREW 5×10

$0.99

$

In Stock, Qty 20+

0

80

Echo 177214-02830

WASHER 5.2×16×1.0

$0.99

$

In Stock, only 2 left!

0

81

Echo 17724302833

PAWL CATCHER

$12.99

$

Usually ships in 2-4 days

0

82

Echo 17724602832

RETAINER, ROPE

$

$

Not available

83

Echo 17721502834

REEL, ROPE
(Superseded to Discontinued)

$

$

Not available

84

Echo 17721602832

BUSHING

$1.99

$

In Stock, only 1 left!

0

85

Echo 17724212330

PLATE, SIDE

$6.49

$

In Stock, only 2 left!

0

86

Echo 17722002834

SPRING, RECOIL

$25.99

$

In Stock, only 1 left!

0

87

Echo 17722102830

PLATE, STARTER

$7.49

$

In Stock, only 2 left!

0

88

Echo 17722602830

ROPE, STARTER
(Superseded to 17722607060)

$12.99

$

In Stock, only 4 left!

0

89

Echo 17722914330

SPACER

$1.49

$

In Stock, Qty 5

0

90

Echo 17722812330

HANDLE

$30.99

$

In Stock, Qty 12

0

91

Echo 17722705020

GUIDE, ROPE

$4.99

$

In Stock, only 3 left!

0

92

Echo 17720916131

CASE, RECOIL STARTER
(Superseded to Discontinued)

$

$

Not available

93

Echo 89011218331

LABEL - ECHO
(Superseded to 89011238130)

$9.49

$

In Stock, only 3 left!

0

94

Echo 90070000004

E-RING 4

$0.99

$

In Stock, Qty 20+

0

95

Echo 43705602830

O-RING

$1.99

$

Usually ships in 2-4 days

0

96

Echo 12902016130

SPRING, COIL

$

$

Not available

97

Echo 12901316130

ADJUSTER, IDLE

$7.49

$

Usually ships in 2-4 days

0

98

Echo 90016705020

H.S.H. BOLT 5×20
(Superseded to 90016205020)

$1.49

$

In Stock, Qty 20+

0

100

Echo 89561040130

L-WRENCH 4

$

$

Currently unavailable

101

Echo 89581203930

SCREWDRIVER, PHILLIPS

$4.99

$

In Stock, only 1 left!

0

102

Echo 89541042830

WRENCH W/S, DRIVER

$

$

Currently unavailable

109

Echo 35183316030

RETAINER

$5.99

$

Usually ships in 2-4 days

0

111

Echo 900162-05040

BOLT 5×40

$1.99

$

In Stock, only 1 left!

0

112

Echo 35184016030

STOPPER

$3.49

$

Usually ships in 2-4 days

0

113

Echo 35182616030

GUARD
(Superseded to Discontinued)

$

$

Not available

114

Echo 10061216030

COVER

$2.99

$

In Stock, only 2 left!

0

115

Echo 43724016030

CONNECTOR
(Superseded to 43720116030)

$45.99

$

Usually ships in 2-4 days

0

116

Echo 43720616030

PIPE, OIL

$16.99

$

Usually ships in 2-4 days

0

120

Echo 43722816031

PIPE, OIL

$2.99

$

Usually ships in 2-4 days

0

122

UNKNOWN

$

$

Not available

Echo 43710016030

OIL PUMP ASSY
(Superseded to 43710016031)

Note: Consists of 117 thru 127 except 120.

$67.99

$

Usually ships in 2-4 days

0

117

Echo 43705200330

CONNECTOR
(Superseded to Discontinued)

$

$

Not available

118

Echo 43701300330

SPRING, VALVE
(Superseded to V450000290)

$1.49

$

In Stock, Qty 5

0

119

Echo 43701200330

VALVE, BALL

$0.99

$

In Stock, Qty 5

0

121

Echo 43701700330

CONNECTOR

$

$

Not available

121

Echo 13131000230

PACKING

$0.99

$

Usually ships in 2-4 days

0

123

Echo 43711116030

PUMP SPRING

$

$

Not available

124

Echo 90072000005

O-RING
(Superseded to Discontinued)

$

$

Not available

125

UNKNOWN

$

$

Not available

126

Echo 43710116030

PUMP PISTON
(Superseded to Discontinued)

$

$

Not available

127

Echo 43711916030

BUTTON

$

$

Not available

164

Echo 90024103008

SCREW 3×8

$0.99

$

Usually ships in 2-4 days

0

165

Echo 43730616031

CONNECTOR
(Superseded to 43730616032)

$4.99

$

In Stock, only 1 left!

0
