CSV 050 (24A-05MM010) - Cub Cadet Chipper/Shredder/Vacuum (2012) 1P70C0A-11 Carburetor Parts Diagram

Chipper/Shredder/Vacuum

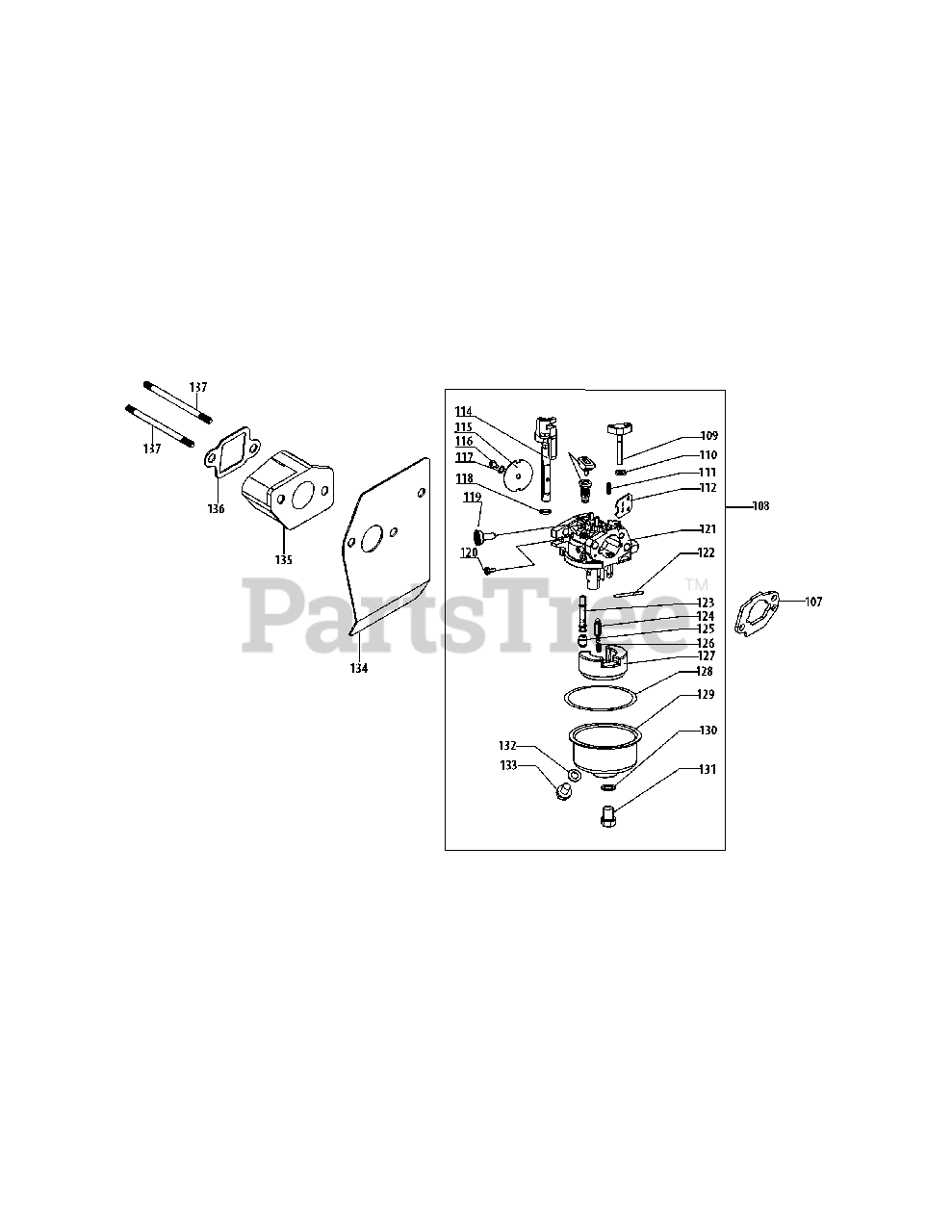

1P70C0A-11 Carburetor Parts Diagram

  • Title

107

Cub Cadet 951-11525

Carburetor Gasket Plate

$5.49

$

In Stock, Qty 10

0

108

Cub Cadet 951-10929

Carburetor Assembly

$102.99

$

In Stock, only 1 left!

0

109

Cub Cadet n/a

Choke Shaft

$

$

Currently unavailable

110

Cub Cadet n/a

Fiber O-Ring

$

$

Currently unavailable

111

Cub Cadet n/a

Choke Plate

$

$

Currently unavailable

112

Cub Cadet n/a

Choke Detent Spring

$

$

Currently unavailable

113

Cub Cadet n/a

Idle Jet Assembly

$

$

Currently unavailable

114

Cub Cadet n/a

Throttle Shaft

$

$

Currently unavailable

115

Cub Cadet n/a

Throttle Plate

$

$

Currently unavailable

116

Cub Cadet n/a

Screw M3X6 Throttle Plate

$

$

Currently unavailable

117

Cub Cadet n/a

Lock Washer

$

$

Currently unavailable

118

Cub Cadet n/a

Fiber O-Ring

$

$

Currently unavailable

119

Cub Cadet n/a

Idle Speed Adjusting Screw

$

$

Currently unavailable

120

Cub Cadet n/a

Idle Mixture Screw

$

$

Currently unavailable

121

Cub Cadet n/a

Carburetor Body

$

$

Currently unavailable

122

Cub Cadet n/a

Float Pin

$

$

Currently unavailable

123

Cub Cadet n/a

Emulsion Tube

$

$

Currently unavailable

124

Cub Cadet n/a

Needle Valve

$

$

Currently unavailable

125

Cub Cadet n/a

Main Jet

$

$

Currently unavailable

126

Cub Cadet n/a

Needle Valve Spring

$

$

Currently unavailable

127

Cub Cadet n/a

Float

$

$

Currently unavailable

128

Cub Cadet 951-11589

Fuel Bowl O-Ring
(Superseded to 951-11589A)

$7.49

$

In Stock, Qty 20+

0

129

Cub Cadet n/a

Fuel Bowl

$

$

Currently unavailable

130

Cub Cadet 951-11348

Fuel Bowl Gasket
(Superseded to 951-11348A)

$6.49

$

In Stock, Qty 20+

0

131

Cub Cadet 710-04945

Fuel Bowl Mounting Bolt

$4.49

$

In Stock, only 4 left!

0

132

Cub Cadet 951-11349

Fuel Drain Plug Gasket
(Superseded to 951-11349A)

$4.49

$

In Stock, Qty 20+

0

133

Cub Cadet 710-04938

Fuel Drain Plug

$4.49

$

In Stock, Qty 5

0

134

Cub Cadet 951-12110

Carburetor Gasket

$4.49

$

In Stock, only 2 left!

0

135

Cub Cadet 951-11255

Carburetor Insulator

$4.99

$

In Stock, only 2 left!

0

136

Cub Cadet 951-11254

Carburetor Insulator Gasket

$6.99

$

In Stock, only 4 left!

0

137

Cub Cadet 710-04981

Carb Stud M6X113

$3.99

$

Usually ships in 3-6 days

0

Cub Cadet 951-12178A

Carburetor Kit - Major

Note: (Incl.110,113,118,119,122-128,130,132) (Not shown)

$59.99

$

Usually ships in 3-6 days

0
