CSV 050 (24A-05MP710) - Cub Cadet Chipper/Shredder/Vacuum (2014) 1X65CU Crankcase Parts Diagram

Chipper/Shredder/Vacuum

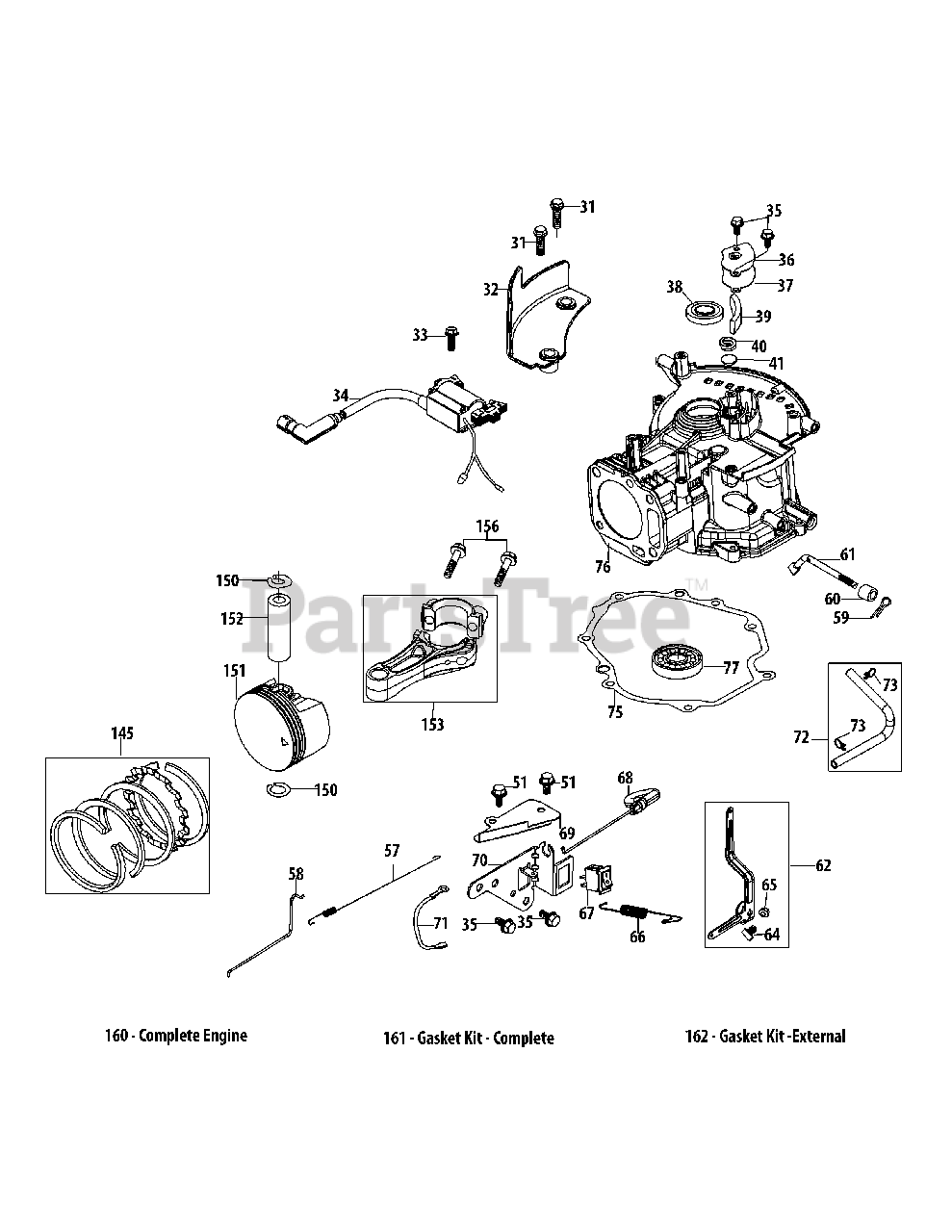

1X65CU Crankcase Parts Diagram

  • Title

31

Cub Cadet 710-04919

Bolt M6×25 Cover Plate

$4.49

$

Usually ships in 3-6 days

0

32

Cub Cadet 951-14597

Engine Brake Cover Plate

$7.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 710-04918

Bolt M6×20 Ignition Coil

$3.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 951-14598

Ignition Coil Assembly

$101.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 710-04916

Bolt M6X14 Multi-Purpose

$4.49

$

In Stock, only 2 left!

0

36

Cub Cadet 951-14404

Breather Cover Plate

$13.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 951-14405

Breather Gasket

$9.49

$

Usually ships in 3-6 days

0

38

Cub Cadet 951-11596

Upper Crankshaft Seal

$5.99

$

In Stock, only 1 left!

0

39

Cub Cadet 951-11730

Breather Screen

$5.49

$

Usually ships in 3-6 days

0

40

Cub Cadet 732-04718

Breather Valve Spring

$4.49

$

Usually ships in 3-6 days

0

41

Cub Cadet 951-11614

Breather Valve

$3.99

$

Usually ships in 3-6 days

0

51

Cub Cadet 710-04915

Bolt M6X12 Multi-Purpose

$4.49

$

In Stock, Qty 8

0

57

Cub Cadet 951-14409

Throttle Linkage Spring

$8.49

$

In Stock, Qty 11

0

58

Cub Cadet 951-14410

Throttle Linkage

$7.99

$

In Stock, only 1 left!

0

59

Cub Cadet 714-04074

Governor Arm Shaft Cotter Pin
(Superseded to 714-04078)

$3.99

$

Usually ships in 3-6 days

0

60

Cub Cadet 951-11574

Governor Seal
(Superseded to 951-11902)

$4.49

$

In Stock, only 1 left!

0

61

Cub Cadet 951-14416

Governor Arm Shaft

$11.99

$

Usually ships in 3-6 days

0

62

Cub Cadet 951-14412

Governor Arm Assembly

$7.99

$

Usually ships in 3-6 days

0

64

Cub Cadet 710-04908

Governor Arm Bolt

$5.99

$

Usually ships in 3-6 days

0

65

Cub Cadet 712-05015

Governor Arm Nut M6

$6.49

$

In Stock, only 4 left!

0

66

Cub Cadet 951-14411

Governor Spring

$8.99

$

In Stock, only 2 left!

0

67

Cub Cadet 951-14603

Ignition Switch

$10.99

$

Usually ships in 3-6 days

0

68

Cub Cadet 951-14604

Choke Control

$5.99

$

Usually ships in 3-6 days

0

69

Cub Cadet 951-14605

Air Vane Cover Plate

$5.99

$

Usually ships in 3-6 days

0

70

Cub Cadet 951-14413

Component Bracket

$13.99

$

Usually ships in 3-6 days

0

71

Cub Cadet 951-14606

Ignition Switch Ground Wire

$5.49

$

Usually ships in 3-6 days

0

72

Cub Cadet 951-11520

Breather Hose Assembly

$5.49

$

Usually ships in 3-6 days

0

73

Cub Cadet 726-04101

Breather Hose Clamp

$4.49

$

In Stock, only 1 left!

0

75

Cub Cadet 951-14415

Crankcase Cover Gasket

$13.99

$

In Stock, only 2 left!

0

76

Cub Cadet 951-14617

Short Block

Note: (Incl.35-41,59-61,75-79,83,85-88,98,99,101-104,114,117,118,134,137,140,141,143-145,150-153,156)

$321.99

$

Usually ships in 3-6 days

0

77

Cub Cadet 951-11369

Main Bearing

$32.99

$

Usually ships in 3-6 days

0

145

Cub Cadet 951-14433

Piston Ring Set
(Superseded to 951-14433A)

$36.99

$

In Stock, only 2 left!

0

150

Cub Cadet 951-11603

Piston Pin Snap Ring

$3.99

$

Usually ships in 3-6 days

0

151

Cub Cadet 951-14434

Piston
(Superseded to 951-14434A)

$60.99

$

Usually ships in 3-6 days

0

152

Cub Cadet 951-14435

Piston Pin

$11.99

$

Usually ships in 3-6 days

0

153

Cub Cadet 951-14436

Connecting Rod Assembly

$

$

Not available

156

Cub Cadet 710-05115

Connecting Rod Bolt

$4.49

$

Usually ships in 3-6 days

0

160

Cub Cadet 952Z1X65CU

Complete Engine

$601.99

$

Usually ships in 3-6 days

0

161

Cub Cadet 951-14614

Gasket Kit - Complete

Note: (Incl.37,38,60,75,83,101,104,114,116,117,118,134,137,140)

$46.99

$

Usually ships in 3-6 days

0

162

Cub Cadet 951-14615

Gasket Kit -External

Note: (Incl.37,83,101,114,116,117,118,134,137)

$32.99

$

Usually ships in 3-6 days

0
