CSV 070 (24A-07MP710) - Cub Cadet Chipper/Shredder/Vacuum (2016) Transmission Parts Diagram

Chipper/Shredder/Vacuum

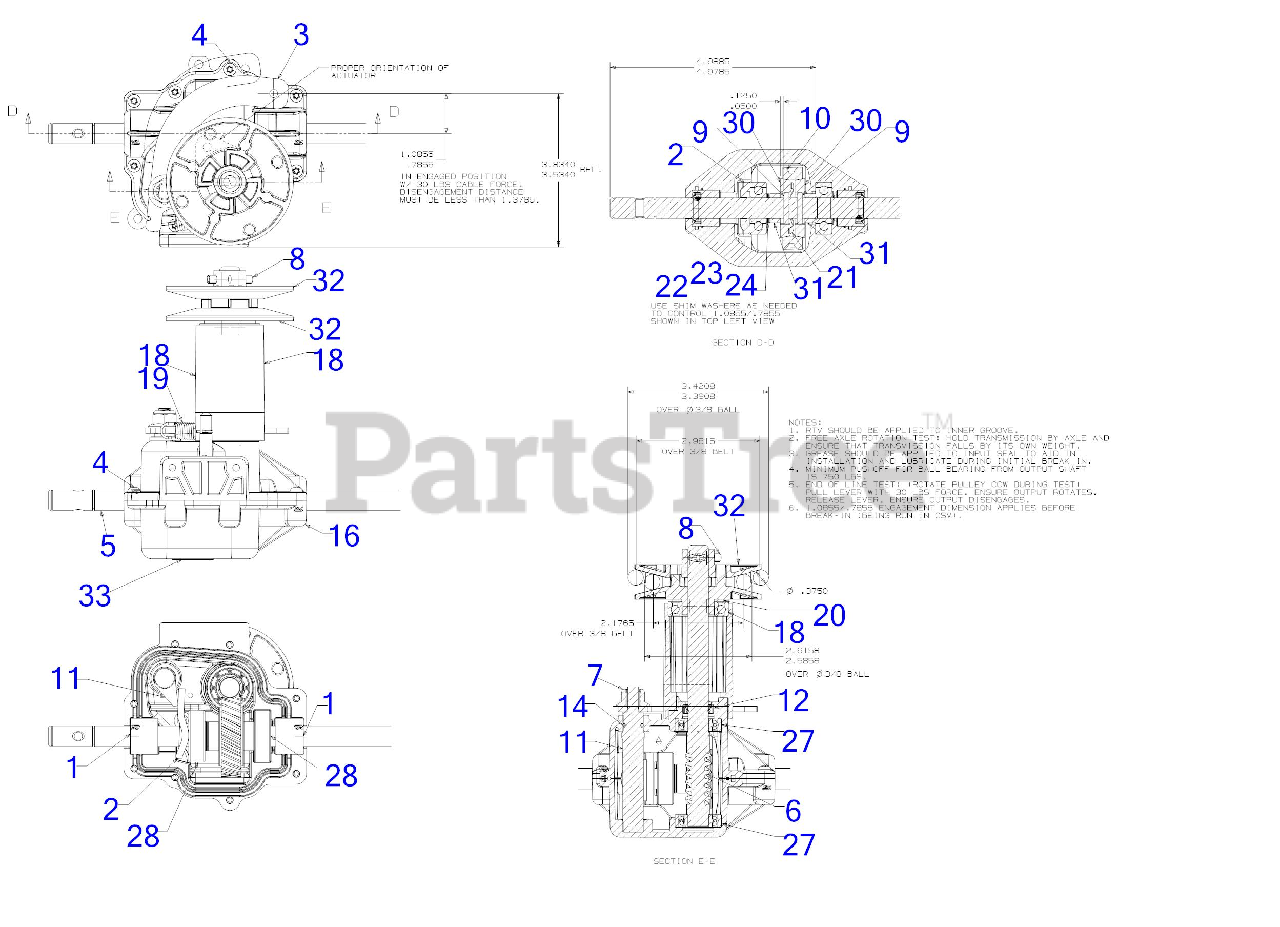

Transmission Parts Diagram

  • Title

1

BEARING ASSEMBLY

$

$

Not available

1

Cub Cadet 721-04107A

OIL SEAL

Note: (Not Shown)

$4.99

$

In Stock, only 4 left!

0

2

ACTUATOR PLATE

$

$

Not available

3

CLUTCH LEVER

$

$

Not available

4

Cub Cadet 710-04329

SCREW .159 x .610

$4.99

$

In Stock, only 1 left!

0

5

OUTPUT SHAFT

$

$

Not available

6

INPUT SHAFT

$

$

Not available

7

Cub Cadet 712-04065

NUT

$4.49

$

In Stock, Qty 13

0

8

Cub Cadet 715-0150

ROLL PIN

$4.49

$

In Stock, Qty 7

0

9

DOWEL PIN

$

$

Not available

10

28T GEAR

$

$

Not available

11

ACTUATOR

$

$

Not available

12

Cub Cadet 721-04107A

OIL SEAL

$4.99

$

In Stock, only 4 left!

0

14

O-RING

$

$

Not available

16

LOWER HOUSING

$

$

Not available

16

UPPER HOUSING

Note: (Not Shown)

$

$

Not available

18

CAM TUBE

$

$

Not available

19

Cub Cadet 732-04313

EXTENSION SPRING

$4.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 936-0287

FLAT WASHER .793ID x 1.24OD x .060
(Superseded to 736-0287)

$

$

Not available

21

WASHER

$

$

Not available

22

Cub Cadet 736-04202

FLAT WASHER .504 X.700X.010

$3.99

$

Usually ships in 3-6 days

0

23

WASHER

$

$

Not available

24

Cub Cadet 936-0520

FLAT WASHER

$6.49

$

Usually ships in 3-6 days

0

27

Cub Cadet 741-04116

BALL BEARING

$8.49

$

Usually ships in 3-6 days

0

28

BEARING

$

$

Not available

30

HUB

$

$

Not available

31

SPACER

$

$

Not available

32

Cub Cadet 756-04262

HALF PULLEY

$32.99

$

Usually ships in 3-6 days

0

33

LABEL

$

$

Not available

Cub Cadet 918-04460

TRANSMISSION ASSEMBLY

$294.99

$

Usually ships in 3-6 days

0
