CSV 070 (24A-07MP710) - Cub Cadet Chipper/Shredder/Vacuum (2018) Flail Housing Parts Diagram

Chipper/Shredder/Vacuum

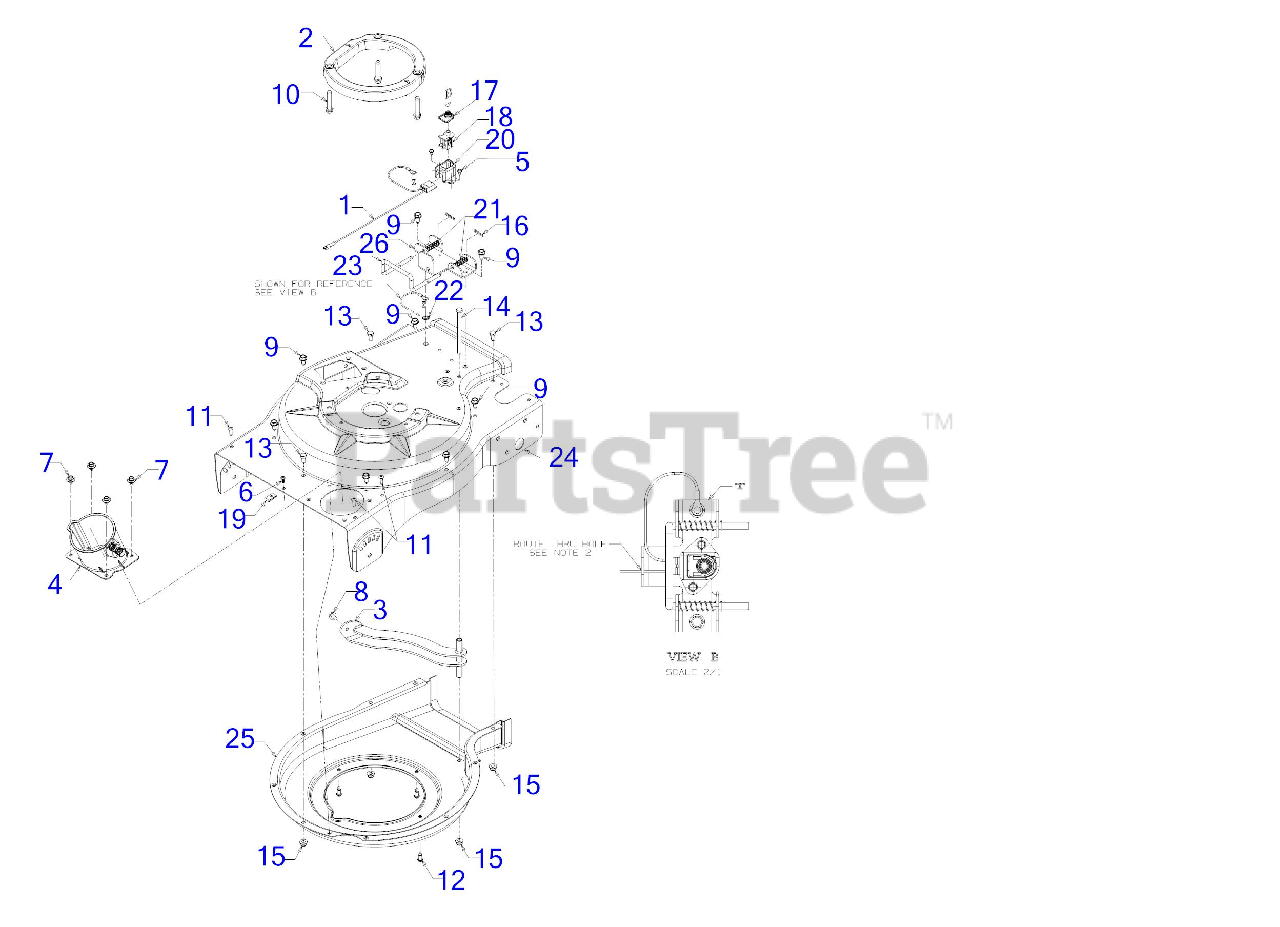

Flail Housing Parts Diagram

  • Title

1

Cub Cadet 629-0920A

WIRE HARNESS ASSEMBLY

$44.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 631-04118

ENGINE SPACER ASSEMBLY

$41.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 681-0154-0637

SCREEN ASSEMBLY

$51.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 681-0195

HOSE ADAPTER BASE ASSEMBLY

$43.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 681-0195

BASE ASSEMBLY

Note: (Not Shown)

$43.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 932-3035

COMPRESSION SPRING

Note: (Not Shown)

$11.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 711-1571

CLEVIS PIN 1/2 x 5/8

Note: (Not Shown)

$9.49

$

Usually ships in 3-6 days

0

4

Cub Cadet 916-0104

E-RING FOR .500

Note: (Not Shown)

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 910-0224

HEX SCREW AB-TAP #10-16 x 0.500

$3.99

$

In Stock, Qty 14

0

6

Cub Cadet 710-0351

SCREW #10-16 x 0.500

$4.99

$

In Stock, Qty 20+

0

7

Cub Cadet 710-05073

SCREW 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-0607

SCREW 5/16-18 x .500

$6.99

$

In Stock, Qty 20+

0

9

Cub Cadet 710-0726

SCREW 5/16-12 x .750

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 710-1008

SCREW 3/8-16 x 1.875

$5.99

$

In Stock, Qty 13

0

11

Cub Cadet 710-1220

SCREW #12-16 x .750

$4.99

$

In Stock, only 4 left!

0

12

Cub Cadet 710-1650

SCREW .30 x .46

$4.99

$

In Stock, Qty 20+

0

13

Cub Cadet 710-3025

SCREW 5/16-18X .625 GR5

$4.49

$

In Stock, Qty 7

0

14

Cub Cadet 710-3195

SCREW 5/16-18 x 4.5 GR5

$7.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 914-0104

COTTER PIN .072 DIA
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 16

0

17

Cub Cadet 925-1700

SWITCH COVER

$12.99

$

In Stock, only 2 left!

0

18

Cub Cadet 925-3166

SNAP MOUNT SWITCH

$17.99

$

In Stock, Qty 20+

0

19

Cub Cadet 726-0139

U-TYPE SPEED NUT

$7.49

$

In Stock, only 2 left!

0

20

Cub Cadet 931-1613

SWITCH COVER

$11.99

$

In Stock, only 2 left!

0

21

Cub Cadet 732-0962

COMPRESSION SPRING

$4.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 736-0607

WASHER

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 747-1153

LOCK ROD

$17.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 781-04266

UPPER FLAIL HOUSING

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 781-04266-0638

HOUSING-FLAIL UPPER CS - MTD/TROY-BILT RED (0638)

$205.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-04266-0721

USE 781-04266-4044 HOUSING-FL - SEARS RED (0721)

$205.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-04266-4021

HOUSING-FLAIL UPR CSV - CUB YELLOW 2 (4021)

$205.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-04266-4044

HOUSING-FLAIL UPPER CS - CRAFTSMAN RED (4044)

$205.99

$

Usually ships in 3-6 days

0

$179.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 781-0721B

LOWER FLAIL HOUSING

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 781-0721B-0498

HOUSING-FLAIL LWR - OLD CUB YELLOW (0498)

$166.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0721B-0638

HOUSING-FLAIL LWR - MTD/TROY-BILT RED (0638)

$166.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0721B-0662

HOUSING-FLAIL LWR - OYSTER GRAY (0662)

$166.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0721B-0665

HOUSING-FLAIL LWR - YARDMAN GREEN (0665)

$166.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0721B-0689

HOUSING-FLAIL LWR - POLO GREEN (0689)

$166.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0721B-0691

HOUSING-FLAIL LWR - BLACK JACK (0691)

$166.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0721B-0709

HOUSING-FLAIL LWR - MASTERCRAFT GREEN (0709)

$166.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0721B-0716

HOUSING-FLAIL LWR - CUB YELLOW-99 (0716)

$145.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0721B-0721

USE 781-0721B-4044 HOUSING-FL - SEARS RED (0721)

$166.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0721B-4021

HOUSING-FLAIL LWR - CUB YELLOW 2 (4021)

$166.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0721B-4044

HOUSING-FLAIL LWR - CRAFTSMAN RED (4044)

$166.99

$

Usually ships in 3-6 days

0

$145.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 781-0778A-0637

MOUNTING BRACKET

$18.99

$

Usually ships in 3-6 days

0
