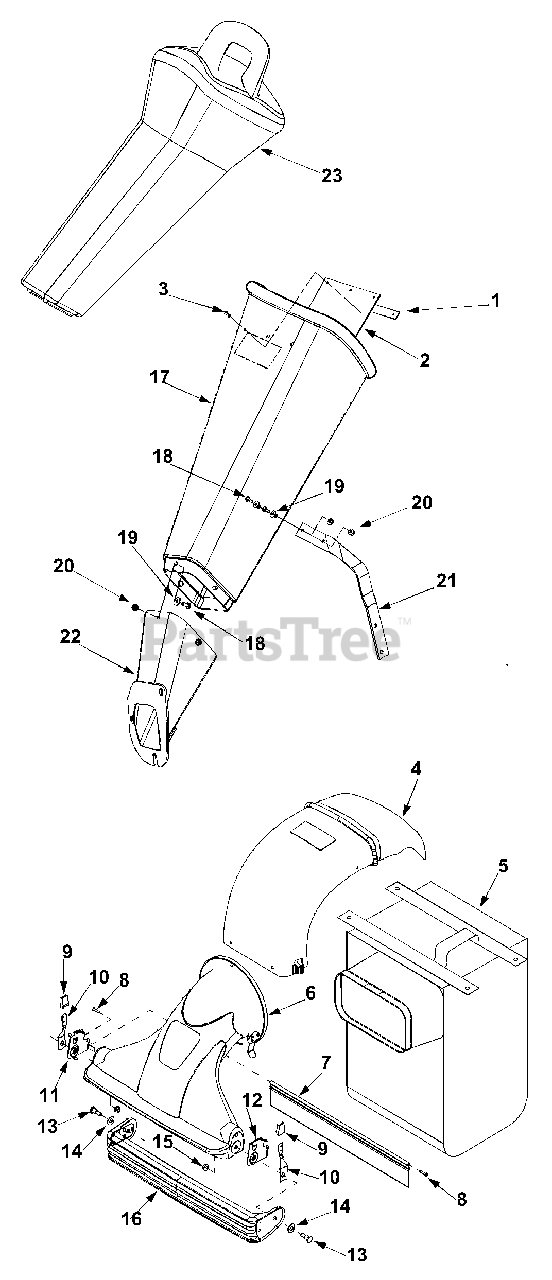

CSV 206 (24A-204B063) - Troy-Bilt Chipper Shredder Vac (2004) Bag & Chute Parts Diagram

Chipper Shredder Vac

Bag & Chute Parts Diagram

  • Title

1

Troy-Bilt 781-0633

Chute Flap Strip

$9.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 735-0249

Chute Flap
(Superseded to 735-0249A)

$23.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 728-0175

Pop Rivet

$4.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 731-1838A

Discharge Chute

$180.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 764-04001

Bag
(Superseded to 964-04001)

$208.99

$

In Stock, only 1 left!

0

6

Troy-Bilt 631-0086

Nozzle Assembly

$249.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 731-1831

Nozzle Flap

$18.99

$

In Stock, only 1 left!

0

8

Troy-Bilt 710-0969

Screw

$4.49

$

In Stock, only 3 left!

0

9

Troy-Bilt 720-0190

Height Adjustment Knob
(Superseded to 731-13116-1)

$12.99

$

In Stock, only 3 left!

0

10

Troy-Bilt 732-0754

Spring Lever

$9.49

$

Usually ships in 3-6 days

0

11

Troy-Bilt 781-0702

Index Bracket RH
(Superseded to 781-0702-0637)

Variations

Troy-Bilt 781-0702-0637

Index Door Bracket, RH - POWDER BLACK (0637)

$22.99

$

In Stock, only 1 left!

0

$22.99

$

In Stock, only 1 left!

0

12

Troy-Bilt 781-0703

Index Bracket LH
(Superseded to 781-0703-0637)

Variations

Troy-Bilt 781-0703-0637

Index Door Bracket, LH - POWDER BLACK (0637)

$22.99

$

In Stock, only 1 left!

0

$22.99

$

In Stock, only 1 left!

0

13

Troy-Bilt 738-0913

Shoulder Screw

$11.99

$

In Stock, only 2 left!

0

14

Troy-Bilt 736-3084

Flat Washer .510 x 1.12 x .060

$4.49

$

In Stock, Qty 20+

0

15

Troy-Bilt 712-0431

Hex Flange Lock Nut 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

16

Troy-Bilt 631-0049

Door Assembly

$

$

Not available

17

Troy-Bilt 731-1574A

Chipper Chute

$188.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 710-0751

Hex Cap Screw 1/4-20 x .620

$3.99

$

In Stock, Qty 20+

0

19

Troy-Bilt 736-0173

Flat Washer .28 ID x .74 OD

$3.99

$

In Stock, Qty 10

0

20

Troy-Bilt 712-3027

Hex Lock Nut 1/4-20
(Superseded to 912-3027)

$3.99

$

In Stock, Qty 20+

0

21

Troy-Bilt 781-0780

Support Bracket
(Superseded to 781-0780-0637)

Variations

Troy-Bilt 781-0780-0637

Chute Bracket - POWDER BLACK (0637)

$11.99

$

Usually ships in 3-6 days

0

$11.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 681-0068A

Chipper Chute Assembly

Variations

Troy-Bilt 681-0068A-0483

ASM-CHUTE - CHARCOAL GRAY (0483)

$165.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0068A-0638

ASM-CHUTE - MTD/TROY-BILT RED (0638)

$165.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0068A-0498

CHUTE ASM-CHIPPER - OLD CUB YELLOW (0498)

$165.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0068A-0650

ASM-CHUTE - RED METALLIC (0650)

$165.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0068A-0662

ASM-CHUTE - OYSTER GRAY (0662)

$165.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0068A-0674

ASM-CHUTE - YARDMAN YELLOW (0674)

$165.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0068A-0689

ASM-CHUTE - POLO GREEN (0689)

$165.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0068A-0691

ASM-CHUTE - BLACK JACK (0691)

$165.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0068A-0709

ASM-CHUTE - MASTERCRAFT GREEN (0709)

$165.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0068A-0716

CHUTE ASM-CHIPPER - CUB YELLOW-99 (0716)

$165.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0068A-0721

CHUTE ASM-CHIPPER - SEARS RED (0721)

$165.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0068A-4044

CHUTE ASM-CHIPPER - CRAFTSMAN RED (4044)

$165.99

$

Usually ships in 3-6 days

0

$165.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 731-1617

Tamper Plug

$130.99

$

Usually ships in 3-6 days

0

Troy-Bilt 777D06245

Label- Troy Bilt Chipper Shredder

$

$

Not available

MTD 777D06513

Label- 6.5 Eng

$

$

Not available

MTD 777D06541

Label- Chipper Shredder Vac

$

$

Not available

Troy-Bilt 777I20071

Label- Chipper Shredder SP

$12.99

$

Usually ships in 3-6 days

0

Troy-Bilt 777I20123

Label- Castor Wheel Lock

$2.99

$

Usually ships in 3-6 days

0

MTD 777S30041

Label- Warning / Avoid Injury

$

$

Not available

Troy-Bilt 777S30131

Label- Caution Do Not Operate

$

$

Not available

Troy-Bilt 777S30181

Label- C/S/V Top Chute Danger

$9.49

$

Usually ships in 3-6 days

0

Troy-Bilt 777S30183

Label- Flail Housing Warning

$

$

Not available
