CSV 206 (24A-204B063) - Troy-Bilt Chipper Shredder Vac (2004) Drive Parts Diagram

Chipper Shredder Vac

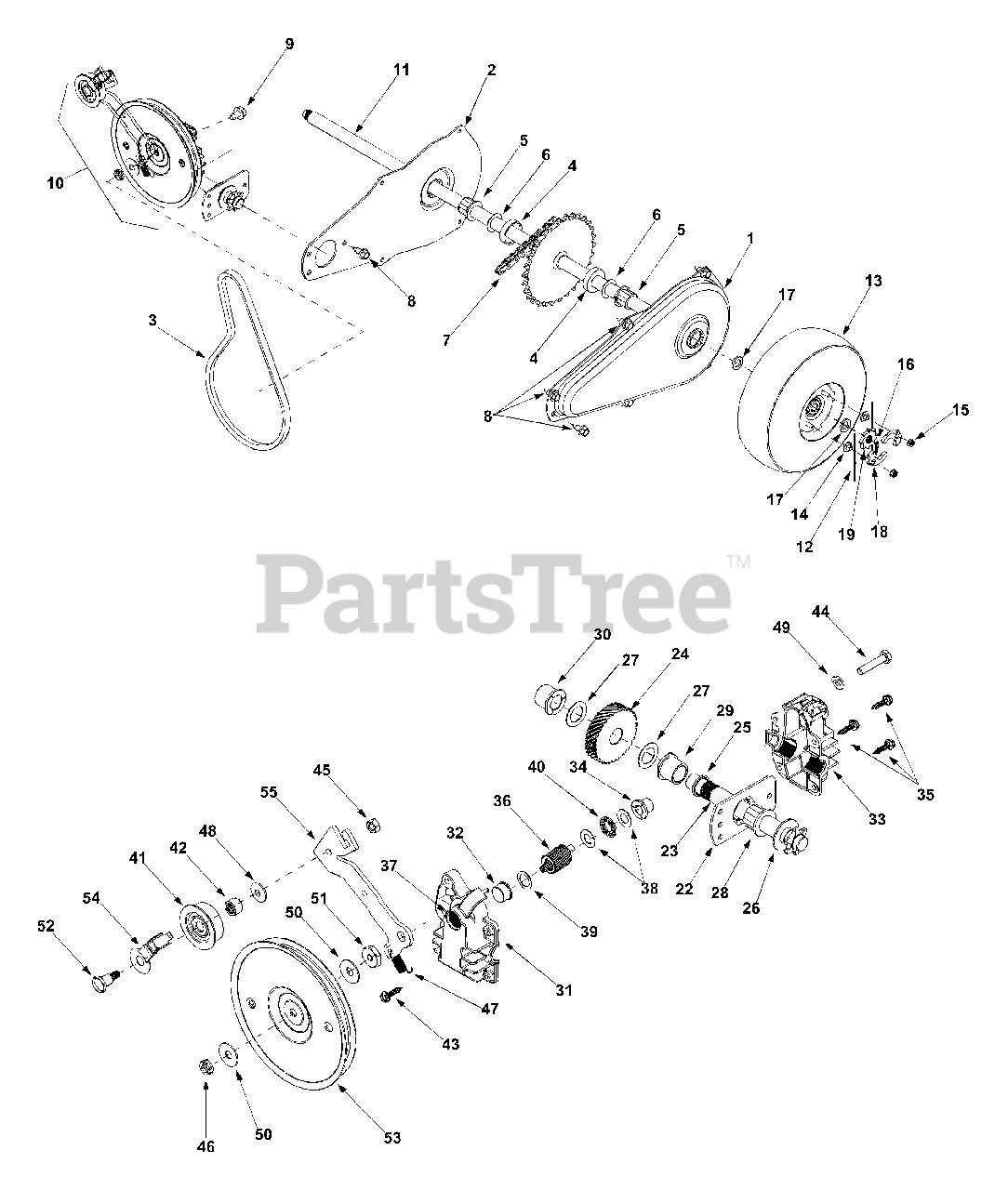

Drive Parts Diagram

  • Title

1

Troy-Bilt 781-0677

Chain Case LH

Variations

Troy-Bilt 781-0677-0637

CASE CHAIN LH - POWDER BLACK (0637)

$47.99

$

Usually ships in 3-6 days

0

Troy-Bilt 781-0677-0665

CASE CHAIN LH - YARDMAN GREEN (0665)

$47.99

$

Usually ships in 3-6 days

0

$41.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 781-0676

Chain Case RH

Variations

Troy-Bilt 781-0676-0637

CASE CHAIN RH - POWDER BLACK (0637)

$77.99

$

Usually ships in 3-6 days

0

Troy-Bilt 781-0676-0665

CASE CHAIN RH - YARDMAN GREEN (0665)

$77.99

$

Usually ships in 3-6 days

0

$67.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 754-0457

V-Belt
(Superseded to 954-0457)

$23.99

$

In Stock, only 1 left!

0

4

Troy-Bilt 748-0313

Spacer

$3.49

$

Usually ships in 3-6 days

0

5

Troy-Bilt 741-0413

Hex Flange Bearing

$8.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 736-0336

Flat Washer
(Superseded to 936-0336)

$4.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 713-0422

Chain
(Superseded to 913-0422)

$30.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 710-1652

TT Screw 1/4-20 x 0.625"

$3.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 710-0603

Hex Washer Screw 5/16

$4.49

$

Usually ships in 3-6 days

0

10

Troy-Bilt 618-0256

Transmission Assembly

$431.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 611-0063

Axle Assembly

$128.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 10622B

Plastic Spring Ratchet

$4.49

$

In Stock, Qty 20+

0

13

Troy-Bilt 634-0244

Wheel Complete 10 x 4 x 4

$128.99

$

In Stock, only 1 left!

0

14

Troy-Bilt 712-0456

Hex Nut 1/4-20

$10.99

$

In Stock, only 2 left!

0

15

Troy-Bilt 712-3027

Hex Flanged Lock Nut 1/4-20
(Superseded to 912-3027)

$3.99

$

In Stock, Qty 20+

0

16

Troy-Bilt 714-0104

Cotter Pin

$3.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 736-0366

Flat Washer 5/8 ID x 1.0 OD

$4.49

$

In Stock, Qty 14

0

18

Troy-Bilt 748-0188B

Pawl LH .345 ID
(Superseded to 948-0188B)

$10.99

$

In Stock, Qty 18

0

Troy-Bilt 748-0381

Pawl RH .345 ID

$11.99

$

In Stock, Qty 12

0

19

Troy-Bilt 748-0405

Wheel Ratchet 1.62 OD x .5 serr

$10.99

$

In Stock, only 2 left!

0

21

Troy-Bilt 618-0255

Transmission Assembly: Complete
(Superseded to 918-0255)

$727.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 16500A

Hex Bearing Cup
(Superseded to 16500A-0637)

Variations

Troy-Bilt 16500A-0637

BEARING-CUP HEX - POWDER BLACK (0637)

$8.99

$

Usually ships in 3-6 days

0

$8.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 711-1118

Output Shaft 6T Sprocket
(Superseded to 911-1118)

$32.99

$

Usually ships in 3-6 days

0

24

Troy-Bilt 717-1432

Helical 34T Gear

$58.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 721-0213

Oil Seal

$9.99

$

In Stock, Qty 9

0

26

Troy-Bilt 736-0187

Flat Washer .64 ID x 1.24 OD

$4.49

$

In Stock, Qty 20+

0

27

Troy-Bilt 736-0336

Flat Washer 5/8 x 1.0
(Superseded to 936-0336)

$4.49

$

In Stock, Qty 20+

0

28

Troy-Bilt 741-0413

Hex Flange Bearing .631 ID

$8.99

$

Usually ships in 3-6 days

0

29

Troy-Bilt 741-0414

Flange Bearing .629 ID

$9.99

$

Usually ships in 3-6 days

0

30

Troy-Bilt 741-0415

Flange Bearing .566 ID
(Superseded to 941-0415)

$9.99

$

Usually ships in 3-6 days

0

31

Troy-Bilt 719-0325

Lower Housing

$92.99

$

Usually ships in 3-6 days

0

32

Troy-Bilt 748-0373

Flange Bearing .503 ID

$3.99

$

Usually ships in 3-6 days

0

33

Troy-Bilt 719-0324A

Upper Housing

$92.99

$

Usually ships in 3-6 days

0

34

Troy-Bilt 748-0208A

Flange Bearing .378 ID

$4.49

$

Usually ships in 3-6 days

0

35

Troy-Bilt 710-0589

Hex Washer Screw #10-16 x .75

$6.49

$

Usually ships in 3-6 days

0

36

Troy-Bilt 717-1433

Pinion Shaft 10T

$37.99

$

Usually ships in 3-6 days

0

37

Troy-Bilt 721-0329

Oil Seal
(Superseded to 921-0329)

$9.49

$

Usually ships in 3-6 days

0

38

Troy-Bilt 736-0314

Thrust Washer .382 ID x .684 OD

$6.49

$

Usually ships in 3-6 days

0

39

Troy-Bilt 736-0520

Flat Washer .504 ID x .70 OD
(Superseded to 936-0520)

$5.99

$

Usually ships in 3-6 days

0

40

Troy-Bilt 741-0479

Thrust Bearing .375 ID x .812 OD

$10.99

$

Usually ships in 3-6 days

0

41

Troy-Bilt 656-0008

Pulley Assembly: Idler w/ Bearing
(Superseded to 956-0008)

$18.99

$

In Stock, only 4 left!

0

42

Troy-Bilt 741-0556

Needle Bearing .375 ID x .375 OD

$15.99

$

In Stock, only 4 left!

0

43

Troy-Bilt 710-0589

Hex Screw #10-16 x .75

$6.49

$

Usually ships in 3-6 days

0

44

Troy-Bilt 710-1062

Hex Cap Screw 1/4-20 x 1.25

$5.99

$

Usually ships in 3-6 days

0

45

Troy-Bilt 712-0138

Hex Nut 1/4-28

$6.49

$

Usually ships in 3-6 days

0

46

Troy-Bilt 712-3045

Hex Jam Nut 5/16-24 LH Thd
(Superseded to 912-3045)

$4.49

$

Usually ships in 3-6 days

0

47

Troy-Bilt 732-0357A

Extension Spring 1.12 Lg

$3.99

$

In Stock, Qty 5

0

48

Troy-Bilt 736-0270

Bell Washer .265 ID x .75 OD

$3.99

$

In Stock, Qty 13

0

49

Troy-Bilt 736-0329

Lock Washer 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

50

Troy-Bilt 736-0425

Bell Washer .325 ID x .930 OD

$4.49

$

In Stock, Qty 16

0

51

Troy-Bilt 738-0440

Shoulder Spacer .375 ID x .165 OD

$5.49

$

In Stock, Qty 6

0

52

Troy-Bilt 738-0826

Shoulder Bolt 1/4-28 x .375

$11.99

$

Usually ships in 3-6 days

0

53

Troy-Bilt 756-0656

Flat Pulley 5.06 Dia

$34.99

$

Usually ships in 3-6 days

0

54

Troy-Bilt 782-7569

Belt Keeper

$6.99

$

Usually ships in 3-6 days

0

55

Troy-Bilt 682-0054

Idler Bracket

$23.99

$

Usually ships in 3-6 days

0
